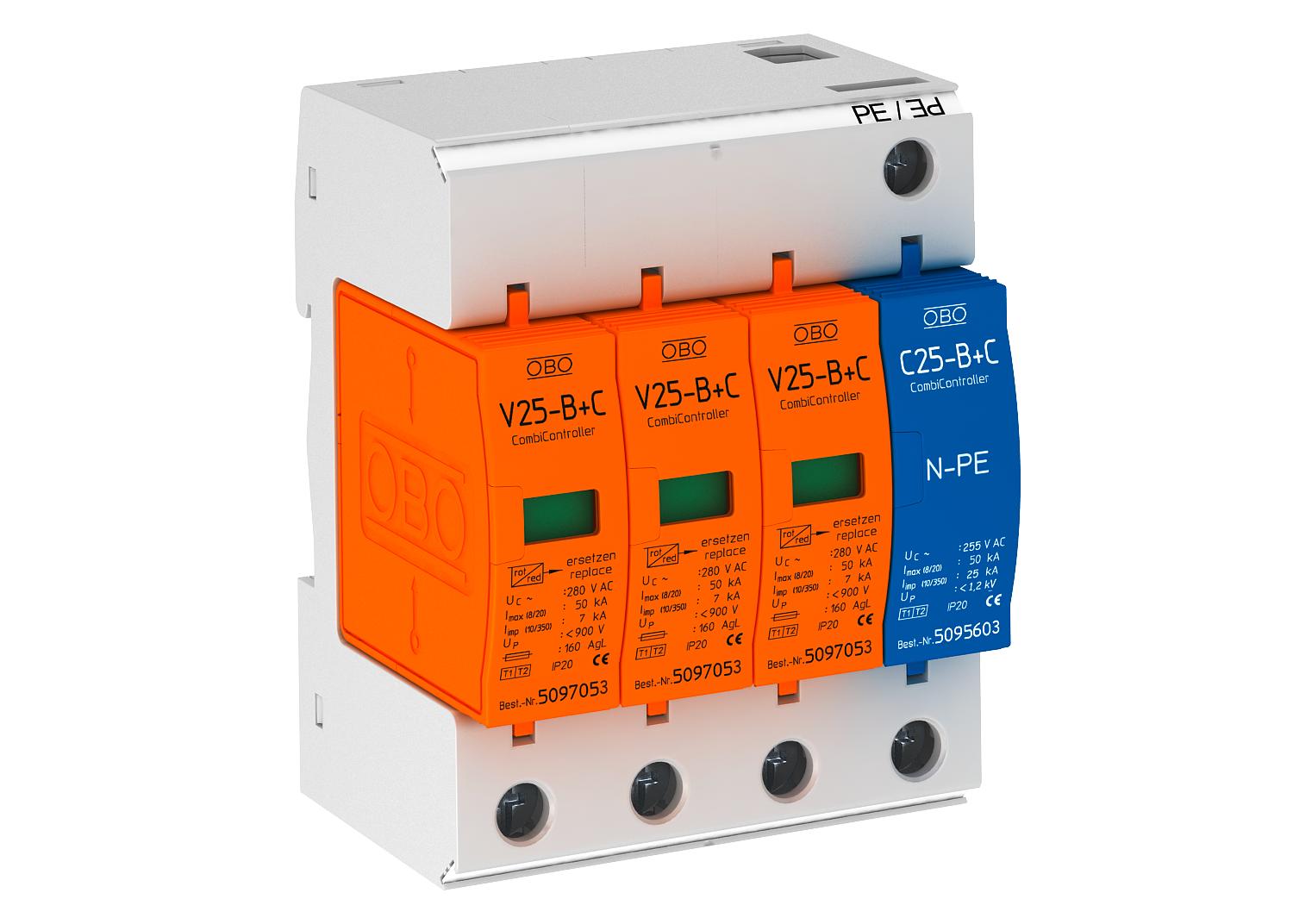

Combination arrester V25, 3-pole + NPE 280 V
Item no. 5094463 | EAN 4012195239864
- Product description
-
Product descriptionCombination arrester, lightning and surge arrester type 1+2
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Universally suitable for TN-S and TT systems
• Plug-in arrester with dynamic cut-off unit
• Visual function display
• Voltage protection level < 0.9 kV
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings
• Labelled connections
Application example: Buildings with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.
* Complete = Plug-in arrester and base
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 50 kA Blow-out no Combined voltage protection level [L-PE] 1200 kV Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 7 kA Lightning surge current (10/350) 25 kA Max. mains-side overcurrent protection 160 Maximum back-up fuse 160 A Maximum continuous voltage AC 280 V Maximum continuous voltage DC 200 V Network form Other Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 3 Pole version 3+N/PE Protection level [L-N] ≤900 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form yes TN-C-S network form yes TN-S network form yes TT network form yes Version for 3-pole complete with NPE - All types
- Downloads
-
Data sheet V25-B+C 3+NPE / 5094463 , 0.21MB , pdfEU declaration of conformity V25-B+C 3+NPE / 5094463 , 0.04MB , pdfREACH Declaration of conformity V25-B+C 3+NPE / 5094463 , 0.12MB , pdfRoHS Declaration of conformity V25-B+C 3+NPE / 5094463 , 0.12MB , pdfLabel approval EZU-Zertifikat V25 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfNo invitation to tender text is available for this product.
