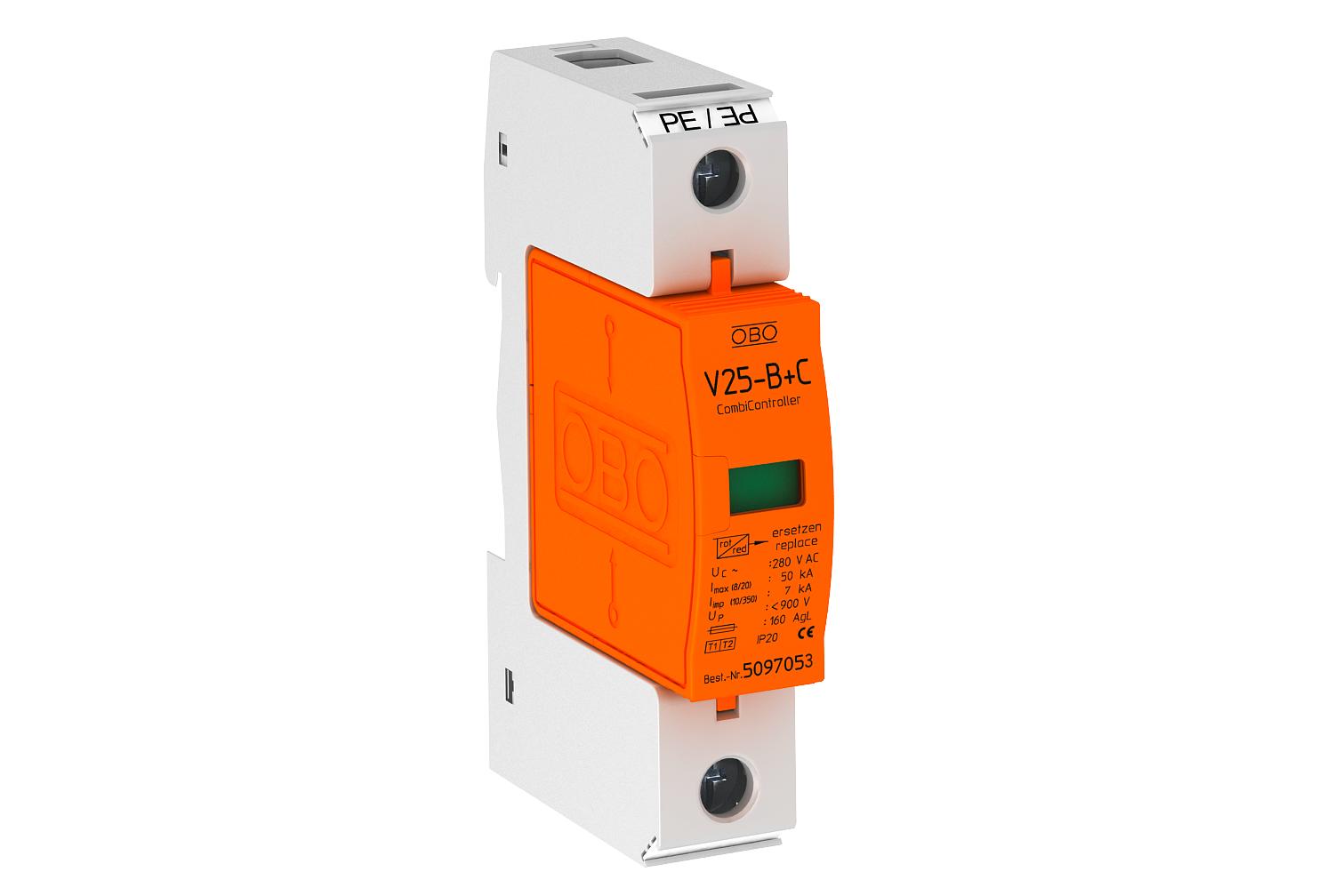

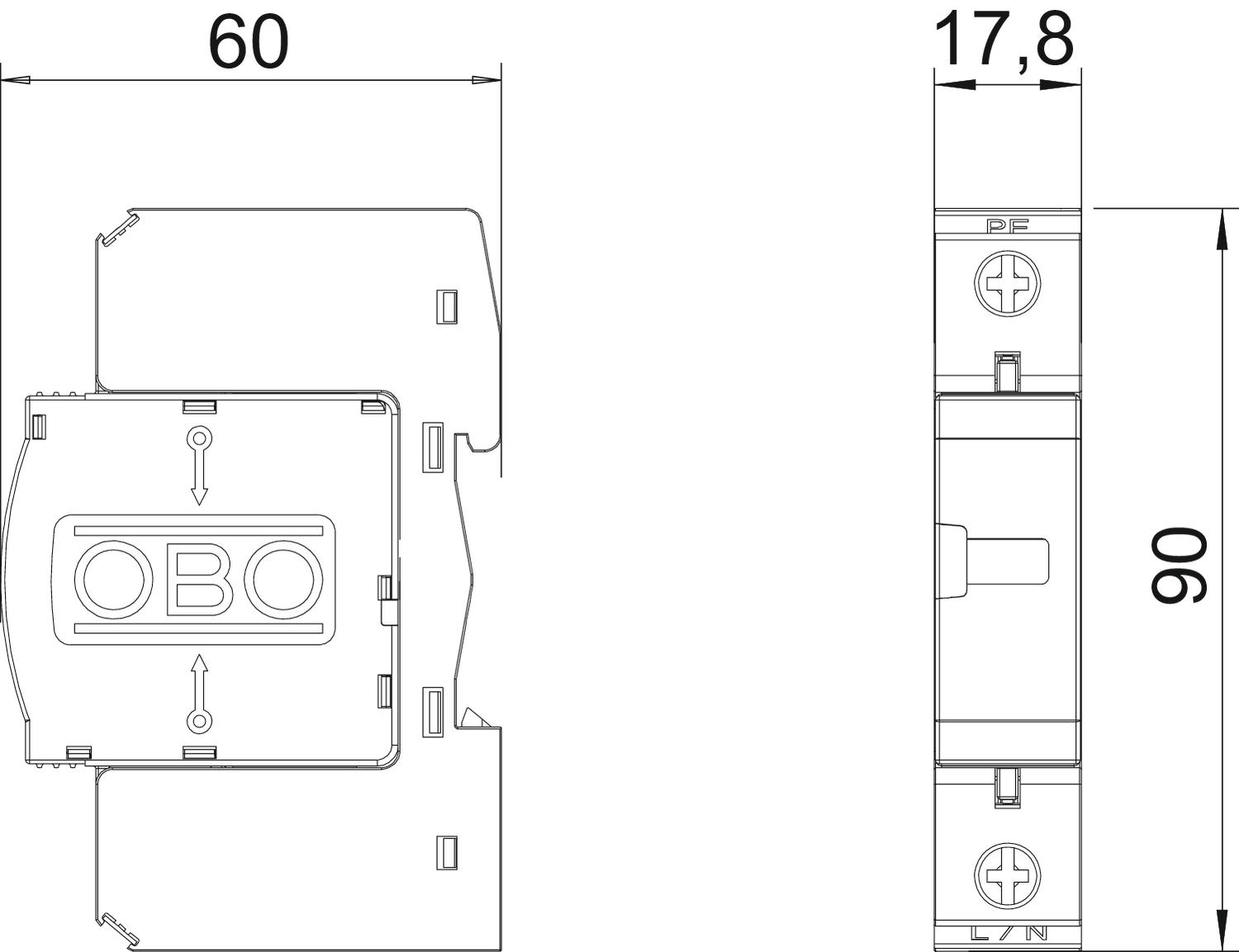

Product descriptionCombination arrester, lightning and surge arrester type 1+2
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• For TN systems
• Plug-in arrester with dynamic cut-off unit
• With visual function display
• Protection level decoded:705:Value:RAM1; kV
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings
• Labelled connections
Application example: Buildings with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.
* Complete = cover and base
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 30 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 7 kA Lightning surge current (10/350) 7 kA Max. mains-side overcurrent protection 160 Maximum back-up fuse 160 A Maximum continuous voltage AC 280 V Maximum continuous voltage DC 200 V Maximum discharge current (8/20 μs) 50 kA Network form TN Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form yes Pole number 1 Pole version 1 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Test class, type 2 yes TN network form yes TN-C network form yes TN-C-S network form yes TN-S network form yes TT network form yes Version for 1-pole - All types
