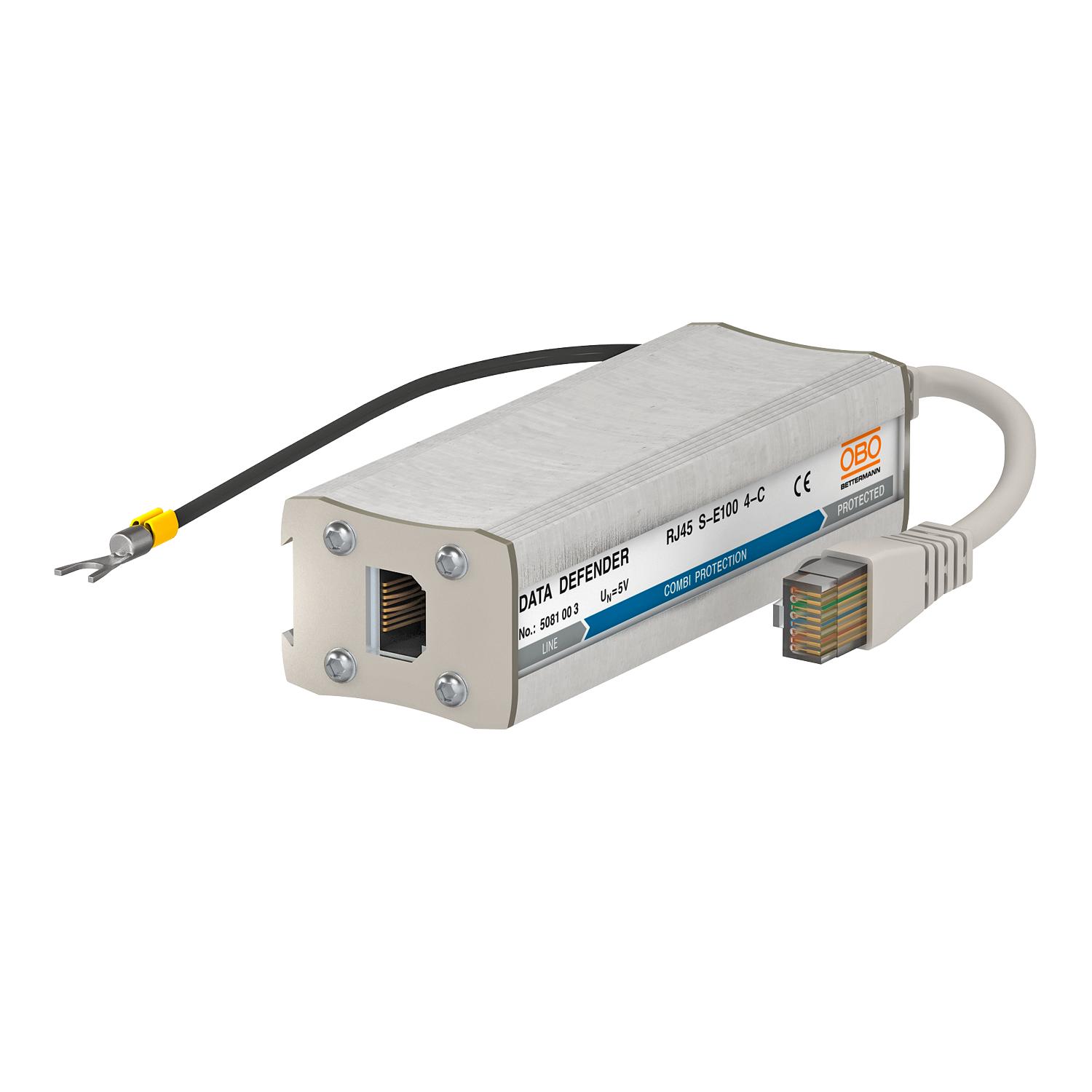

Combination arrester for 4-wire information technology systems with RJ45
Item no. 5081003 | EAN 4012196415755
- Product description
-
Product descriptionData line protection device for IT systems
• In aluminium housing
• RJ45 connector
• Incl. 150 mm connection cable with RJ45 connectors
• Simple mounting using adapter
• 2-stage protection circuit
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Twisted Pair, control circuits, RJ45 communication cables
-
- Technical data
-
Technical data

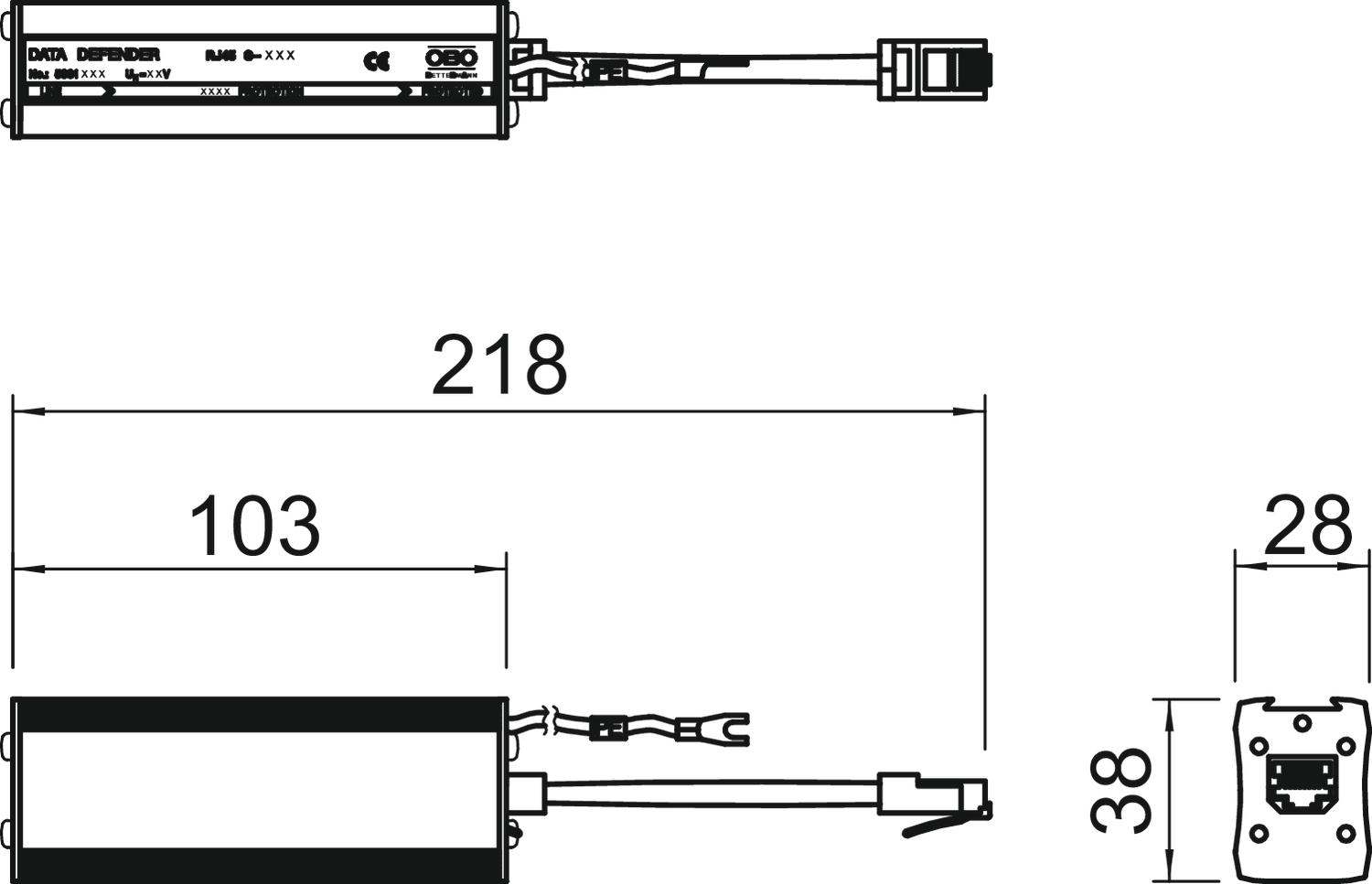

Arrestor monitoring no Capacity (wire-earth) <20 pF Capacity (wire-wire) <50 pF Channel performance Ansi/EA CAT 5e Channel performance ISO/IEC Class E Cut-off frequency 109 MHz Dimension 6.2V Earthing via: Connection cable Impulse durability wire-earth C2: 3 kV / 1,5 kA (8/20µs) Impulse durability wire-wire C2: 3 kV / 1,5 kA (8/20µs) Insertion loss ≤3 dB Insulation resistance >500 MΩ Kategorie Type 1+2+3 / D1+C2+C1 Lightning impulse current 1,5 kA Lightning protection zone LPZ 0→2 Maximum continuous voltage AC 4,2 V Maximum continuous voltage DC 6 V Nominal load current AC 0,2 A Nominal load current DC 0,3 A Number of poles 4 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system RJ45 Protection level wire-earth <850 V Protection level wire-wire <70 V Protection rating IP40 Screening Indirect Series resistance per wire 4,7 Ω ± 10% Shielding connection available yes Signalling on device Without SPD to IEC 61643-21 Class I+II+III / D1+C2+C1 Testing standard IEC 61643-21 Total discharge current (10/350) 2,5 kA Total discharge current (8/20) 7,5 kA Version for Combined protection, 4 wires + shield - All types
-
All types
- Downloads
-
Data sheet RJ45 S-E100 4-C / 5081003 , 0.21MB , pdfEU declaration of conformity RJ45 S-E100 4-C / 5081003 , 0.06MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, RJ 45 S-E 100... , 2.00MB , pdf
