CombiController V50 base

Name: CombiController V50 base
Brand: OBO Bettermann
SKU: 5096675

Item no. 5096675 | EAN 4012195425144

Product description

Product description

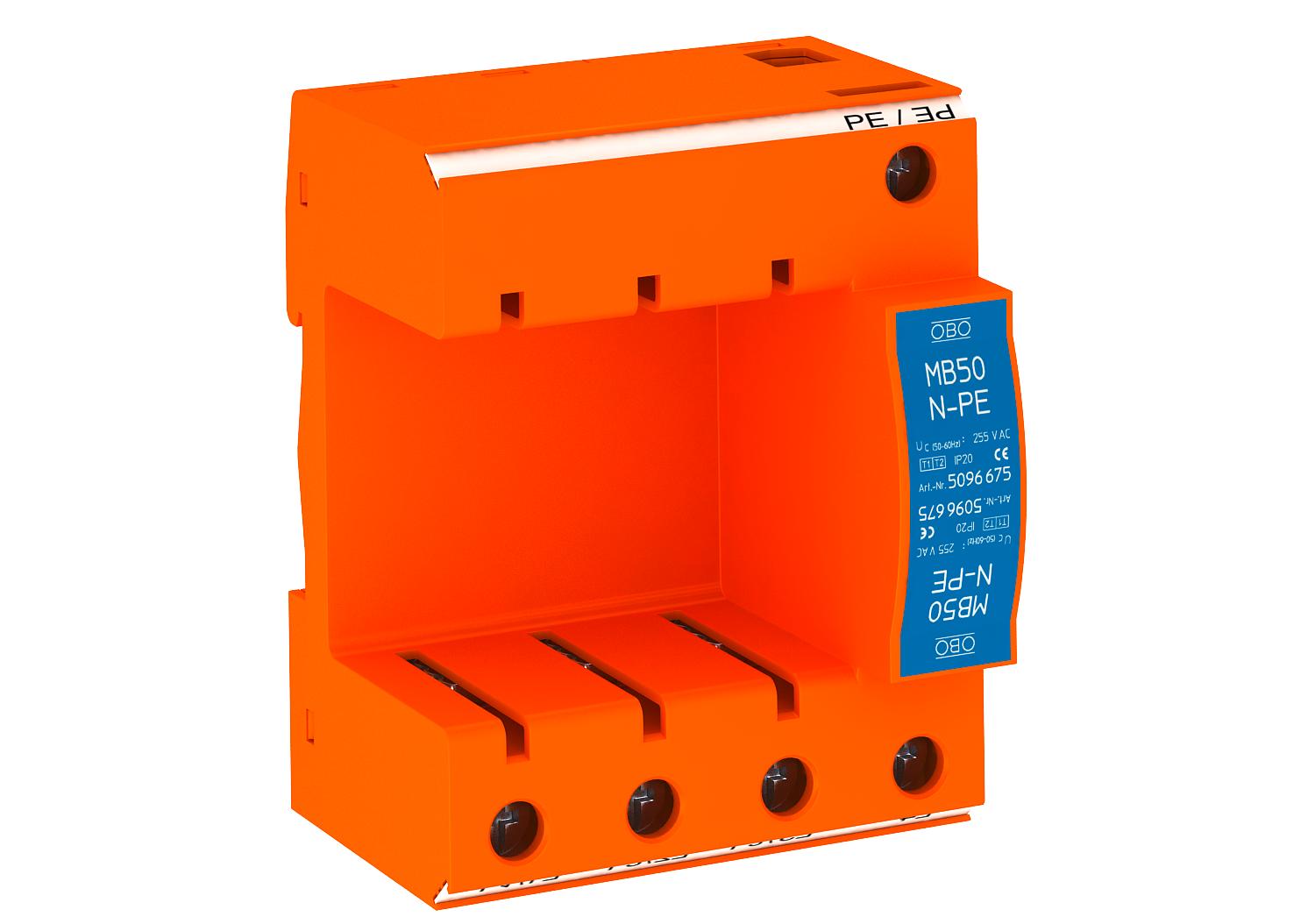

Base for V 50-B+C, combination arrester, lightning and surge arrester, type 1+2

• Suitable for V25-B+C, V20-C and V10-C
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection with series-mounted devices
• Upper parts can be rotated through 180 degrees

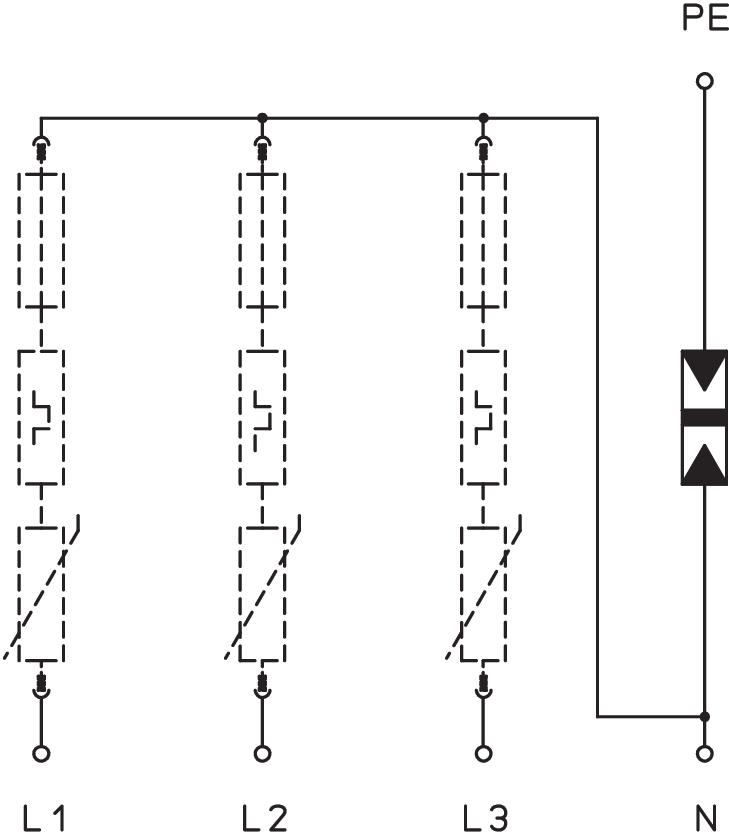

• 3+1 protection circuit for TN-S and TT network systems

Application: Lightning protection equipotential bonding in buildings, even those with external lightning protection of class III and IV, and in standard distributor housings.
Base

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	50 kA
Blow-out	no
Conductor cross-section, flexible (fine-wire), min.	25 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
DC network form	no
Dimension	3+NPE
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	0→2
Lightning surge current (10/350)	50 kA
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage (N-PE)	255 V
Maximum continuous voltage AC	280 V
Maximum discharge current (8/20 μs)	50 kA
Network form	Other
Nominal discharge current (8/20 µs) [N-PE]	50 kA

Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Pole number	3
Pole version	3+N/PE
Protection level [L-N]	≤1,3
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
TN network form	yes
TN-C network form	yes
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Version for	3+NPE base
