Coaxial protection device for SAT and cable multi-switch 5 | 130 | 185 | F

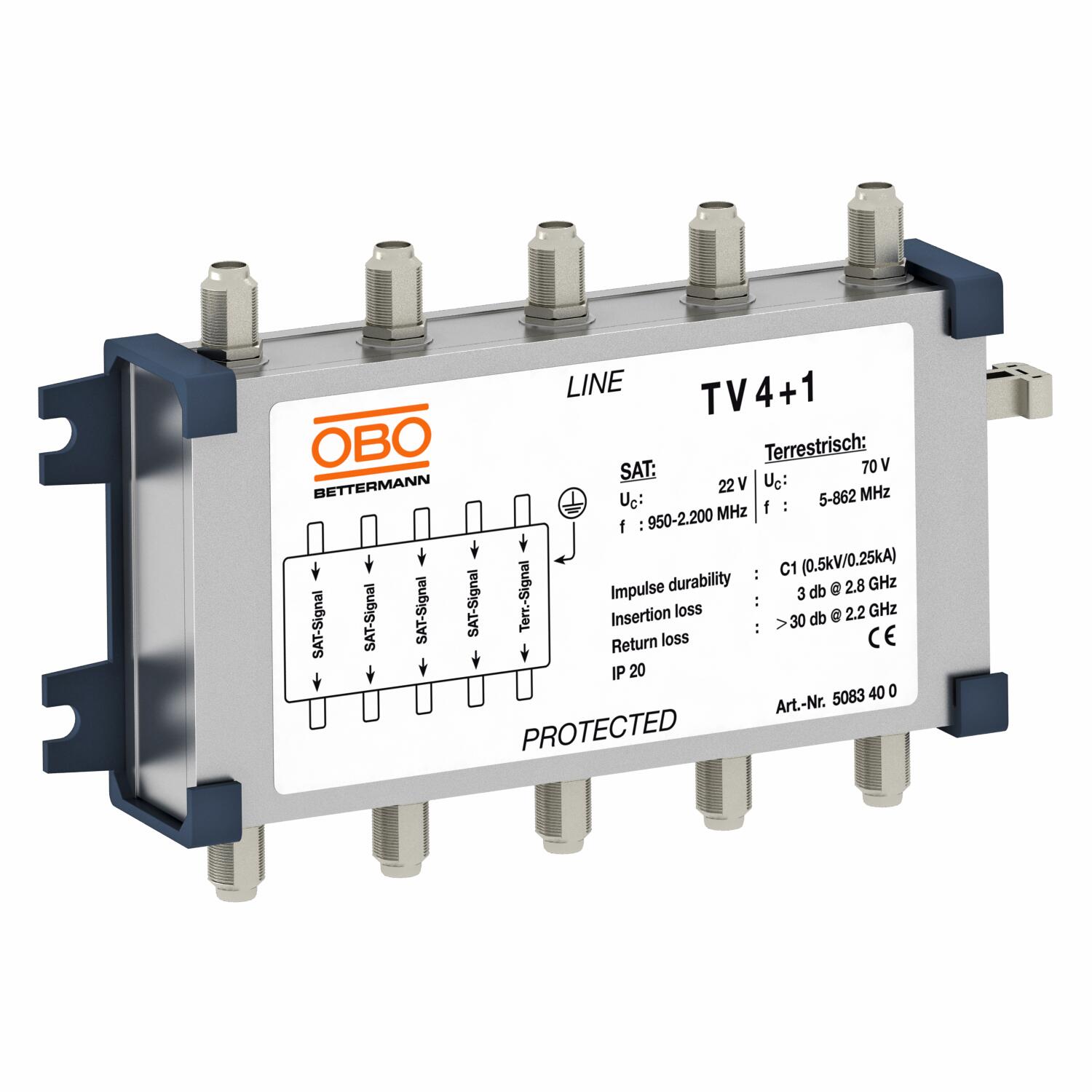

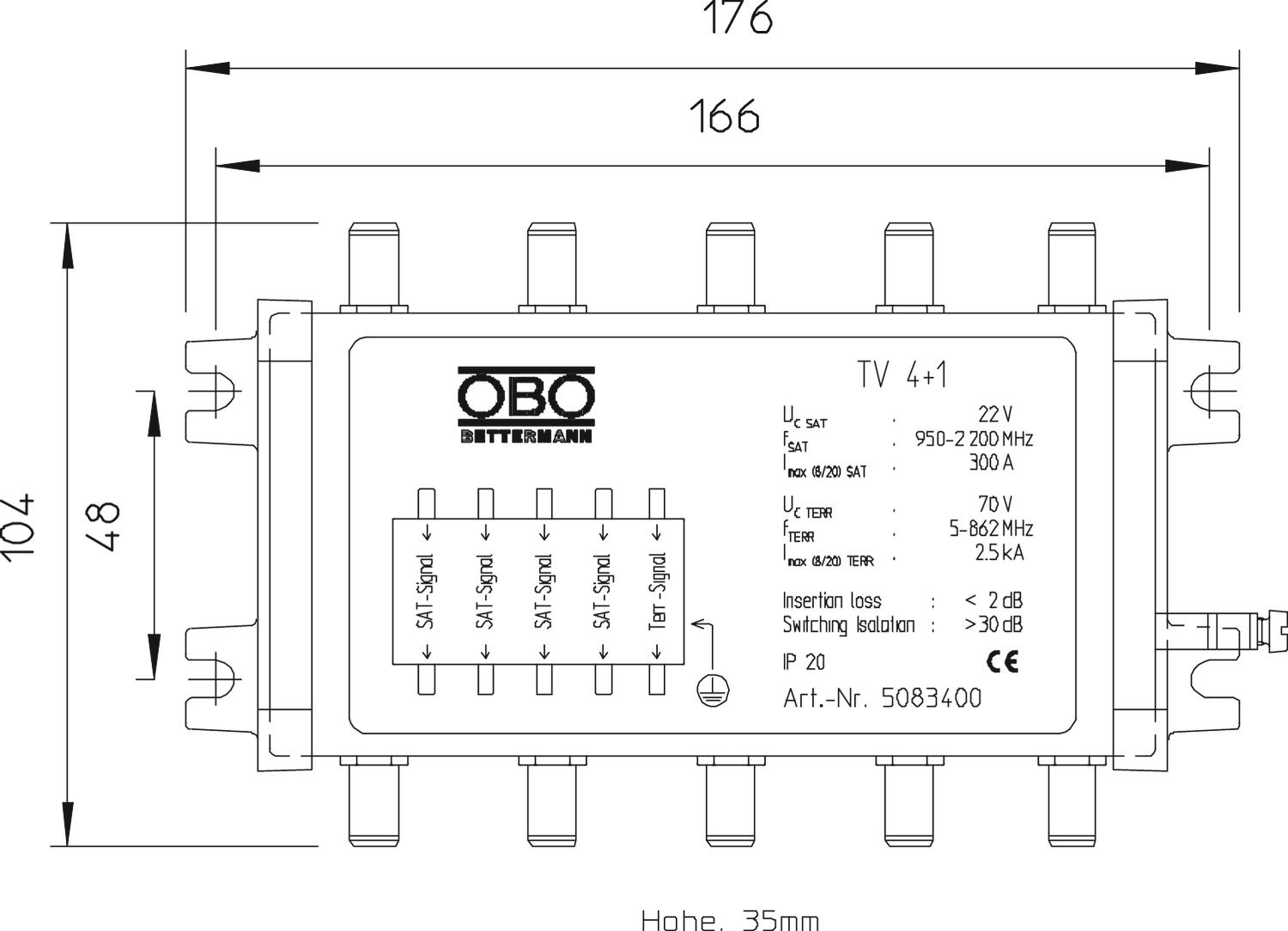

Coaxial protection device for SAT and cable multi-switch

Item no. 5083400 | EAN 4012195022978

Item no. / Types	5083400 / TV 4+1

Number of poles	5

Maximum continuous voltage AC	130 V

Maximum continuous voltage DC	185 V

Plug-in system	F

Product description

Product description

Coaxial data line protection for TV reception systems

• Protects up to four SAT lines
• Protects one terrestrial line, e.g. DVB-T.
• Simple mounting using screws and holder
• With F-connector
• Optimum transmission behaviour with 75 Ohm technology.

Application: Protection of TV and SAT systems, multi-switches, receivers and DVB-T receivers

Technical data

Technical data

Arrestor monitoring	no
Cable type for surge protection devices	Data cable COAX
Capacity (wire-earth)	<500 pF
Capacity (wire-wire)	<500 pF
Cut-off frequency	2800 MHz
Dimension	70V
Earthing via:	Connection cable
Explosion-tested version	no
Impulse durability wire-earth	C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire	C2: 10 kV / 5 kA (8/20µs)
Insertion loss	≤3 dB
Insulation resistance	>1 GΩ
Kategorie	Type 2+3 / C2+C1
Lightning impulse current	2,5 kA
Lightning impulse current \| terrestrial input	1
Lightning protection zone LPZ	1→3
Maximum continuous voltage AC	130 V
Maximum continuous voltage DC	185 V
Maximum continuous voltage Vc \| SAT inputs	22 V
Maximum continuous voltage Vc \| terrestrial input	70 V
Nominal discharge current \| SAT inputs	300 A
Nominal load current AC	1,4 A
Nominal load current DC	2 A

Number of poles	5
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	F
Protection level	<800 V
Protection level wire-earth	<800 V
Protection level wire-wire	<800 V
Protection level \| SAT inputs at In	<45 V
Protection level \| Terrestrial input at In	<500 V
Protection rating	IP10
Response time	<1 ns
Return loss	>30 dB
Screening	Direct
Shielding connection available	yes
Signalling on device	None
SPD to IEC 61643-21	Class II+III / C2+C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (10/350)	5 kA
Total discharge current (8/20)	0,5 kA
Version for	Fine protection device
Wave resistance	75 Ω
