Coaxial protection device for BNC connection: male/male
Item no. 5093260 | EAN 4012195391098
- Product description
-
Product descriptionCoaxial data cable protection devices
• Basic protection
• High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs)
• Simple installation (adapter plug), m = plug/f = female connector
• Various plug combinations
• With BNC connector
• Optimised transmission behaviour

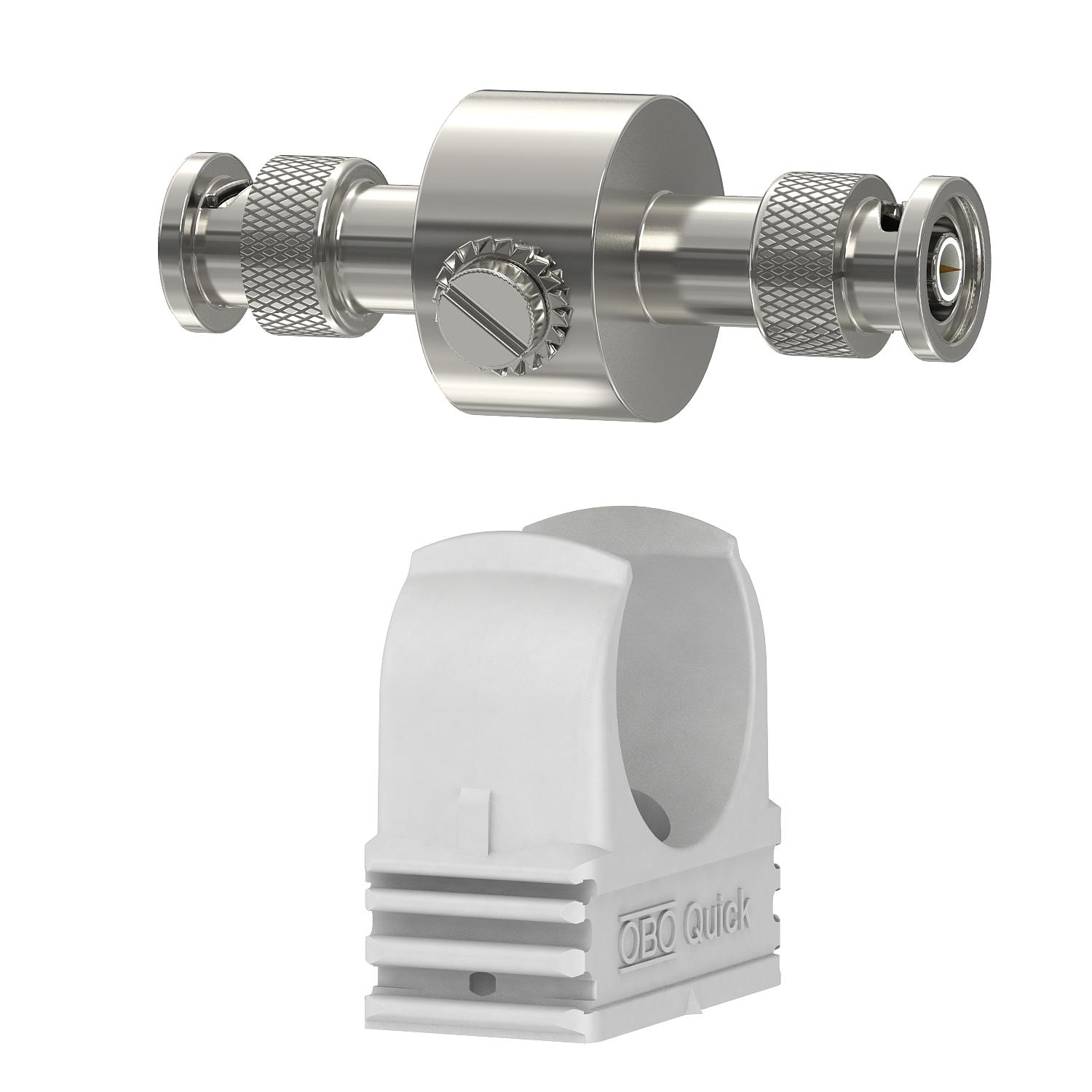

• Including OBO M25 Quick clip for simple installation
-
- Technical data
-

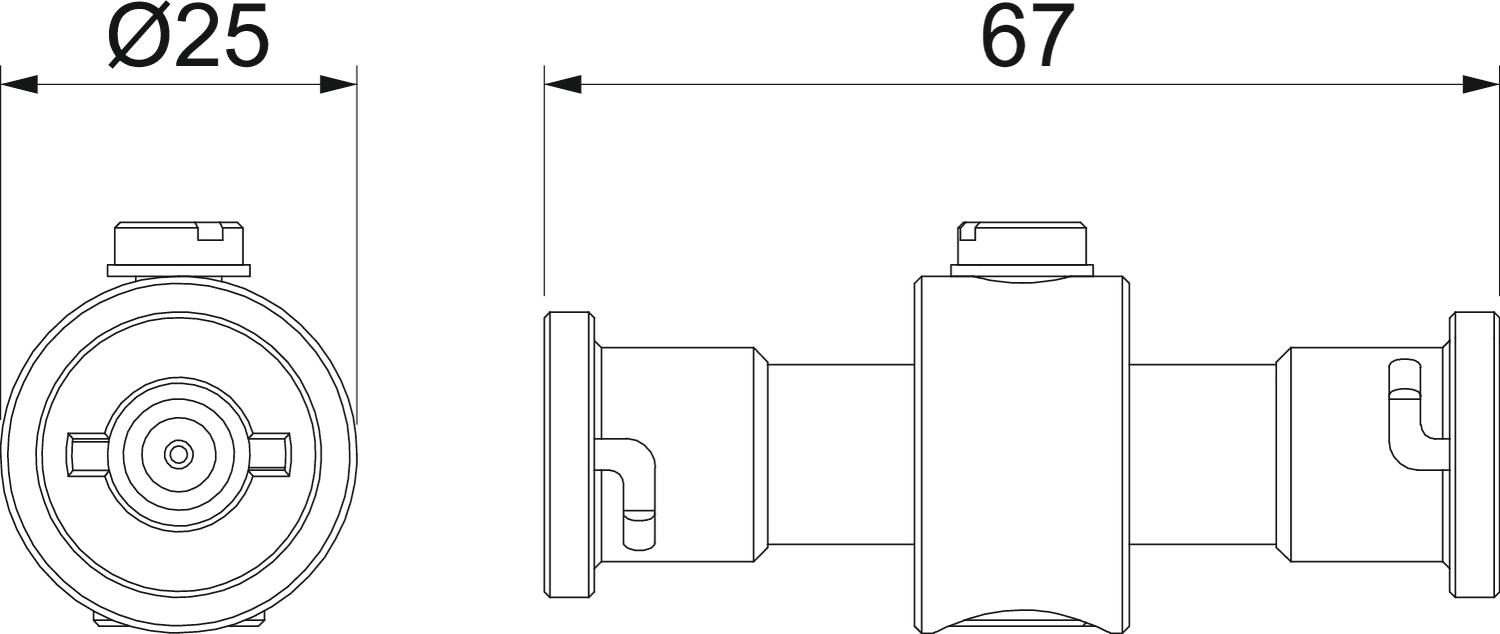

Technical data
Arrestor monitoring no Cable type for surge protection devices Data cable COAX Capacity (wire-earth) <20 pF Capacity (wire-wire) <40 pF Cut-off frequency 2200 MHz Dimension 130V Explosion-tested version no Impulse durability wire-earth C2: 10 kV / 5 kA (8/20µs) Impulse durability wire-wire C2: 10 kV / 5 kA (8/20µs) Insertion loss ≤0,95 dB Insulation resistance >1 GΩ Kategorie Type 1+2 / D1+C2 Lightning impulse current 2,5 kA Lightning protection zone LPZ 0→2 Maximum continuous voltage AC 130 V Maximum continuous voltage DC 185 V Nominal load current AC 7 A Nominal load current DC 10 A Number of poles 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system BNC Protection level <800 V Protection level wire-earth <800 V Protection level wire-wire <800 V Protection rating IP40 Return loss ≥14 dB Screening Direct Shielding connection available yes Signalling on device None SPD to IEC 61643-21 Class I+II / D1+C2 Telecommunications contact no Testing standard IEC 61643-21 Total discharge current (10/350) D1: 5 kA Total discharge current (8/20) 10 kA Wave resistance 50 Ω - All types
- Downloads
-
Data sheet DS-BNC M/M / 5093260 , 0.23MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, DS-N...; DS-BNC...; DS-TNC...; DS-F... , 0.06MB , pdf
