Note: This article is discontinued.
You can find the current article here: 1186342 / Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, A2
Clamp clip, single, plastic pressure trough, A2
Item no. 1159577 | EAN 4012195063971
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 16–17 mm.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
-
- Technical data
-
Technical data

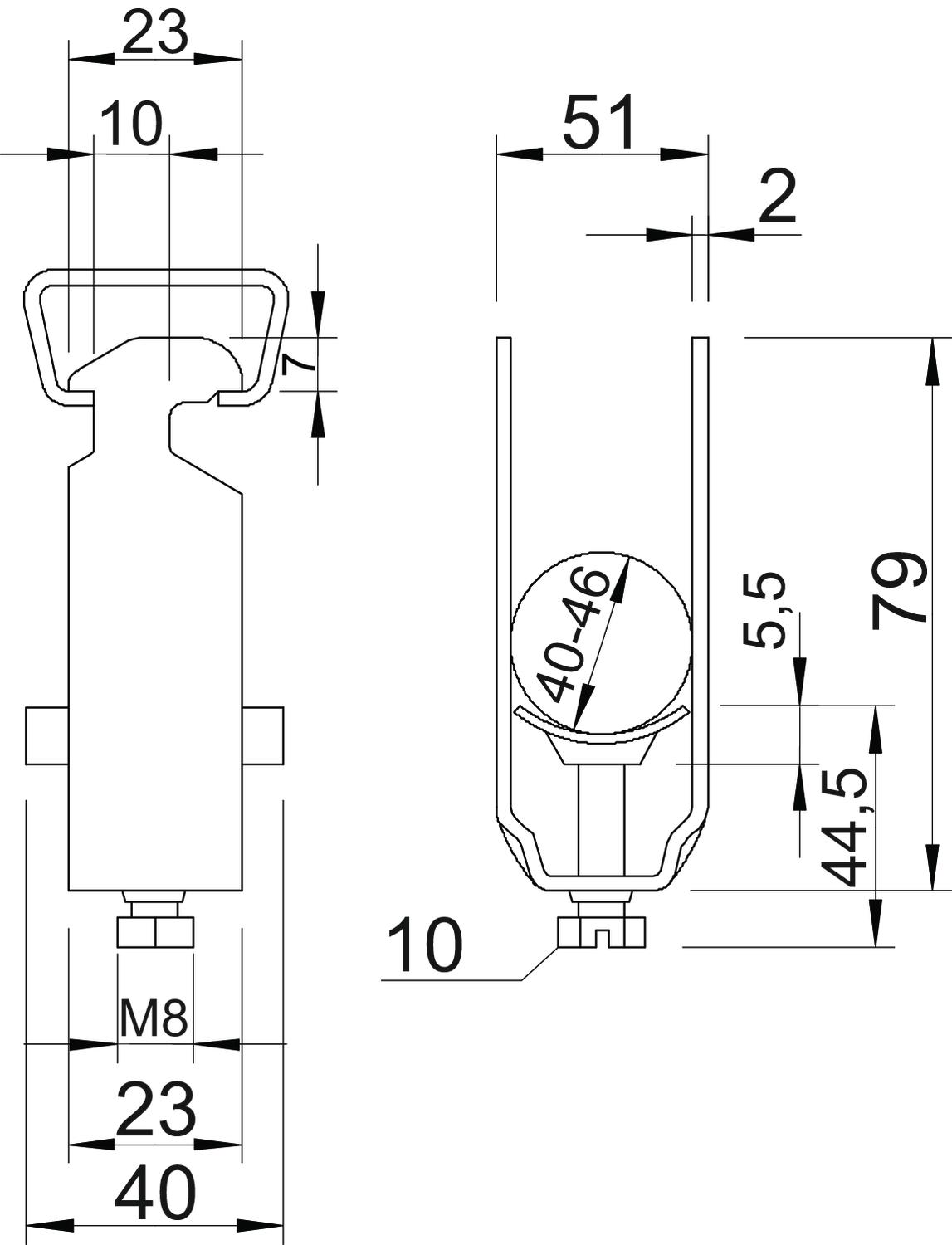

Clamping range D, max. 46 mm Clamping range D, min. 40 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,553 kg CO₂e / 1 Piece Dimension 40-46mm Dimension A 23 mm Dimension B 51 mm Dimension C 40 mm Dimension G (mm) M8 Dimension H 79 mm Dimension L 44,5 mm Dimension t 2 mm Dimension x 5,5 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Stainless steel Material addition Rustproof steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Bright, treated Surface addition Untreated With counter-trough no With metal trough no With plastic trough yes - All types
- Downloads
-
Data sheet 2056 46 A2 / 1159577 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056 46 A2 / 1159577 , 0.10MB , pdfREACH Declaration of conformity 2056 46 A2 / 1159577 , 0.12MB , pdfRoHS Declaration of conformity 2056 46 A2 / 1159577 , 0.12MB , pdf
