Note: This article is discontinued.
You can find the current article here: 1186322 / Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, A2
Clamp clip, single, plastic pressure trough, A2
Item no. 1159542 | EAN 4012195063797
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 16–17 mm.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
-
- Technical data
-
Technical data

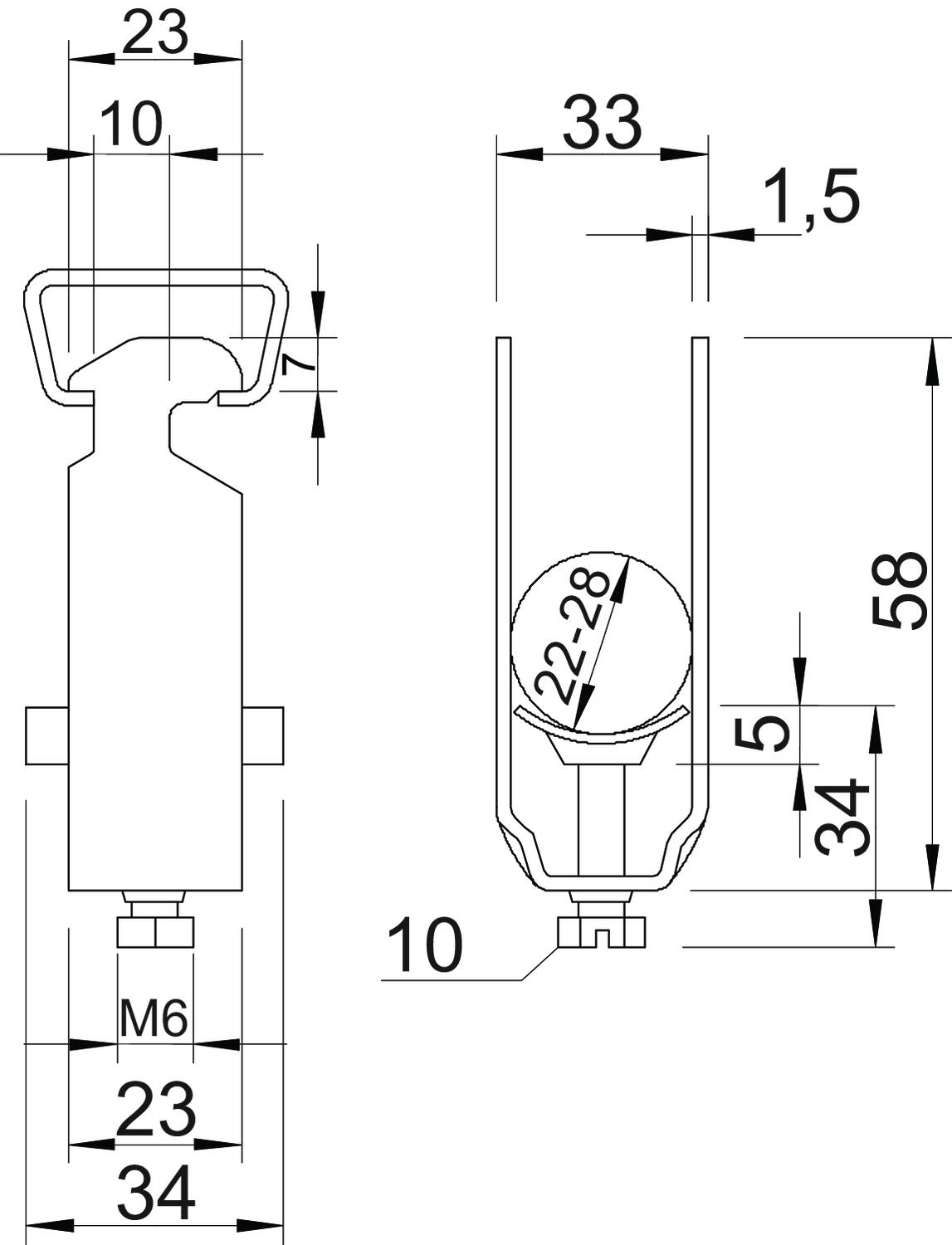

Clamping range D, max. 28 mm Clamping range D, min. 22 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,3865 kg CO₂e / 1 Piece Dimension 22-28mm Dimension A 23 mm Dimension B 33 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 58 mm Dimension L 34 mm Dimension t 2 mm Dimension x 5 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Stainless steel Material addition Rustproof steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Bright, treated Surface addition Untreated With counter-trough no With metal trough no With plastic trough yes - All types
