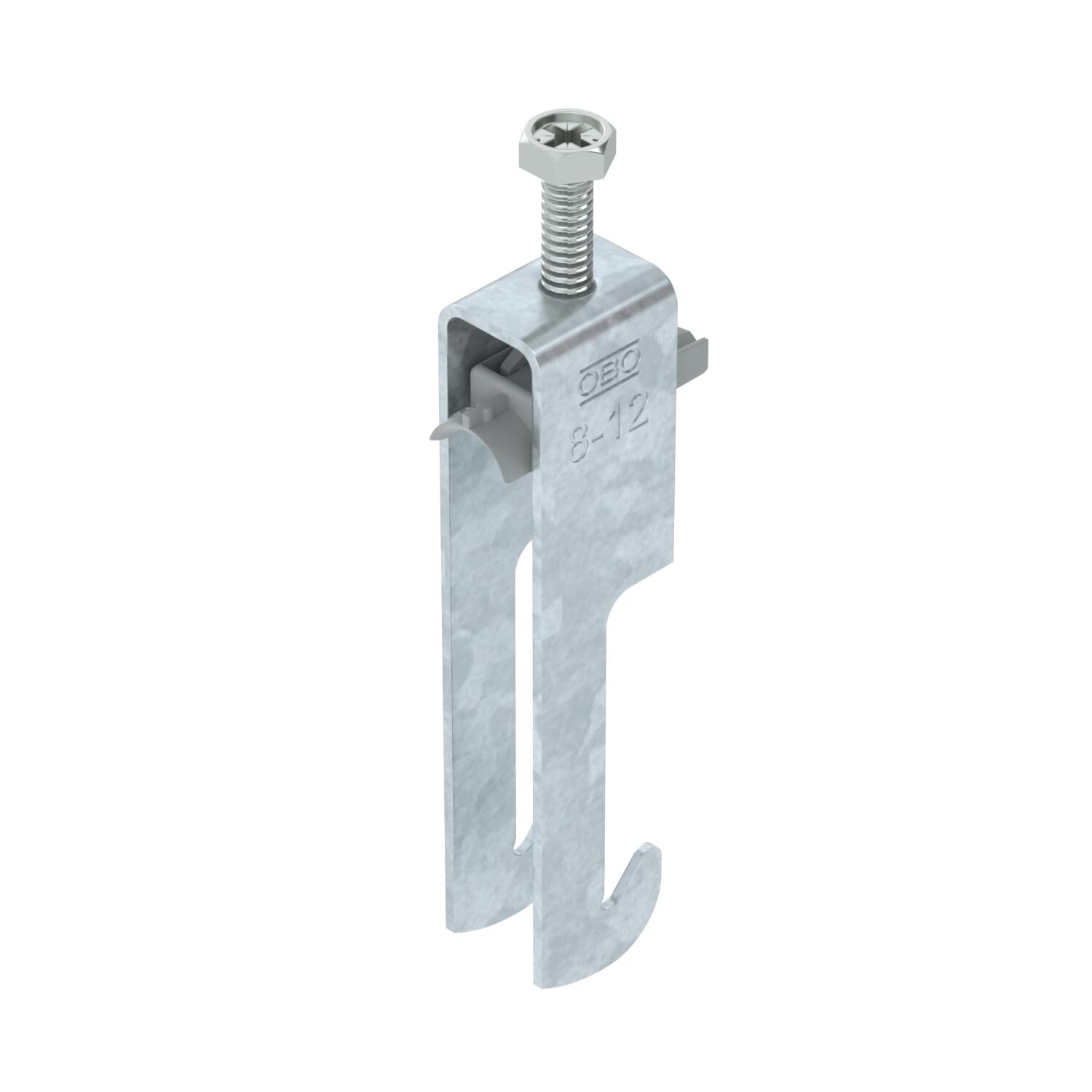

Clamp clip 2056 W-foot, 2-fold, plastic pressure sleeve, FT
Item no. 1187703 | EAN 4012196854349
- Product description
-
Product descriptionClamp clip with W-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on angle irons < 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

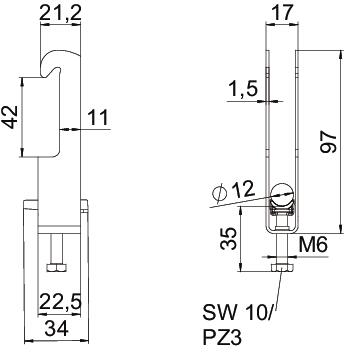

Clamping range D, max. 12 mm Clamping range D, min. 8 mm Dimension 08-12mm Dimension A 22,5 mm Dimension B 17 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 97 mm Dimension L 35 mm Dimension t 1,5 mm For pipe diameter, max. 12 mm For pipe diameter, min. 8 mm Halogen-free yes Height 97 mm Length 22,5 mm Length of external dimensions 34 mm Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Angle profile Number of cables/pipes 2 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 Width 17 mm With counter-trough no With plastic trough yes - All types
-
All types
- Downloads
-
Data sheet BS-W2-K-12 FT / 1187703 , 0.26MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity BS-W2-K-12 FT / 1187703 , 0.10MB , pdfUK Declaration of Conformity BS-W2-K-12 FT / 1187703 , 0.09MB , pdfMounting instructions Clamp clip W foot, plastic , 2.96MB , pdf
