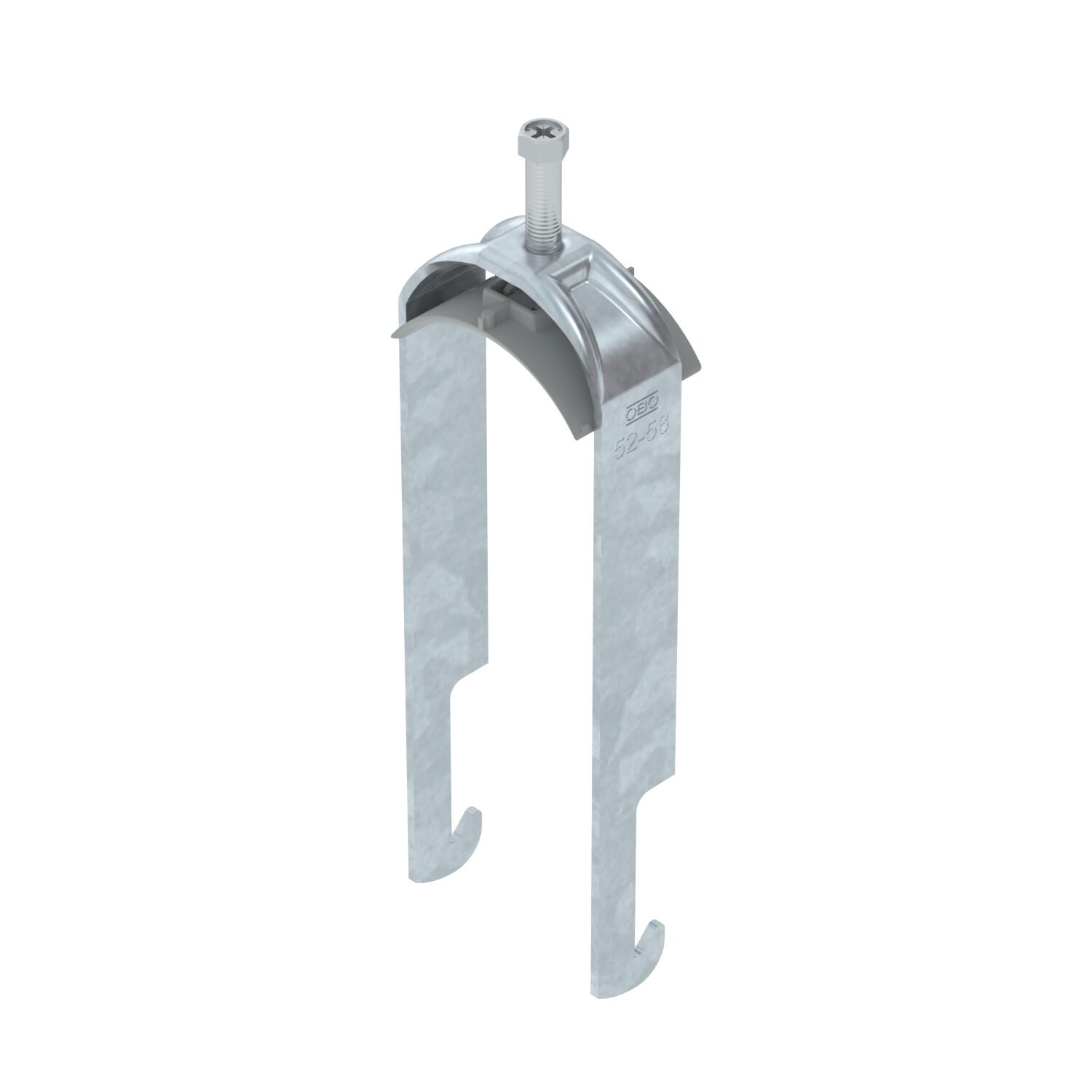

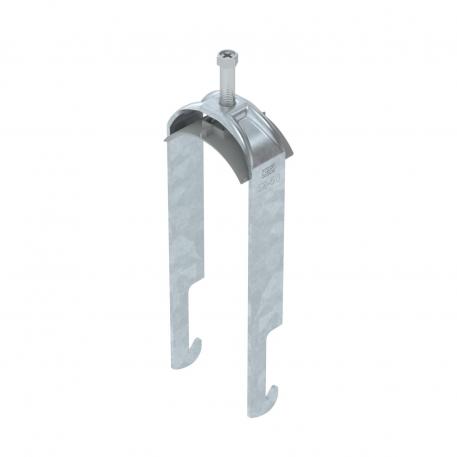

Clamp clip 2056 W-foot, 2-fold, plastic pressure sleeve, FT 52 | 58 | 5

Clamp clip 2056 W-foot, 2-fold, plastic pressure sleeve, FT

Item no. 1187751 | EAN 4012196854639

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with W-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on angle irons < 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	58 mm
Clamping range D, min.	52 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,6194 kg CO₂e / 1 Piece
Dimension	52-58mm

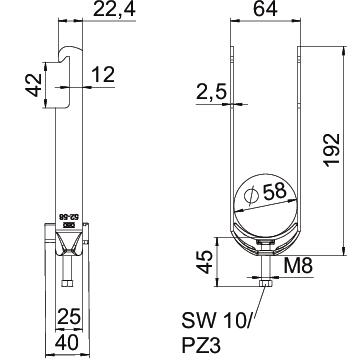

Dimension A	25 mm
Dimension B	64 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	192 mm
Dimension L	45 mm
Dimension t	2,5 mm
For pipe diameter, max.	58 mm
For pipe diameter, min.	52 mm
Halogen-free	yes
Height	192 mm
Length	25 mm

Length of external dimensions	40 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Angle profile
Number of cables/pipes	2
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	64 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-W2-K-12 FT	8 mm	12 mm	3 Nm	1187703	piece	50 piece
BS-W2-K-16 FT	12 mm	16 mm	3 Nm	1187709	piece	50 piece
BS-W2-K-22 FT	16 mm	22 mm	3 Nm	1187715	piece	1 piece
BS-W2-K-28 FT	22 mm	28 mm	3 Nm	1187721	piece	1 piece
BS-W2-K-34 FT	28 mm	34 mm	3 Nm	1187727	piece	1 piece
BS-W2-K-40 FT	34 mm	40 mm	3 Nm	1187733	piece	1 piece
BS-W2-K-46 FT	40 mm	46 mm	5 Nm	1187739	piece	25 piece
BS-W2-K-52 FT	46 mm	52 mm	5 Nm	1187745	piece	25 piece
BS-W2-K-58 FT	52 mm	58 mm	5 Nm	1187751	piece	1 piece
