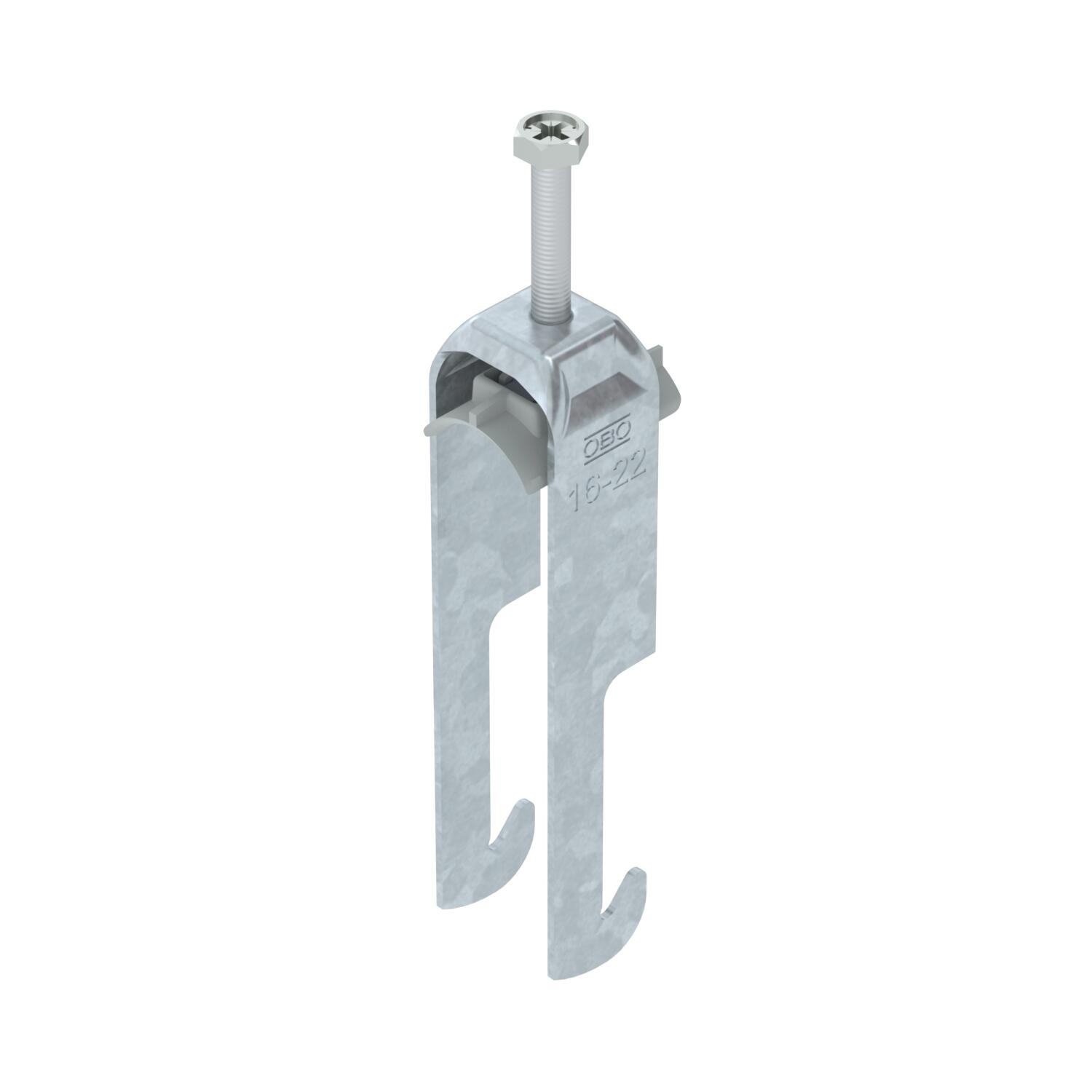

Clamp clip 2056 W-foot, 2-fold, plastic pressure sleeve, FT
Item no. 1187715 | EAN 4012196854493
- Product description
-
Product descriptionClamp clip with W-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on angle irons < 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

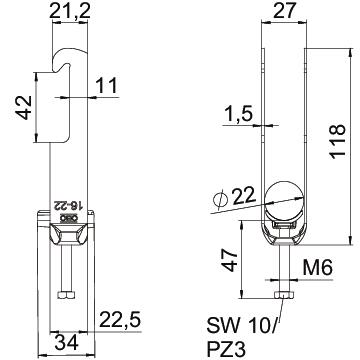

Clamping range D, max. 22 mm Clamping range D, min. 16 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,2117 kg CO₂e / 1 Piece Dimension 16-22mm Dimension A 22,5 mm Dimension B 27 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 118 mm Dimension L 47 mm Dimension t 1,5 mm For pipe diameter, max. 22 mm For pipe diameter, min. 16 mm Halogen-free yes Height 118 mm Length 22,5 mm Length of external dimensions 34 mm Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Angle profile Number of cables/pipes 2 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 Width 27 mm With counter-trough no With plastic trough yes - All types
-
All types
- Downloads
-
Data sheet BS-W2-K-22 FT / 1187715 , 0.17MB , pdfEU declaration of conformity BS-W2-K-22 FT / 1187715 , 0.10MB , pdfUK Declaration of Conformity BS-W2-K-22 FT / 1187715 , 0.09MB , pdfREACH Declaration of conformity BS-W2-K-22 FT / 1187715 , 0.12MB , pdfRoHS Declaration of conformity BS-W2-K-22 FT / 1187715 , 0.12MB , pdfMounting instructions Clamp clip W foot, plastic , 2.96MB , pdf
