Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 8 | 12 | 3

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186502 | EAN 4012196849772

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

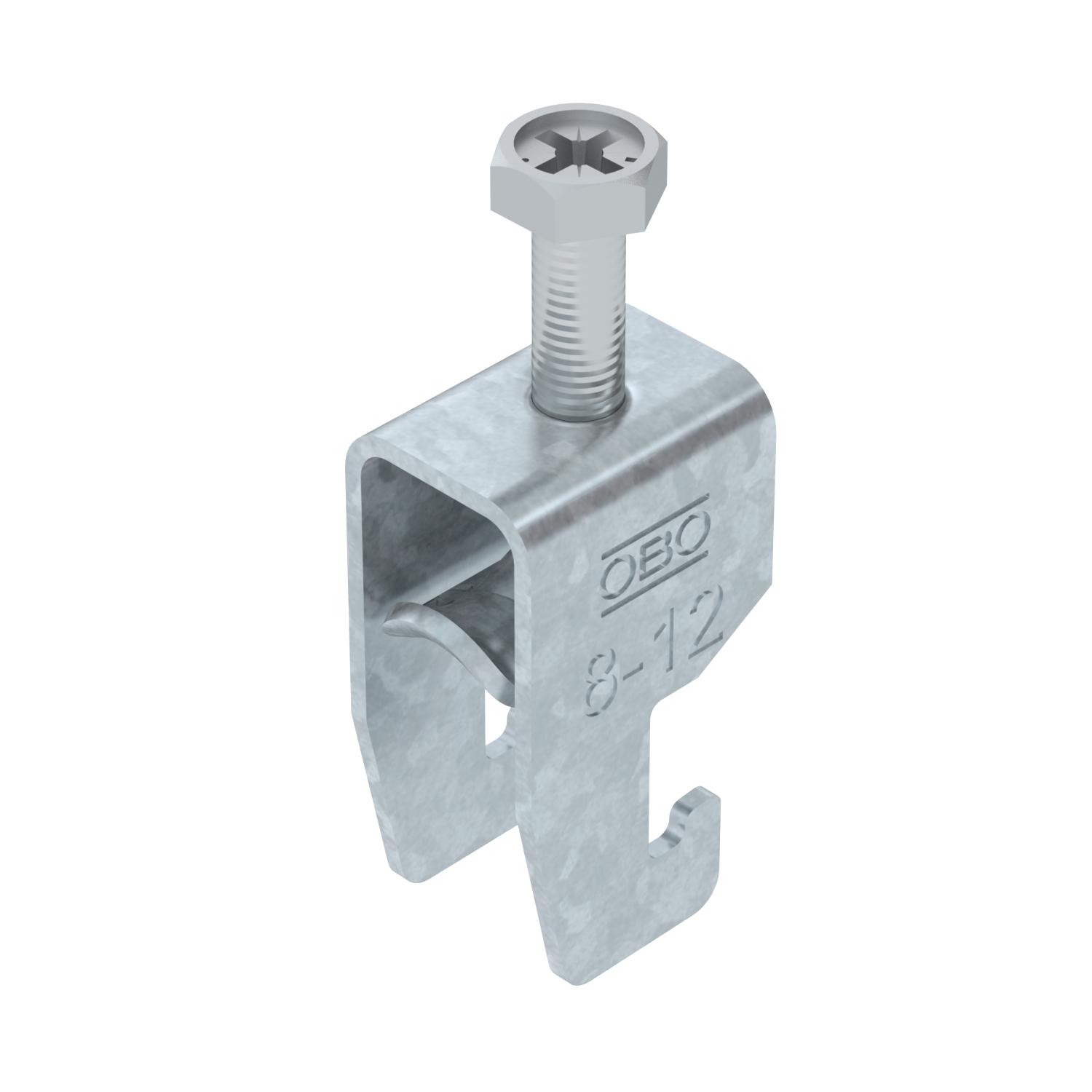

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,066 kg CO₂e / 1 Piece

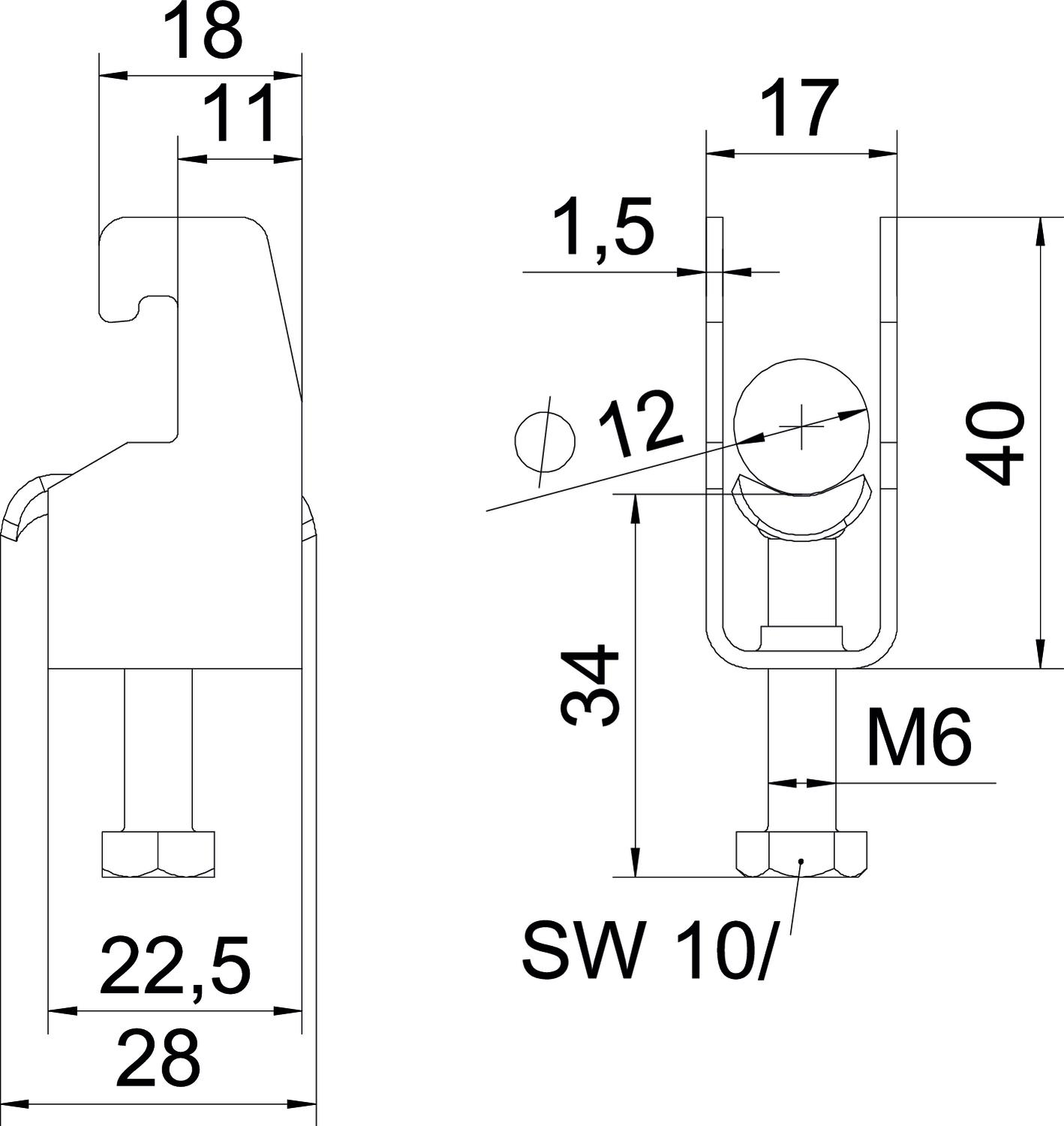

Dimension	08-12mm
Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	40 mm
Dimension L	34 mm
Dimension t	1,5 mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	40 mm

Length	22,5 mm
Length of external dimensions	28 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	17 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-M-12 FT	8 mm	12 mm	3 Nm	1186502	piece	1 piece
BS-U1-M-16 FT	12 mm	16 mm	3 Nm	1186509	piece	100 piece
BS-U1-M-22 FT	16 mm	22 mm	3 Nm	1186516	piece	100 piece
BS-U1-M-28 FT	22 mm	28 mm	3 Nm	1186522	piece	100 piece
BS-U1-M-34 FT	28 mm	34 mm	3 Nm	1186529	piece	100 piece
BS-U1-M-40 FT	34 mm	40 mm	3 Nm	1186536	piece	1 piece
BS-U1-M-46 FT	40 mm	46 mm	5 Nm	1186542	piece	1 piece
BS-U1-M-52 FT	46 mm	52 mm	5 Nm	1186549	piece	1 piece
BS-U1-M-58 FT	52 mm	58 mm	5 Nm	1186556	piece	1 piece
BS-U1-M-64 FT	58 mm	64 mm	5 Nm	1186562	piece	1 piece
BS-U1-M-70 FT	64 mm	70 mm	5 Nm	1186569	piece	50 piece
BS-U1-M-76 FT	70 mm	76 mm	5 Nm	1186576	piece	1 piece
BS-U1-M-82 FT	76 mm	82 mm	5 Nm	1186582	piece	25 piece
BS-U1-M-90 FT	82 mm	90 mm	5 Nm	1186589	piece	25 piece
BS-U1-M-100 FT	90 mm	100 mm	5 Nm	1186597	piece	25 piece
