Clamp clip 2056 H-foot, 2-fold, metal pressure sleeve, A2 22 | 28 | 3

Clamp clip 2056 H-foot, 2-fold, metal pressure sleeve, A2

Item no. 1186123 | EAN 4012196848959

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

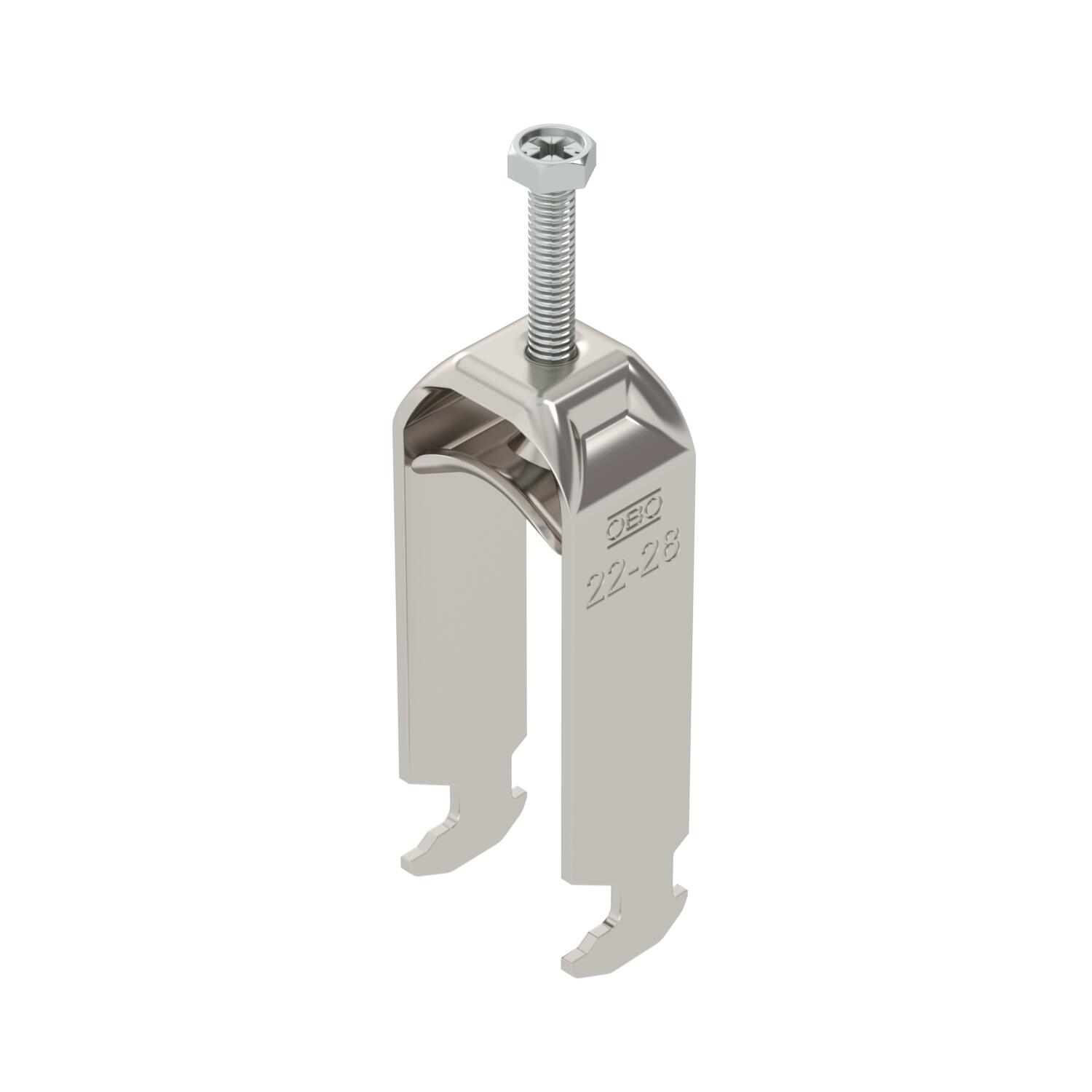

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
Dimension	22-28mm

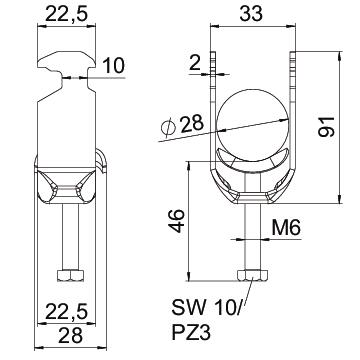

Dimension A	22,5 mm
Dimension B	33 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	91 mm
Dimension L	46 mm
Dimension t	2 mm
For pipe diameter, max.	28 mm
For pipe diameter, min.	22 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Height	91 mm
Length	22,5 mm

Length of external dimensions	28 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	2
Plate thickness	2 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	33 mm
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H2-M-12 A2	8 mm	12 mm	3 Nm	1186103	piece	50 piece
BS-H2-M-16 A2	12 mm	16 mm	3 Nm	1186110	piece	50 piece
BS-H2-M-22 A2	16 mm	22 mm	3 Nm	1186117	piece	50 piece
BS-H2-M-28 A2	22 mm	28 mm	3 Nm	1186123	piece	50 piece
BS-H2-M-34 A2	28 mm	34 mm	3 Nm	1186130	piece	50 piece
BS-H2-M-40 A2	34 mm	40 mm	3 Nm	1186137	piece	25 piece
BS-H2-M-46 A2	40 mm	46 mm	5 Nm	1186143	piece	25 piece
BS-H2-M-52 A2	46 mm	52 mm	5 Nm	1186150	piece	25 piece
BS-H2-M-58 A2	52 mm	58 mm	5 Nm	1186157	piece	25 piece
BS-H2-M-64 A2	58 mm	64 mm	5 Nm	1186163	piece	15 piece
