CEE socket unit, single, 32 A
Item no. 6119485 | EAN 4012196609994
- Product description
-
Product description
Accessory mounting box CEE, single, 32 A.

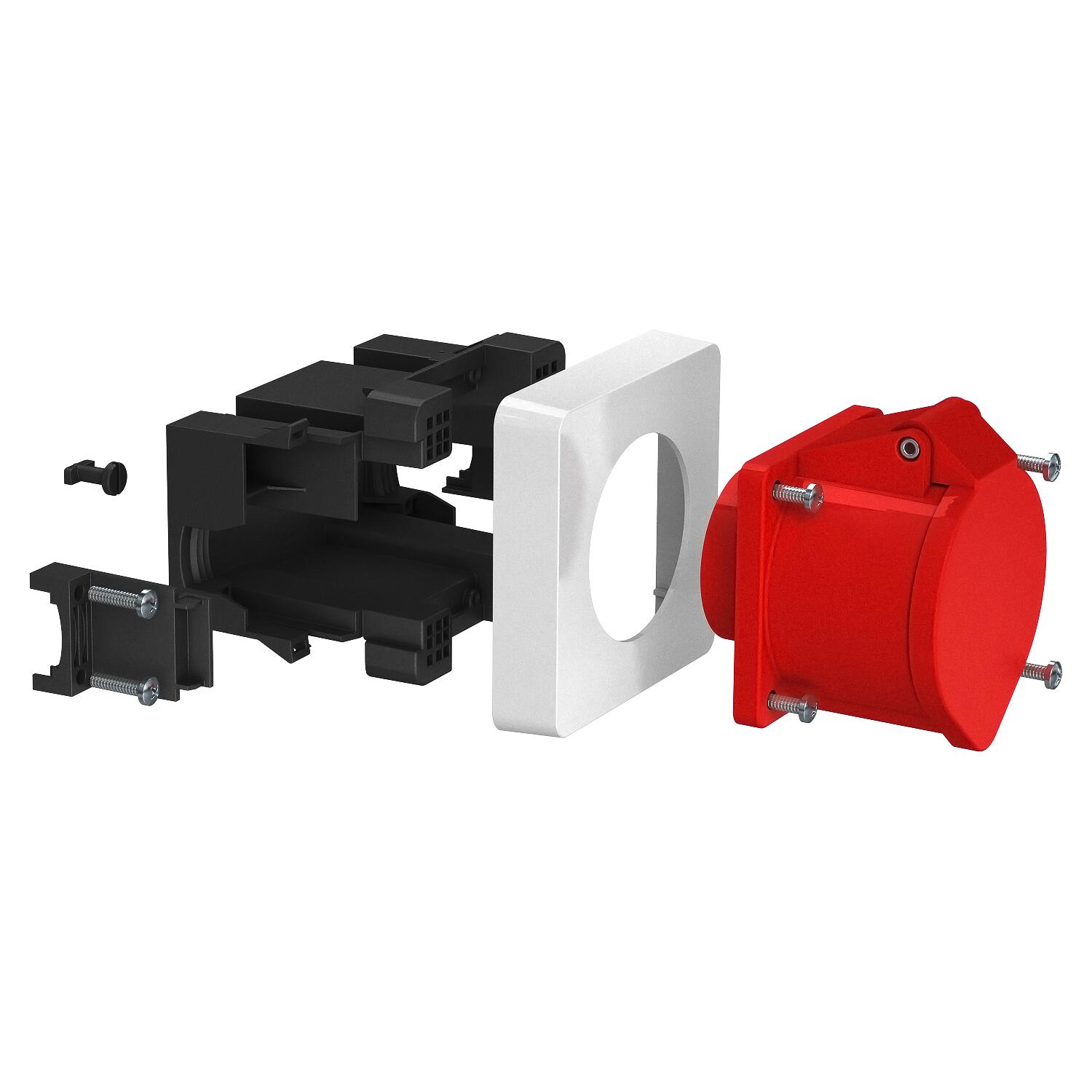

Scope of delivery:
- 1 front-locking accessory mounting box for 4-point fastening track of 52 x 52 mm to 70 x 70 mm
- 1 cover frame in pure white for hiding the fastening technology
- 2 external strain reliefs for jacketed cables of up to Ø 18 mm
- 2 sash locks for optional fastening to trunking bases with C rail
- 1 CEE socket 32 A with mounting accessories
For installation in Rapid 80 device installation trunking and ISS service poles.
- Technical data
-
Technical data

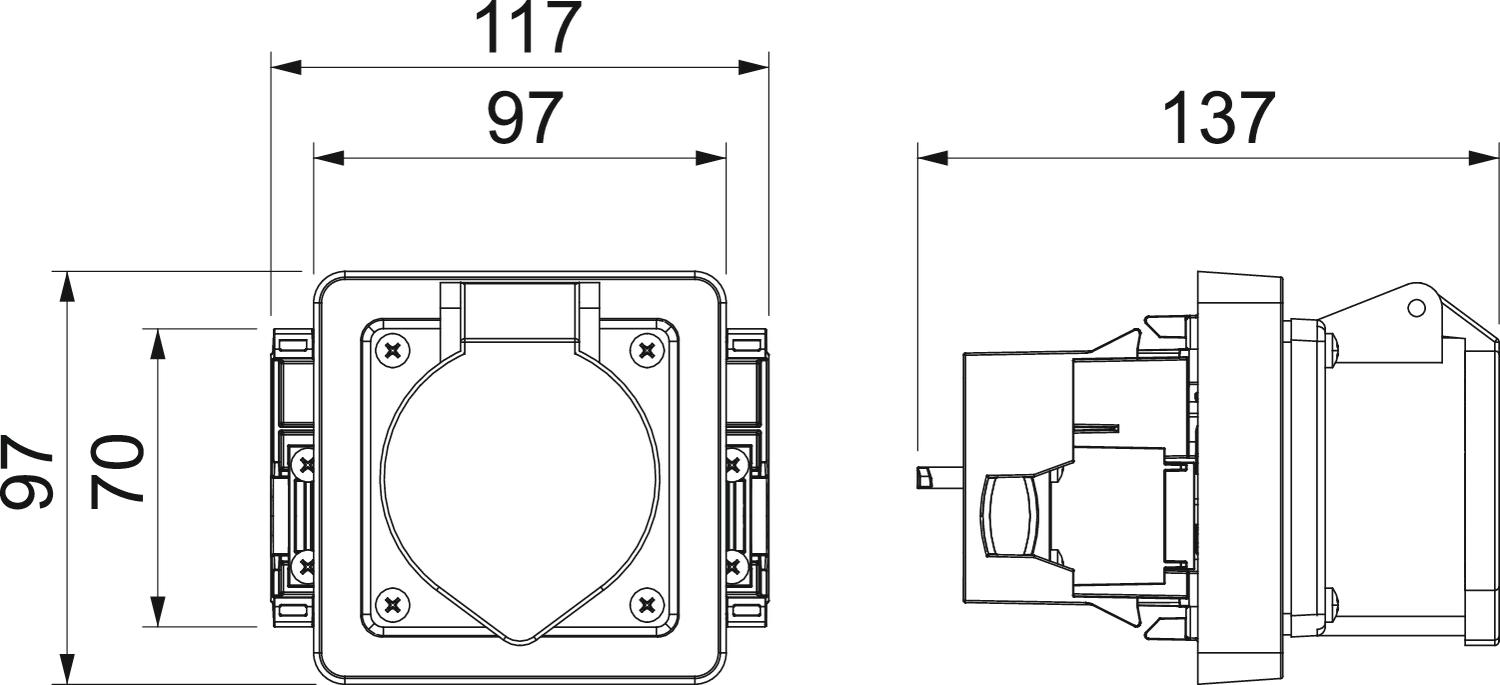

Colour Graphite black; RAL 9011 Dimension 118x98x125 Fastening track Other Halogen-free yes Material Polyamide Number of units 1 Strain relief option yes Version for Closed With connection compartment yes - All types
- Downloads
-
Data sheet 71GDCEE32 / 6119485 , 0.21MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity 71GDCEE32 / 6119485 , 0.12MB , pdfRoHS Declaration of conformity 71GDCEE32 / 6119485 , 0.12MB , pdfMounting instructions Mounting instructions CEE device installation socket for CEE sockets , 0.11MB , pdfNo invitation to tender text is available for this product.
