Cable tray PT76 FT

Item no. 6900553 | EAN 4012196062027

3000 mm
no
Steel
Hot-dip galvanised
Product description
Product description

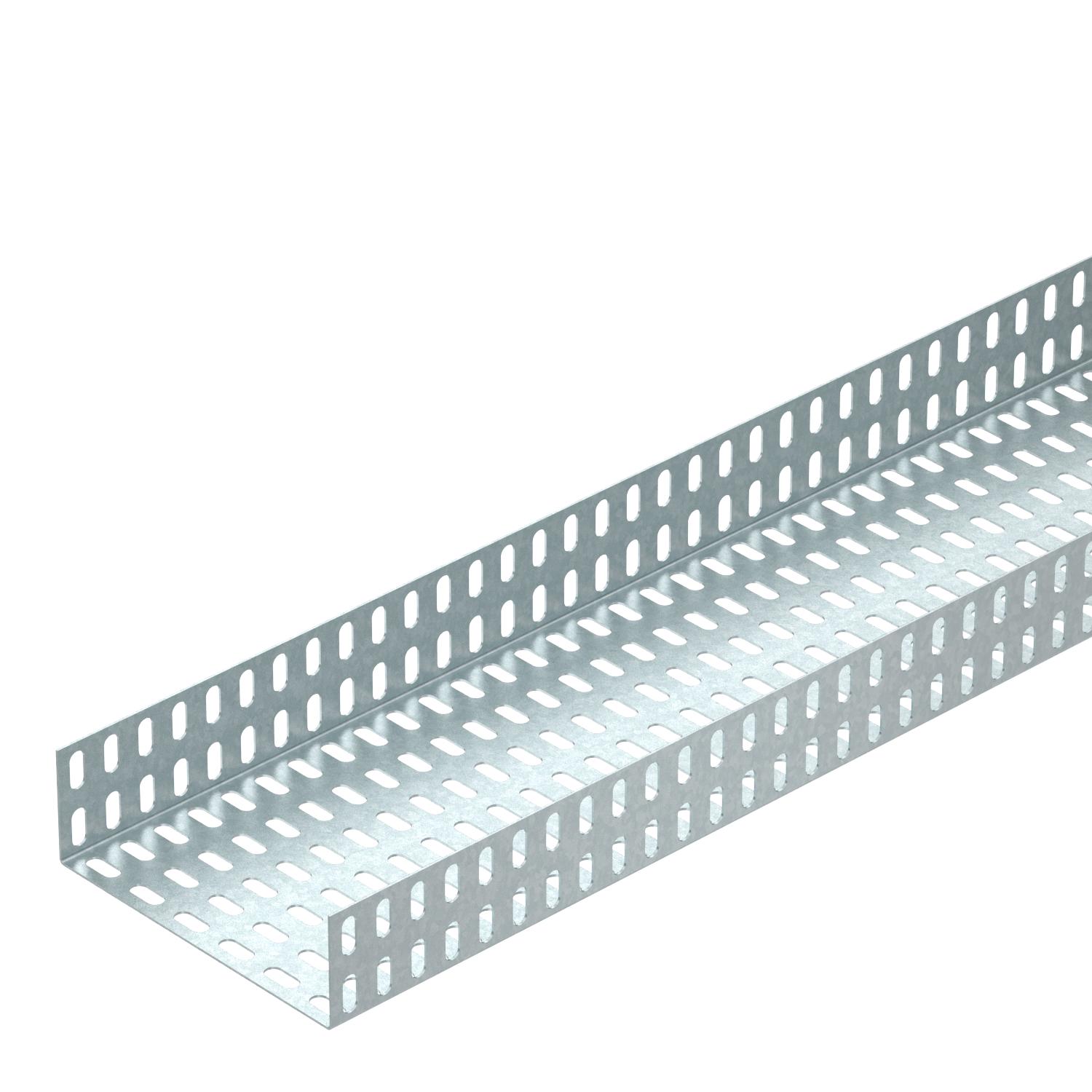

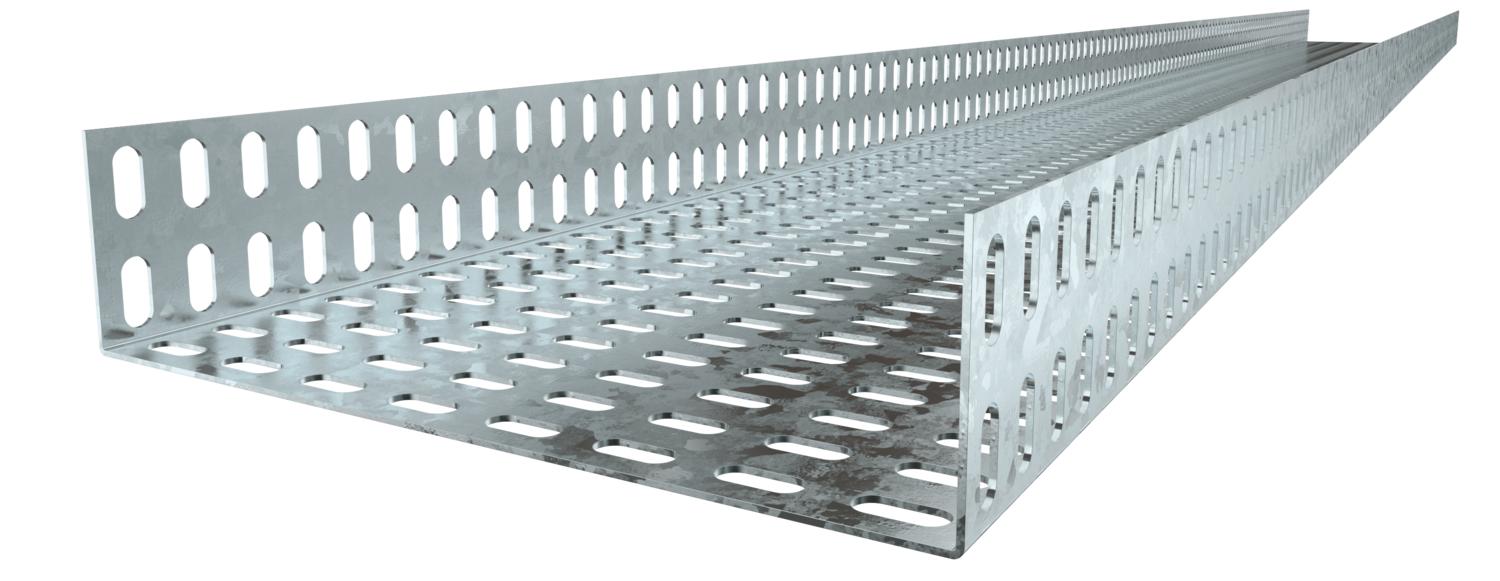

Heavy-duty perforated cable tray system PT76.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors

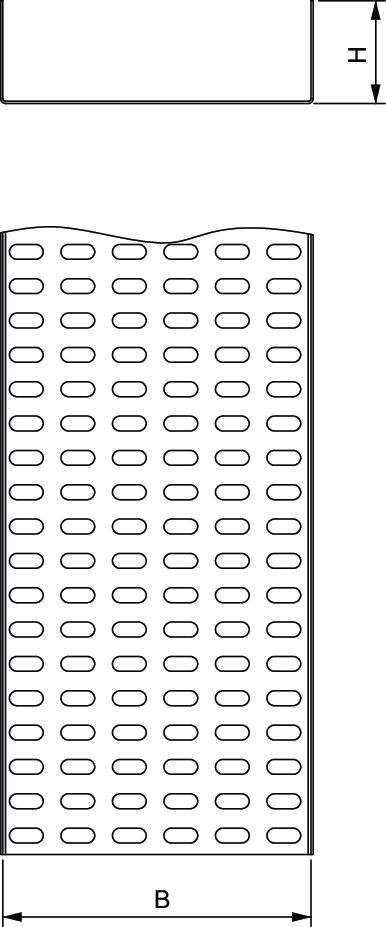

Dimension 76x76x3000
Dimension B 76 mm
Dimension H 76 mm
Height 76 mm
Length 3000 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,6 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 4,5 kN/m
Support spacing 2.0 m 1,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 58 cm²
Wide-span version no
Width 76 mm
With cover no
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
PT76 76 HDG 3000 mm 76 mm 1.6 mm no Steel Hot-dip galvanised 6900553
3 m
PT76 114 HDG 3000 mm 114 mm 1.6 mm no Steel Hot-dip galvanised 6900557
3 m
PT76 152 HDG 3000 mm 152 mm 1.6 mm no Steel Hot-dip galvanised 6900561
3 m
PT76 228 HDG 3000 mm 228 mm 1.6 mm no Steel Hot-dip galvanised 6900565
3 m
PT76 304 HDG 3000 mm 304 mm 2 mm no Steel Hot-dip galvanised 6900569
3 m
PT76 457 HDG 3000 mm 457 mm 2 mm no Steel Hot-dip galvanised 6900573
3 m
PT76 609 HDG 3000 mm 609 mm 2 mm no Steel Hot-dip galvanised 6900577
3 m
