Connector version	Without connectors

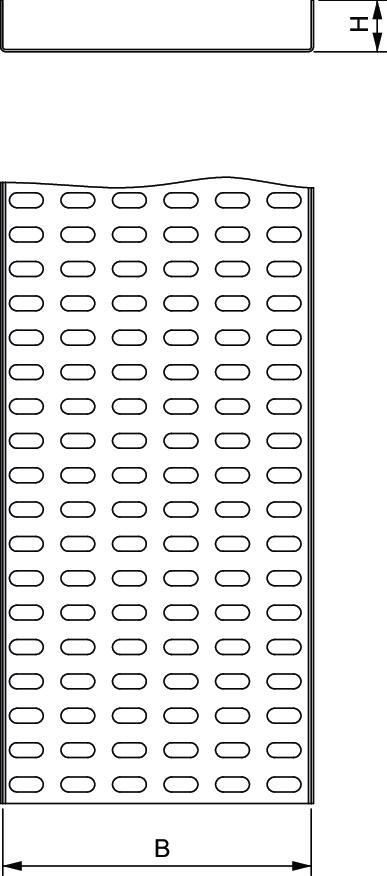

Dimension	38x76x3000
Dimension B	76 mm
Dimension H	38 mm
Height	38 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,6 mm

Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,5 kN/m
Support spacing 2.0 m	0,4 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	29 cm²
Wide-span version	no
Width	76 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
PT38 76 HDG	3000 mm	76 mm	1.6 mm	no	Steel	Hot-dip galvanised	6900303	m	3 m
PT38 114 HDG	3000 mm	114 mm	1.6 mm	no	Steel	Hot-dip galvanised	6900307	m	3 m
PT38 152 HDG	3000 mm	152 mm	1.6 mm	no	Steel	Hot-dip galvanised	6900311	m	3 m
PT38 228 HDG	3000 mm	228 mm	1.6 mm	no	Steel	Hot-dip galvanised	6900315	m	3 m
PT38 304 HDG	3000 mm	304 mm	1.6 mm	no	Steel	Hot-dip galvanised	6900319	m	3 m

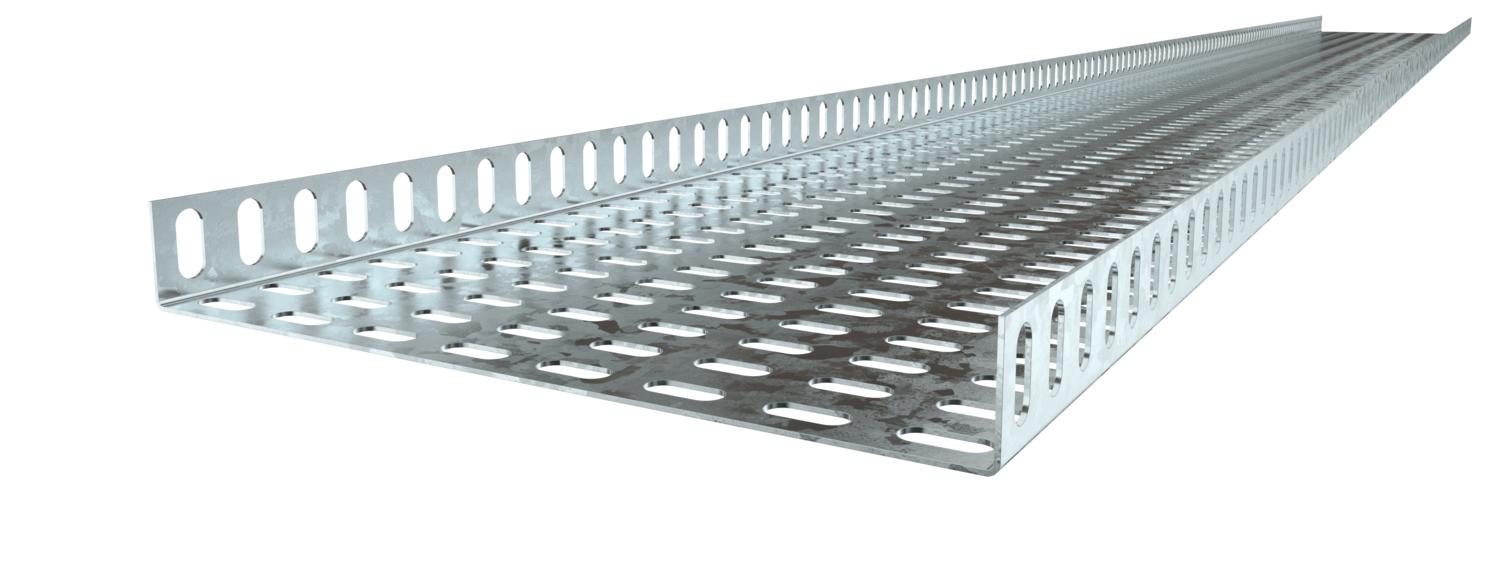

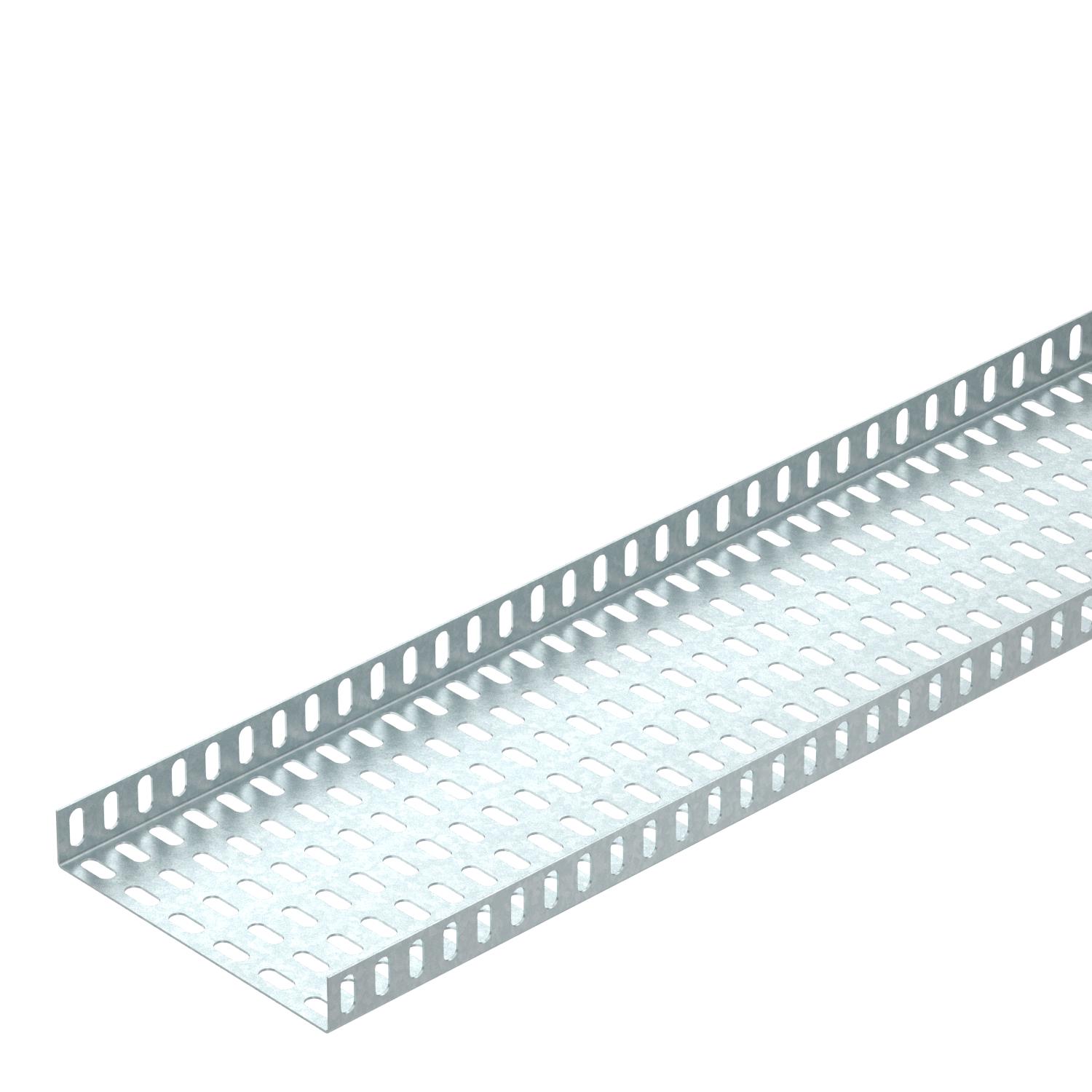

Cable tray PT38 FT

All types
