Cable tray PT19 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

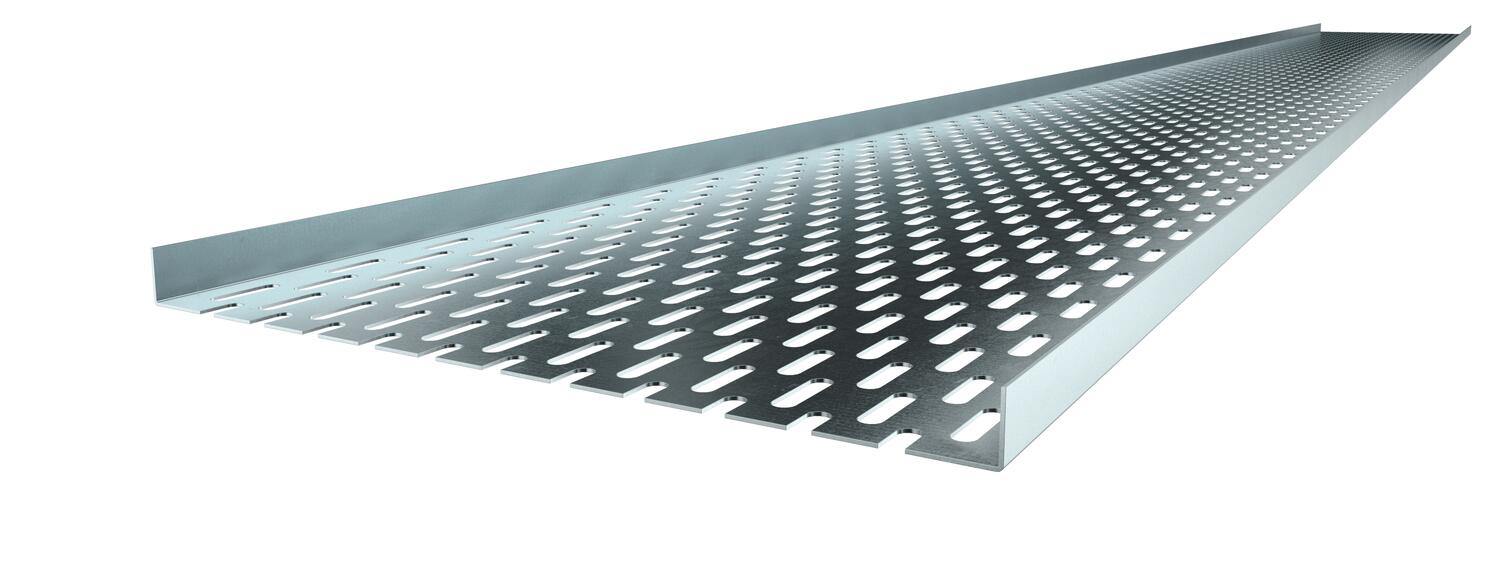

Light-duty perforated cable tray system PT12/PT19.

Technical data

Connector version	Without connectors
Dimension	19x101x3000
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	19 cm²
Wide-span version	no
With cover	no

Height	19 mm
Length	3000 mm

Width	101 mm

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
PT19 101 PG	3000 mm	101 mm	1 mm	no	Steel	Strip galvanized	6900011	m	3 m
PT19 152 PG	3000 mm	152 mm	1 mm	no	Steel	Strip galvanized	6900015	m	3 m

Downloads

Data sheet PT19 101 PG / 6900011 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity PT19 101 PG / 6900011 , 0.10MB , pdf
