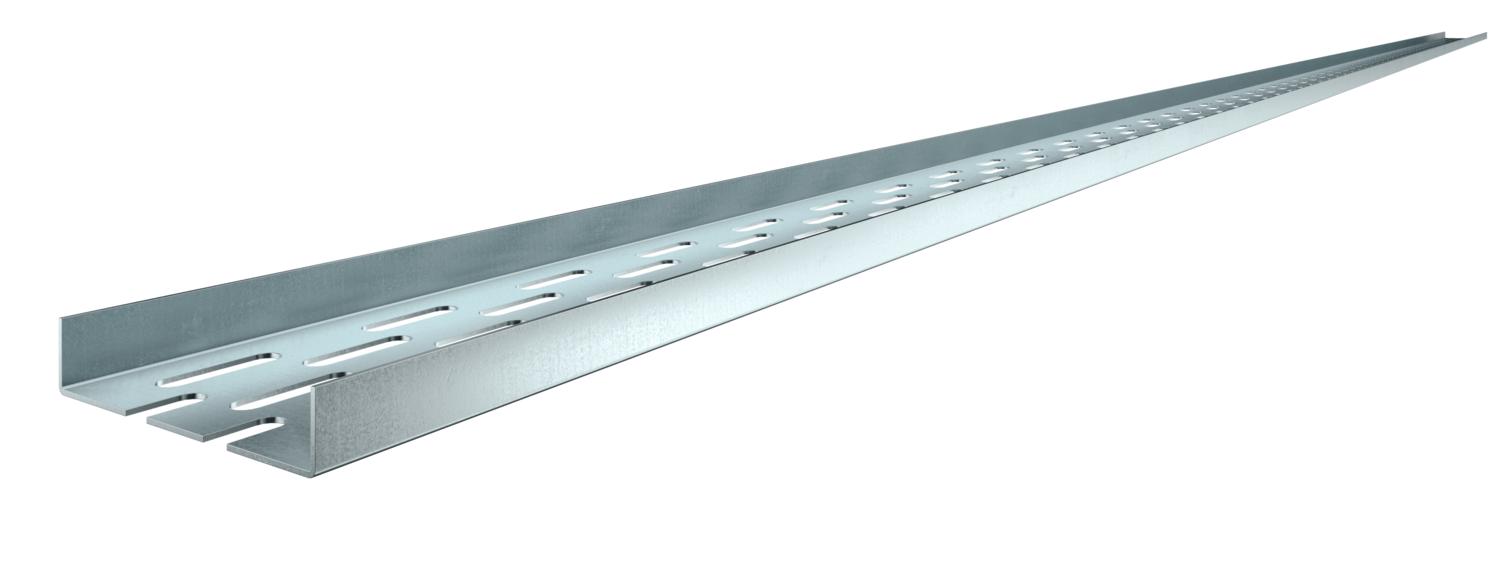

Cable tray PT12 FS

Item no. / Types	6900003 / PT12 50 PG

Length	3000 mm

Width	50 mm

Plate thickness	1.6 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

Light-duty perforated cable tray system PT12/PT19.

Technical data

Dimension	12x50x3000
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,6 mm
Rustproof steel, pickled	no

Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	6 cm²
Usable cross-section	600 mm²
Wide-span version	no
With cover	no

Length	3000 mm
Width	50 mm

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
PT12 50 PG	3000 mm	50 mm	1.6 mm	no	Steel	Strip galvanized	6900003	m	3 m
