Cable-pipe clip OLTC HDG

Item no. 1500545 | EAN 4012196059195

Product description

Product description

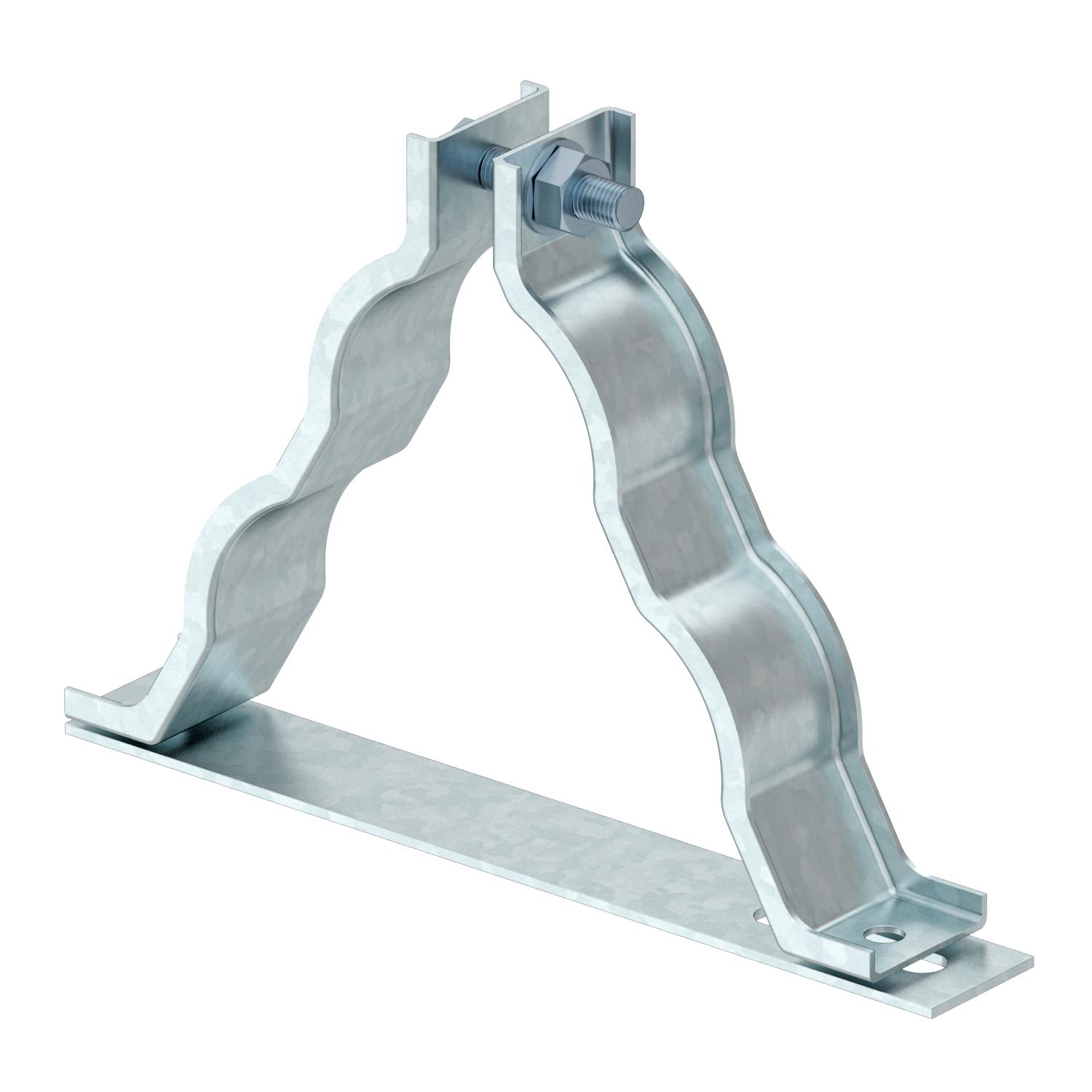

Fastening clip with retaining plate to accept 3 cables or pipes.
Complete with bolts, nuts, washers and head plates.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 130 mm
Clamping range D, min. 90 mm
Dimension 165x40x45
Dimension B 108 mm
For diameter 39-45
Material Steel
Surface Hot-dip galvanised
All types

All types

Types For diameter Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
OLTC01/45 HDG 39-45 90 mm 130 mm 1500545
1
OLTC01/51 HDG 46-51 130 mm 170 mm 1500551
1
OLTC01/59 HDG 52-59 145 mm 185 mm 1500559
1
OLTC01/70 HDG 60-70 170 mm 210 mm 1500570
1
OLTC01/75 HDG 70-75 170 mm 210 mm 1500575
1
