Cable ladder SSP150 Nema 20C, 6 m 6000 | 200 | 2 |
morepic-1 morepic-2 video-1

Cable ladder SSP150 Nema 20C, 6 m

Item no. 6905353 | EAN 4012196074884

6000 mm
2 mm
Product description

Product description

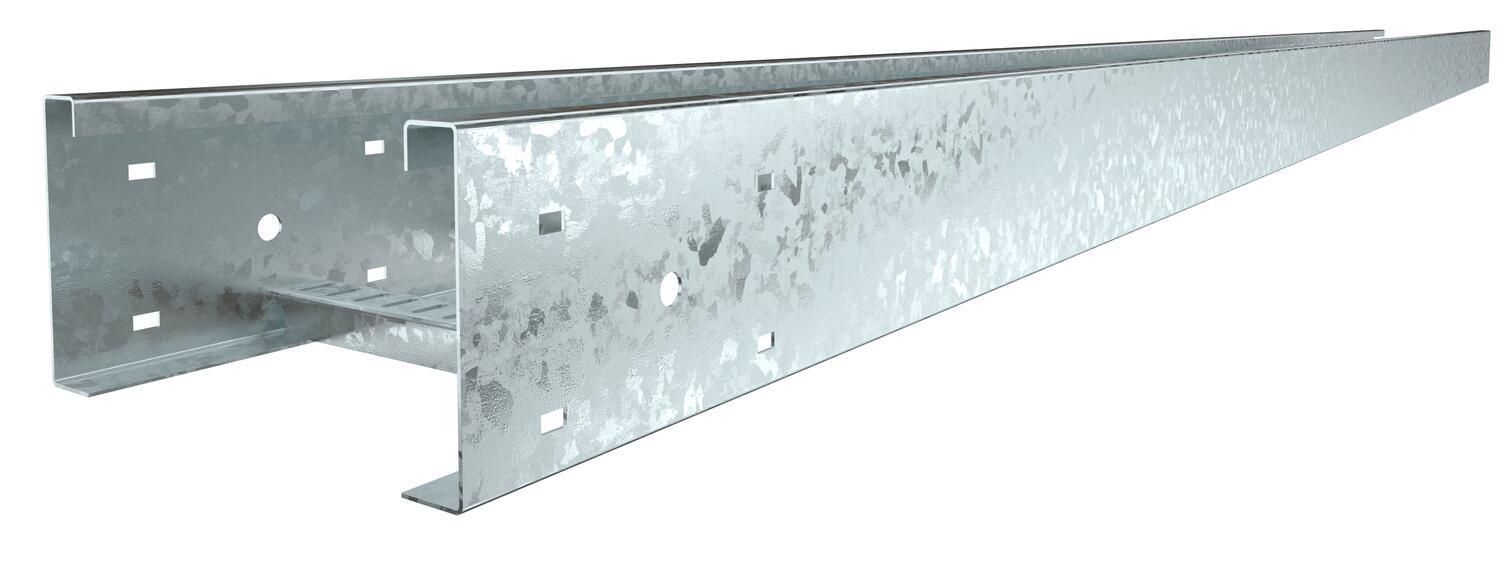

Heavy-duty SSP150 cable ladder system, welded version. The side height is 150 mm with a supply length of 6000 mm.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

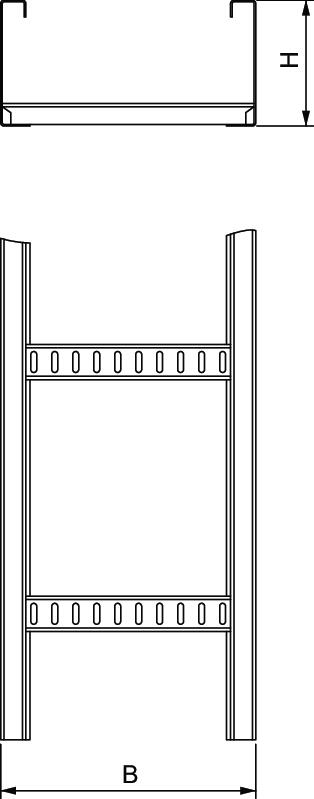

Dimension 6000x200x150
Dimension B 200 mm
Height 150 mm
Length 6000 mm
Length 6000 ft
Material Steel
Rail thickness 2 mm
Rung distance 300 mm
Support spacing 5.0 m 1,8 kN/m
Support spacing 6.0 m 1,4 kN/m
Support spacing 7.0 m 1 kN/m
Support spacing 8.0 m 0,7 kN/m
Surface Hot-dip galvanised
Width 200 mm

Technical data

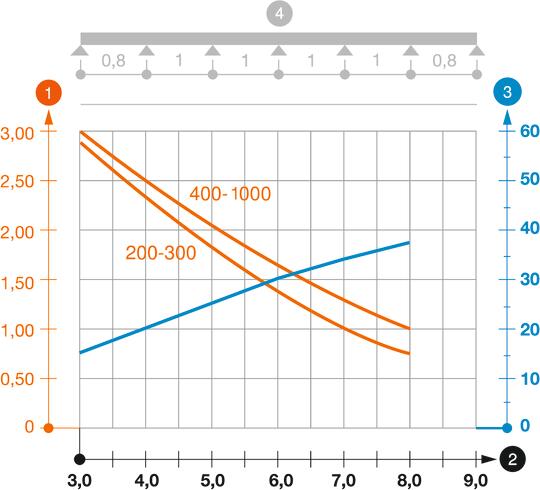

Load diagram, wide span cable ladder, type SSP150 Nema 20B

Load diagram, wide span cable ladder, type SSP150 Nema 20B
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
SSP150 200 HDG 6000 mm 200 mm 2 mm 6905353
6 m
SSP150 300 HDG 6000 mm 300 mm 2 mm 6905357
6 m
SSP150 400 HDG 6000 mm 400 mm 2 mm 6905361
6 m
SSP150 500 HDG 6000 mm 500 mm 2 mm 6905365
6 m
SSP150 600 HDG 6000 mm 600 mm 2 mm 6905369
6 m
SSP150 800 HDG 6000 mm 800 mm 2 mm 6905373
6 m
SSP150 1000 HDG 6000 mm 1000 mm 2 mm 6905377
6 m
