Cable ladder SSP130 Nema 20C, 6 m

Item no. 6905053 | EAN 4012196074259

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Product description

Product description

Heavy-duty SSP130 cable ladder system, welded version. The side height is 130 mm with a supply length of 6000 mm.

Technical data

Technical data

Dimension	6000x200x130
Dimension B	200 mm
Height	130 mm
Length	6000 mm
Length	6000 ft
Material	Steel
Rail thickness	2 mm

Rung distance	300 mm
Support spacing 3.0 m	2,75 kN/m
Support spacing 4.0 m	1,8 kN/m
Support spacing 6.0 m	1,6 kN/m
Surface	Hot-dip galvanised
Width	200 mm

All types

All types

Types	Length	Width	Rail thickness	Item no.	Quantity	SSU
SSP130 200 HDG	6000 mm	200 mm	2 mm	6905053	m	6 m
SSP130 300 HDG	6000 mm	300 mm	2 mm	6905057	m	6 m
SSP130 400 HDG	6000 mm	400 mm	2 mm	6905061	m	6 m
SSP130 500 HDG	6000 mm	500 mm	2 mm	6905065	m	6 m
SSP130 600 HDG	6000 mm	600 mm	2 mm	6905069	m	6 m
SSP130 800 HDG	6000 mm	800 mm	2 mm	6905073	m	6 m
SSP130 1000 HDG	6000 mm	1000 mm	2 mm	6905077	m	6 m

Downloads

Data sheet SSP130 200 HDG / 6905053 , 0.15MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

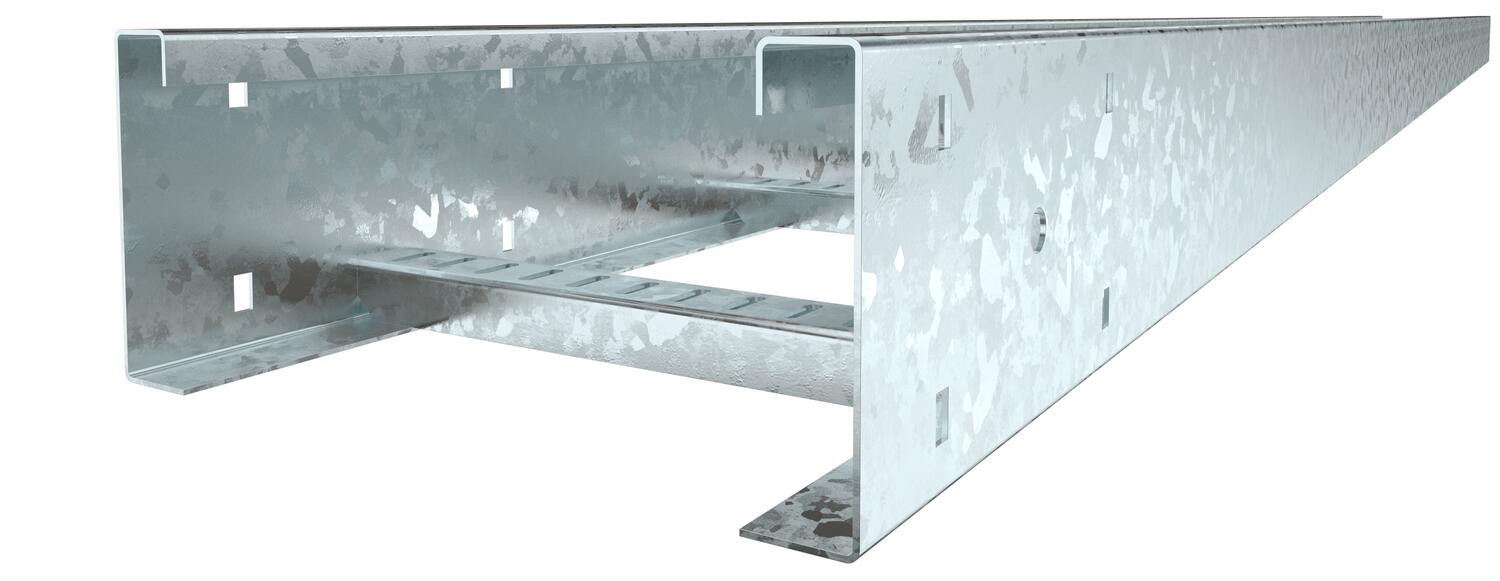

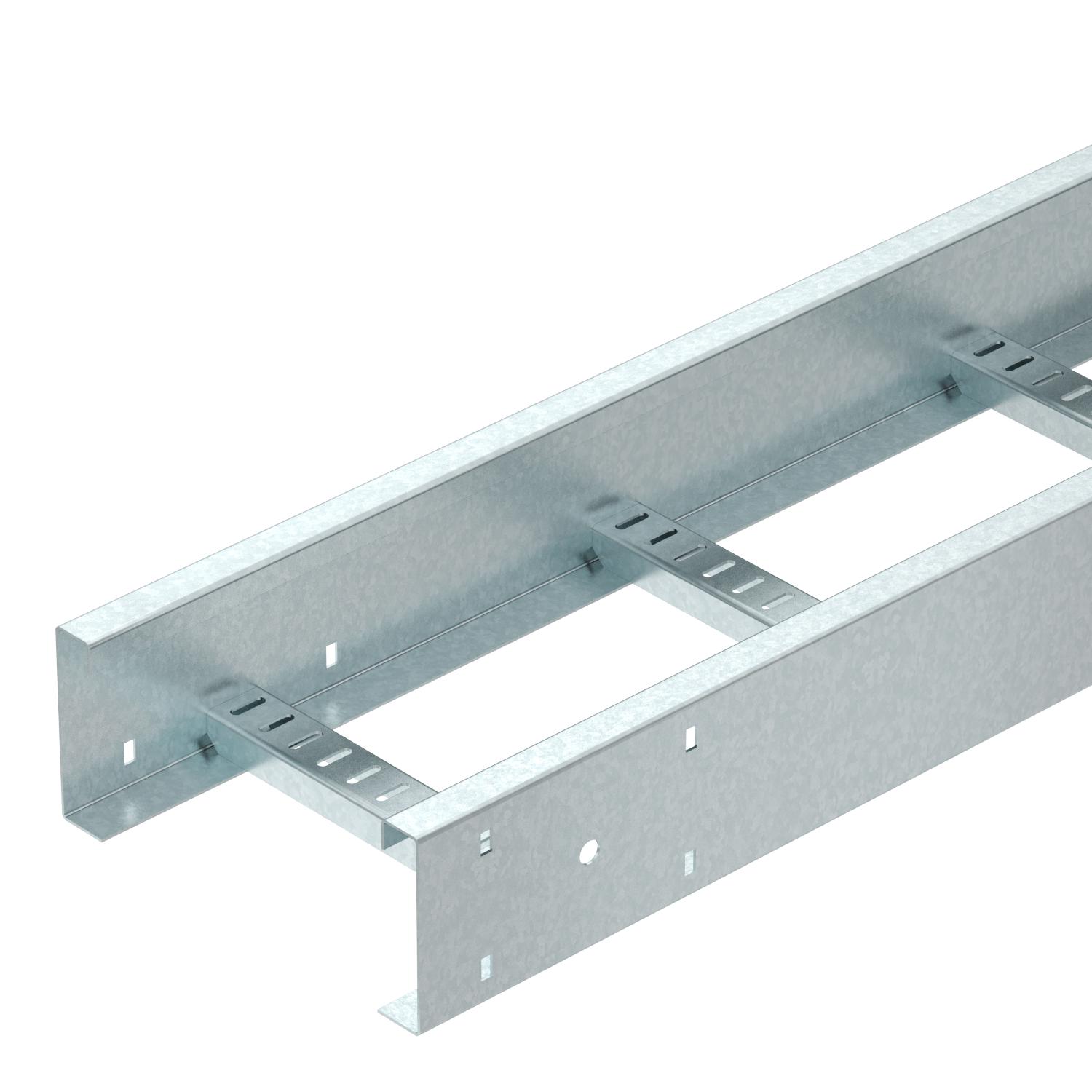

Product graphic SSP130 200 HDG / 6905053, 95.26 kB, jpg

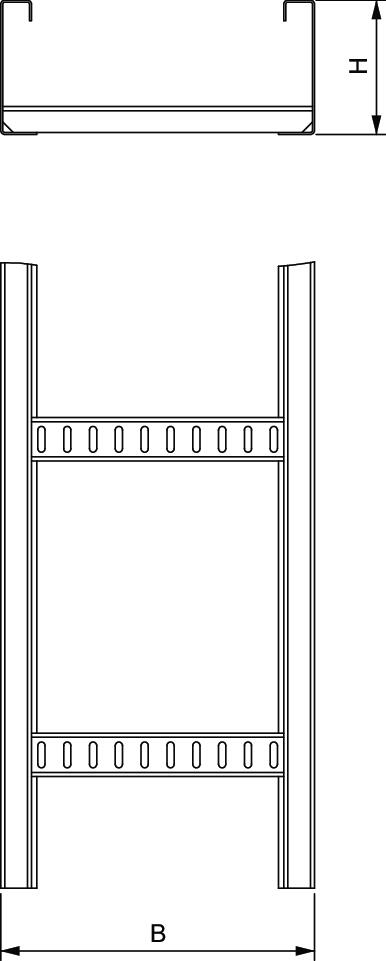

Scale drawing SSP130 200 HDG / 6905053, 3.53 kB, jpg

SSP130 200 HDG / 6905053
