Cable ladder SSP100 Nema 20B, 6 m 6000 | 200 | 1.6 |

morepic-1

morepic-2

Cable ladder SSP100 Nema 20B, 6 m

Item no. 6904603 | EAN 4012196073382

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.6 mm

Product description

Product description

Heavy-duty SSP100 cable ladder system Nema 20B, welded version. The side height is 100 mm with a supply length of 6,000 mm.

Technical data

Technical data

Dimension	6000x200x100
Dimension B	200 mm
Height	100 mm
Length	6000 ft
Length	6000 mm

Material	Steel
Rail thickness	1,6 mm
Rung distance	300 mm
Surface	Hot-dip galvanised
Width	200 mm

All types

All types

Types	Length	Width	Rail thickness	Item no.	Quantity	SSU
SSP100 200 HDG	6000 mm	200 mm	1.6 mm	6904603		1
SSP100 300 HDG	6000 mm	300 mm	1.6 mm	6904607		1
SSP100 400 HDG	6000 mm	400 mm	1.6 mm	6904611		1
SSP100 500 HDG	6000 mm	500 mm	1.6 mm	6904615		1
SSP100 600 HDG	6000 mm	600 mm	1.6 mm	6904619		1
SSP100 800 HDG	6000 mm	800 mm	1.6 mm	6904623		1
SSP100 1000 HDG	6000 mm	1000 mm	1.6 mm	6904627		1

Downloads

Data sheet SSP100 200 HDG / 6904603 , 0.17MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

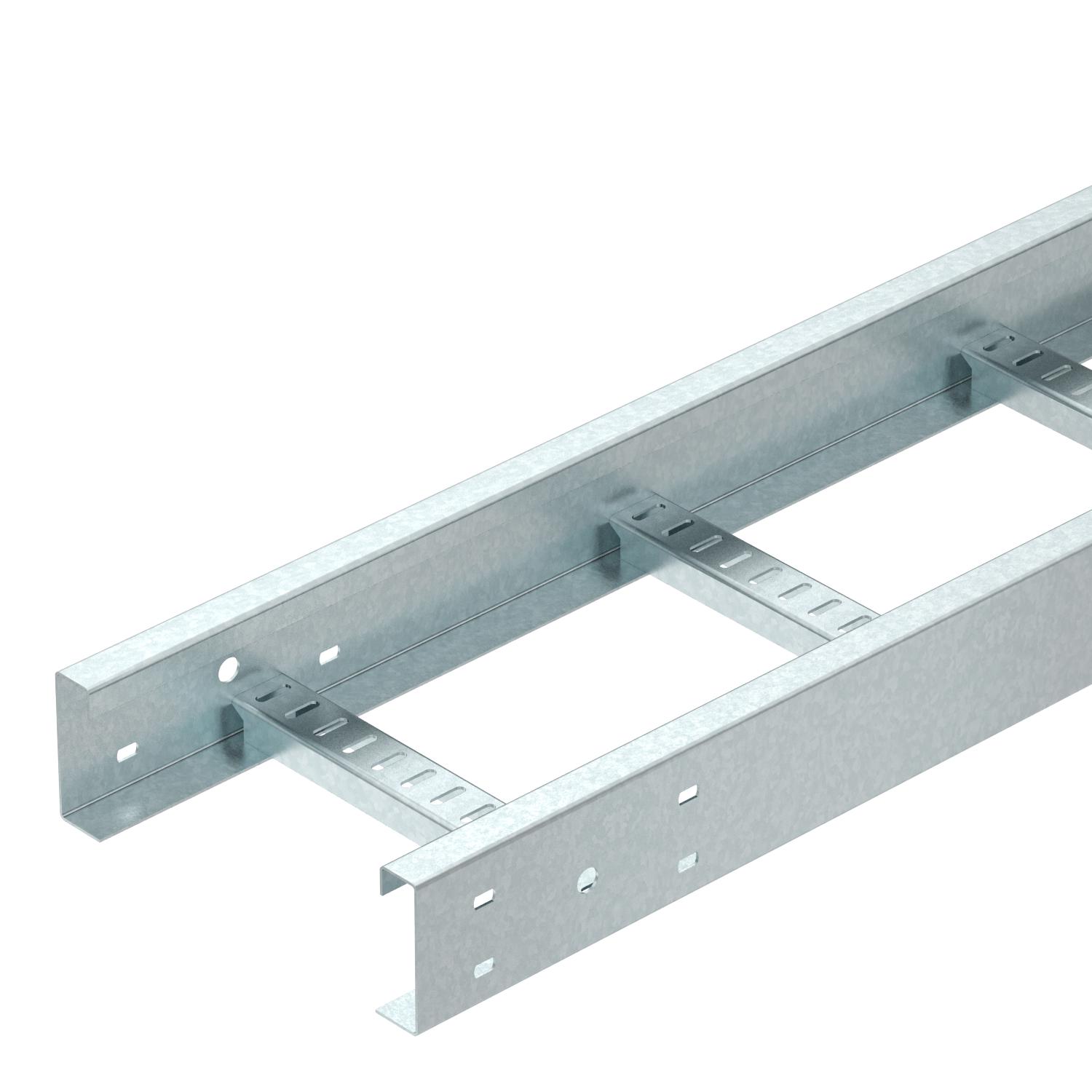

Product graphic SSP100 200 HDG / 6904603, 89.84 kB, jpg

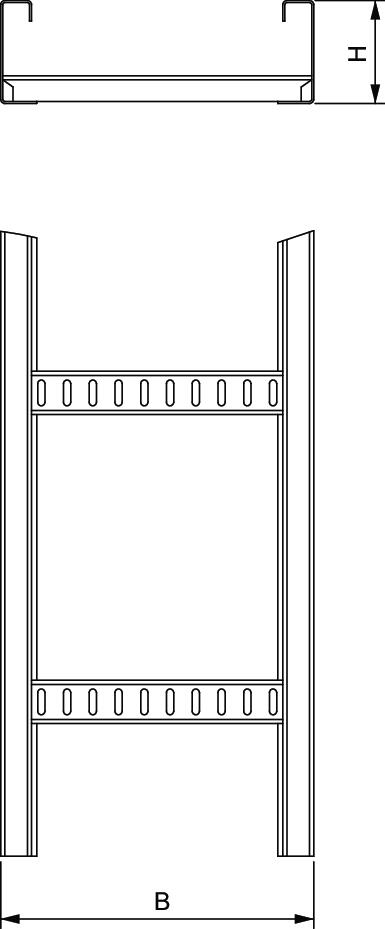

Scale drawing SSP100 200 HDG / 6904603, 3.53 kB, jpg

SSP100 200 HDG / 6904603
