Cable ladder PS150

Item no. 6904003 | EAN 4012196071920

3000 mm
2 mm
Product description

Product description

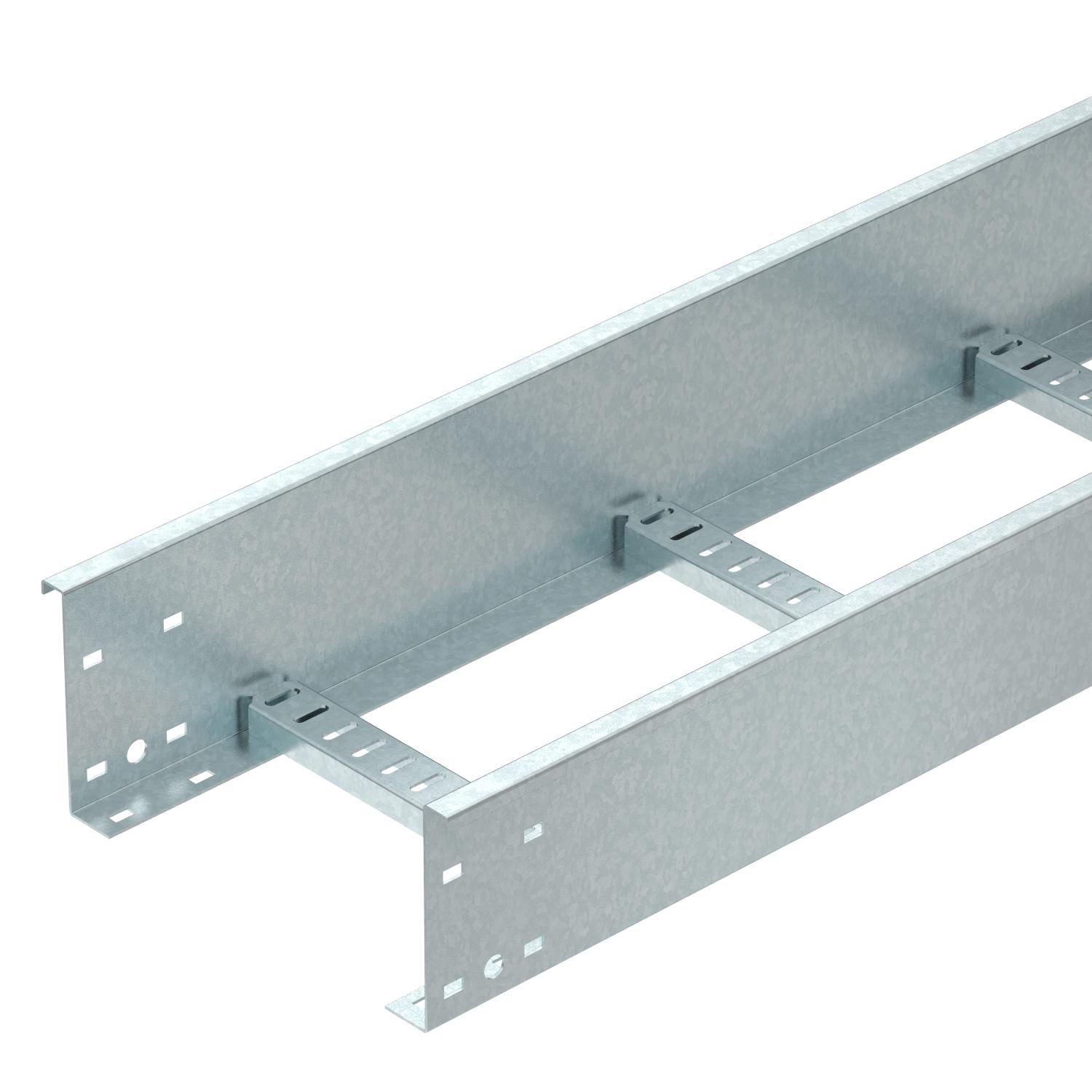

PS150 heavy-duty cable ladder system, welded version. The side height is 150 mm with a supply length of 3,000 mm.

6,000 mm delivery length on request.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

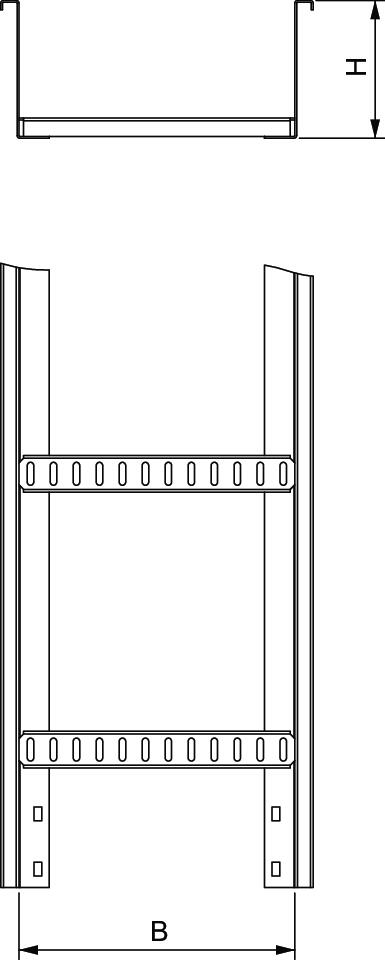

Dimension 150x200x3000
Dimension B 150 mm
Height 150 mm
Length 3000 ft
Length 3000 mm
Material Steel
Rail thickness 2 mm
Rung distance 300 mm
Surface Hot-dip galvanised
Width 150 mm
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
PS150 150 HDG 3000 mm 150 mm 2 mm 6904003
1
PS150 200 HDG 3000 mm 200 mm 2 mm 6904007
1
PS150 300 HDG 3000 mm 300 mm 2 mm 6904011
1
PS150 400 HDG 3000 mm 400 mm 2 mm 6904015
1
PS150 500 HDG 3000 mm 500 mm 2 mm 6904019
1
PS150 600 HDG 3000 mm 600 mm 2 mm 6904023
1
PS150 800 HDG 3000 mm 800 mm 2 mm 6904027
1
PS150 1000 HDG 3000 mm 1000 mm 2 mm 6904031
1
