Cable ladder PS100, 3 m 3000 | 150 | 2 |

Cable ladder PS100, 3 m

Item no. 6903703 | EAN 4012196071210

Item no. / Types

Length	3000 mm

Width

Rail thickness	2 mm

Product description

Product description

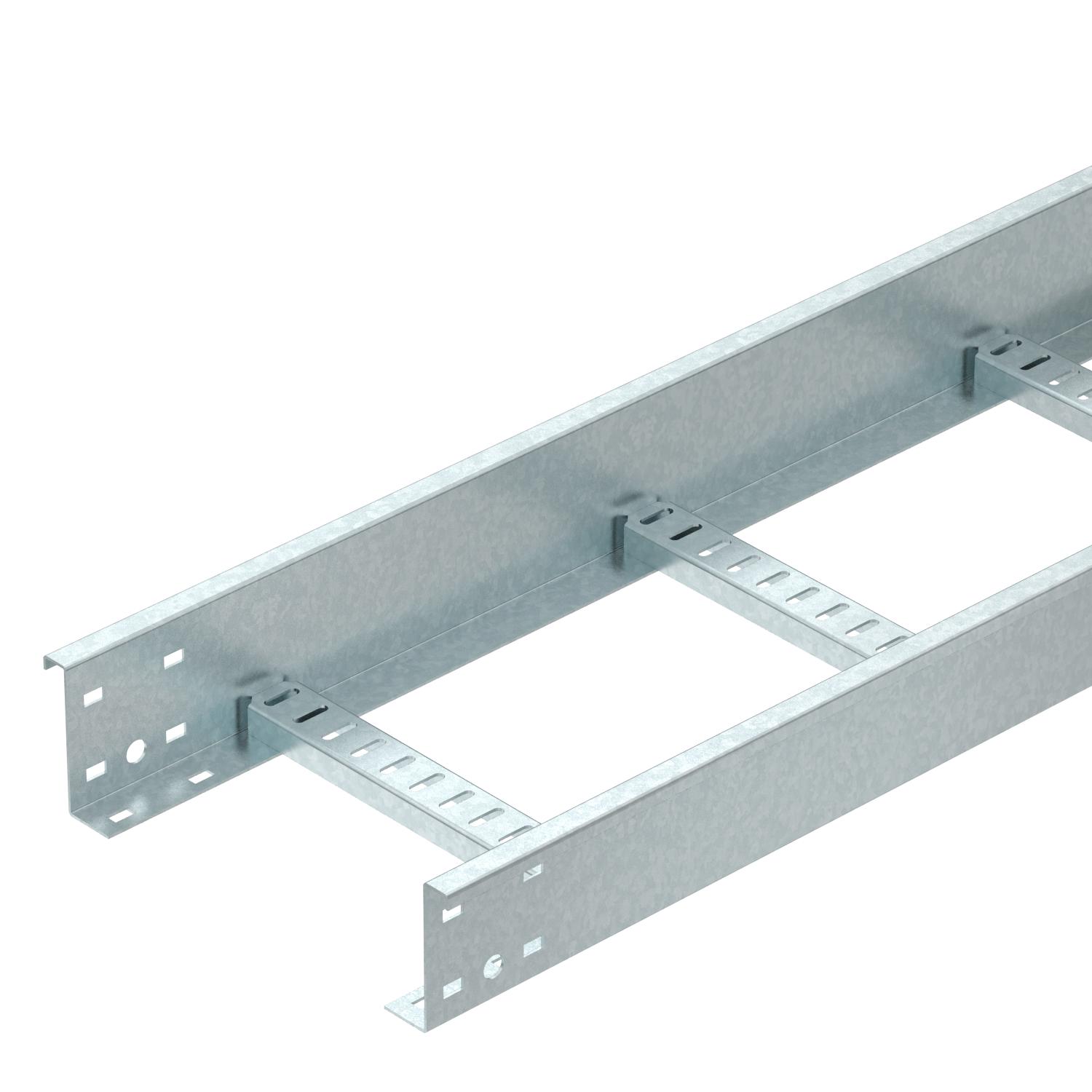

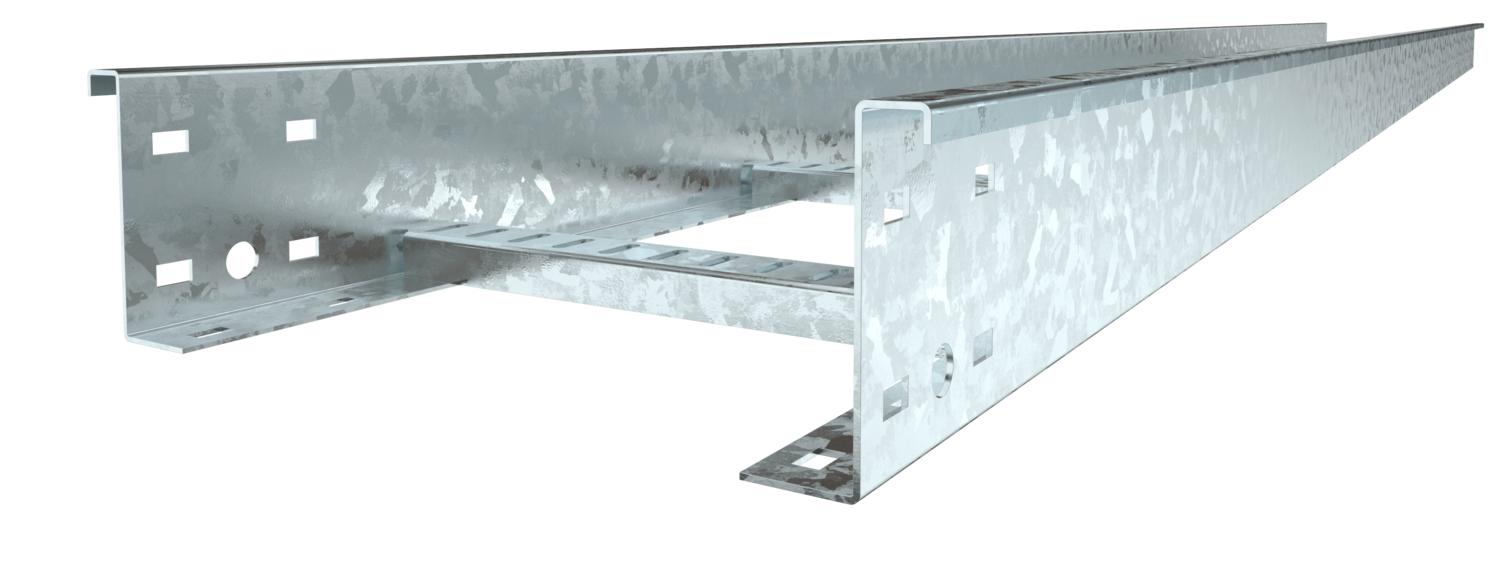

PS100 heavy-duty cable ladder system, welded version. The side height is 100 mm with a supply length of 3,000 mm.

6,000 mm delivery length on request.

Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

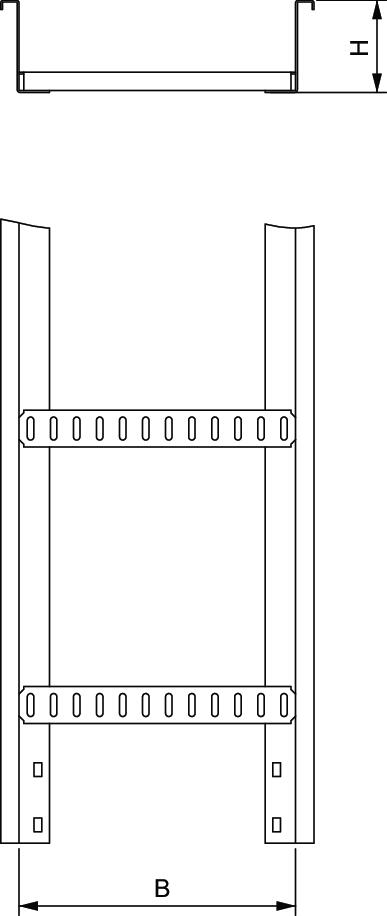

Dimension	100x200x3000
Dimension B	150 mm
Height	100 mm
Length	3000 mm
Length	3000 ft

Material	Steel
Rail thickness	2 mm
Rung distance	300 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Length	Width	Rail thickness	Item no.	Quantity	SSU
PS100 150 HDG	3000 mm	150 mm	2 mm	6903703	m	3 m
PS100 200 HDG	3000 mm	200 mm	2 mm	6903707	m	3 m
PS100 300 HDG	3000 mm	300 mm	2 mm	6903711	m	3 m
PS100 400 HDG	3000 mm	400 mm	2 mm	6903715	m	3 m
PS100 500 HDG	3000 mm	500 mm	2 mm	6903719	m	3 m
PS100 600 HDG	3000 mm	600 mm	2 mm	6903723	m	3 m
PS100 800 HDG	3000 mm	800 mm	2 mm	6903727	m	3 m
PS100 1000 HDG	3000 mm	1000 mm	2 mm	6903731	m	3 m
