Cable ladder OL76, 3 m

Item no. 6902807 | EAN 4012196069002

Item no. / Types

Length	3000 mm

Width

Rail thickness

Product description

Product description

Medium-duty OL76 cable ladder system, welded version. The side height is 76 mm with a supply length of 3000 mm.

6000 mm delivery length on request.

Technical data

Technical data

Dimension	76x200x3000
Dimension B	150 mm
Height	76 mm
Length	3000 ft
Length	3000 mm
Material	Steel
Rail thickness	1,6 mm

Rung distance	300 mm
Support spacing 1.5 m	1,9 kN/m
Support spacing 2.0 m	0,9 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Length	Width	Rail thickness	Item no.	Quantity	SSU
OL76 150 HDG	3000 mm	150 mm	1.6 mm	6902807	m	3 m
OL76 200 HDG	3000 mm	200 mm	1.6 mm	6902811	m	3 m
OL76 300 HDG	3000 mm	300 mm	1.6 mm	6902815	m	3 m
OL76 400 HDG	3000 mm	400 mm	1.6 mm	6902819	m	3 m
OL76 500 HDG	3000 mm	500 mm	2 mm	6902823	m	3 m
OL76 600 HDG	3000 mm	600 mm	2 mm	6902827	m	3 m
OL76 800 HDG	3000 mm	800 mm	2 mm	6902831	m	3 m
OL76 1000 HDG	3000 mm	1000 mm	2 mm	6902835	m	3 m

Downloads

Data sheet OL76 150 HDG / 6902807 , 0.16MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

EU declaration of conformity OL76 150 HDG / 6902807 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

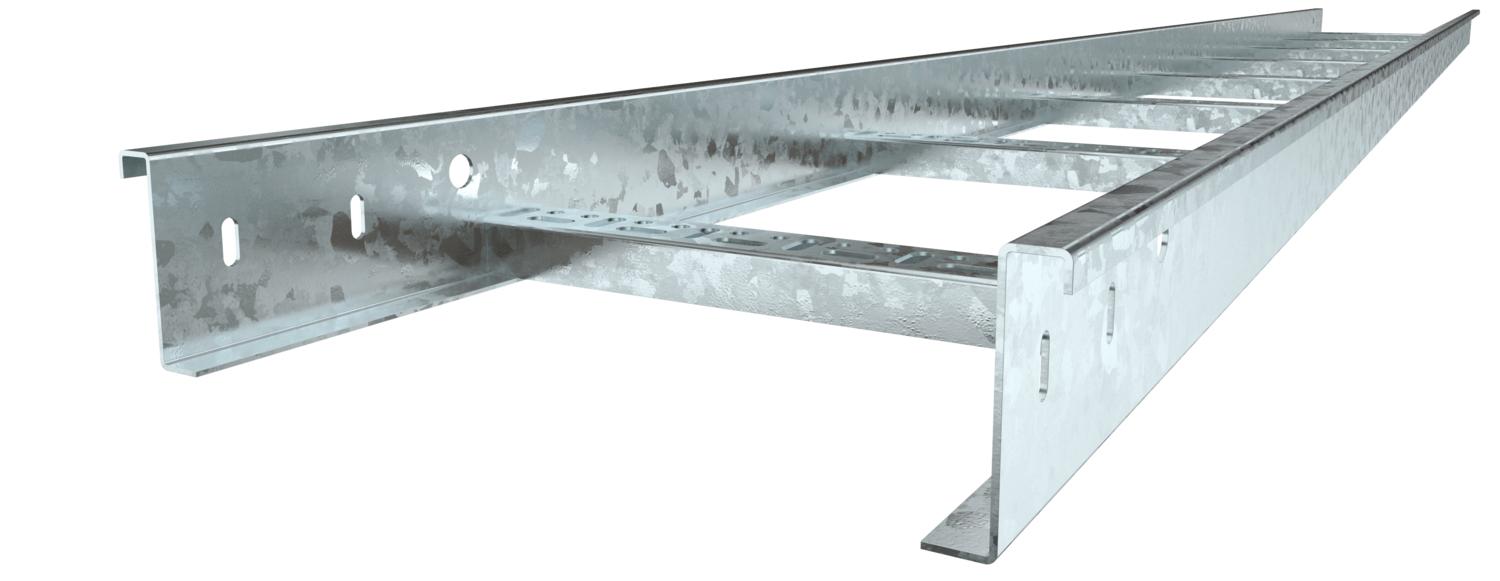

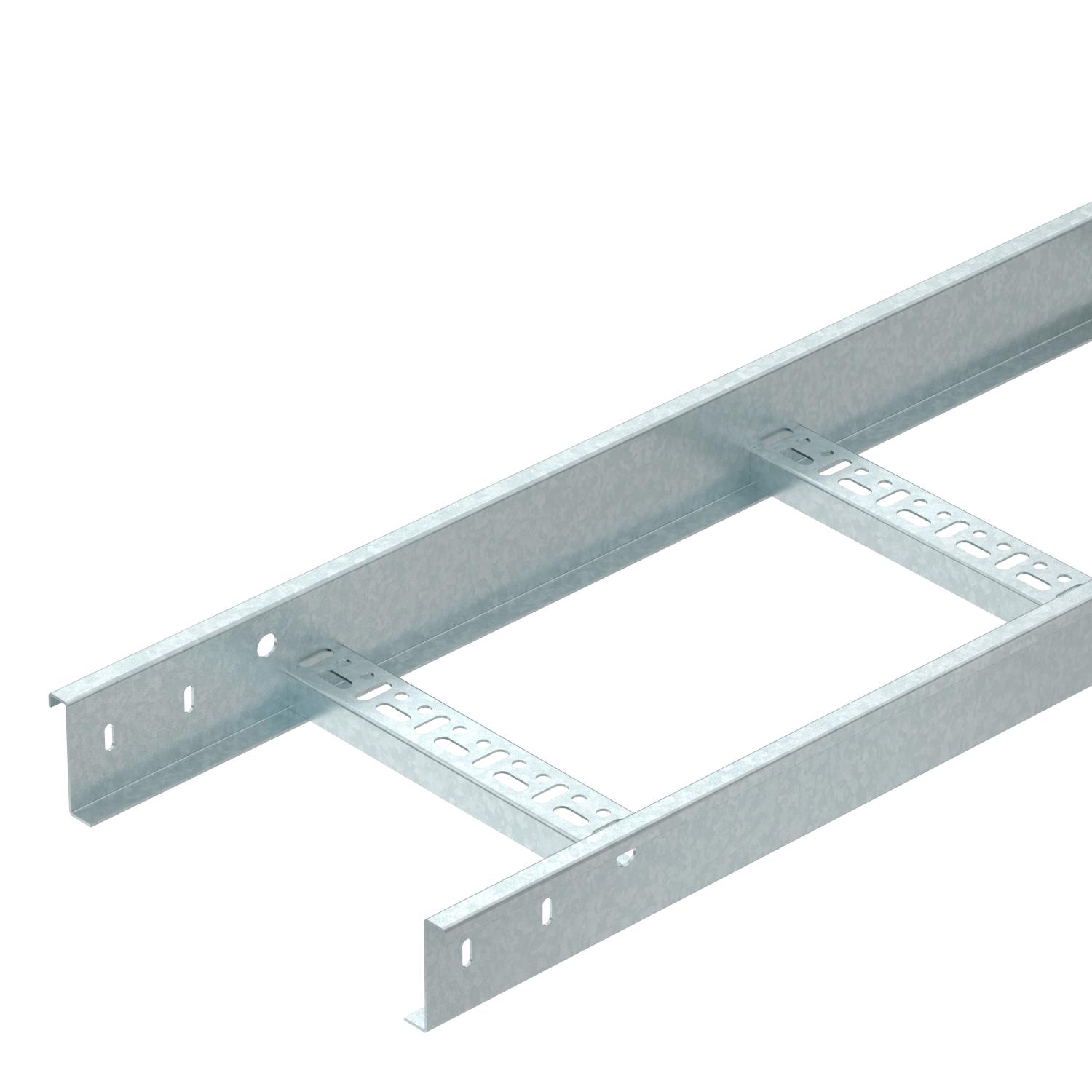

Product graphic OL76 150 HDG / 6902807, 79.54 kB, jpg

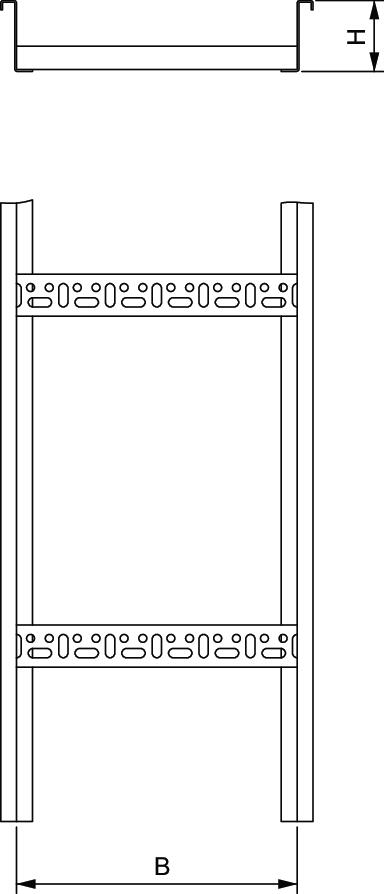

Scale drawing OL76 150 HDG / 6902807, 3.52 kB, jpg

OL76 150 HDG / 6902807
