Cable ladder OL55, 3 m
Item no. 6902503 | EAN 4012196068432
- Product description
-

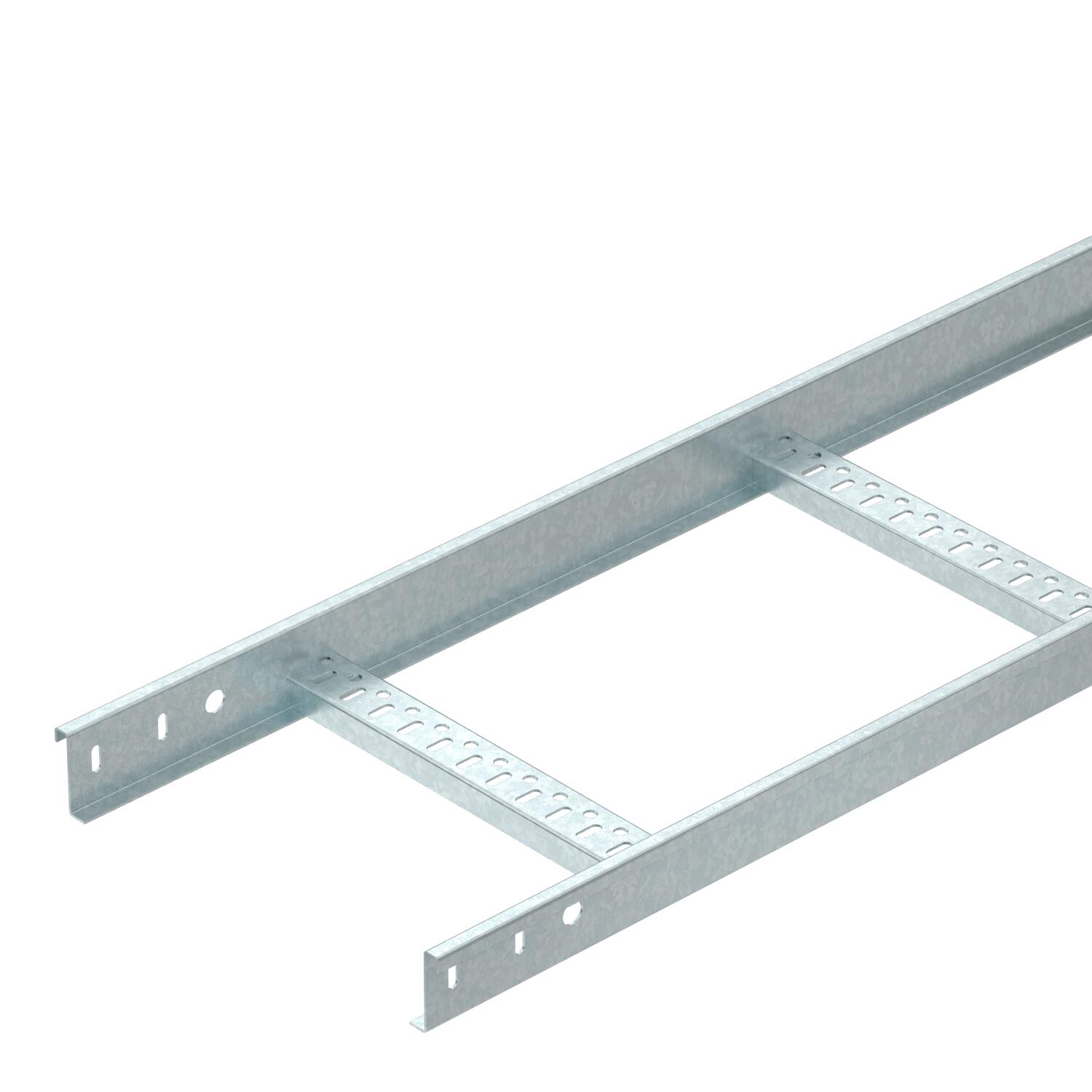

Product descriptionLight-duty OL55 cable ladder system, welded version. The side height is 55 mm with a supply length of 3000 mm.
-
- Technical data
-
Technical data

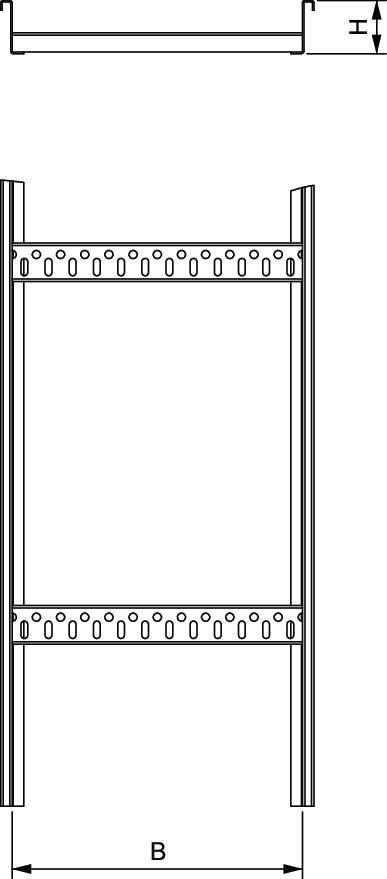

Dimension 55x150x3000 Dimension B 100 mm Height 55 mm Length 3000 ft Length 3000 mm Material Steel Rail thickness 1,6 mm Rung distance 300 mm Support spacing 1.0 m 1,9 kN/m Support spacing 1.5 m 1,35 kN/m Support spacing 2.0 m 0,75 kN/m Surface Hot-dip galvanised Width 100 mm - All types
- Downloads
-
Data sheet OL55 100 HDG / 6902503 , 0.14MB , pdfCatalogue Cable support systems , 2.10MB , pdfEU declaration of conformity OL55 100 HDG / 6902503 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
