Cable ladder AI50, 3 m 3000 | 150 | 5 |
morepic-1 morepic-2 video-1

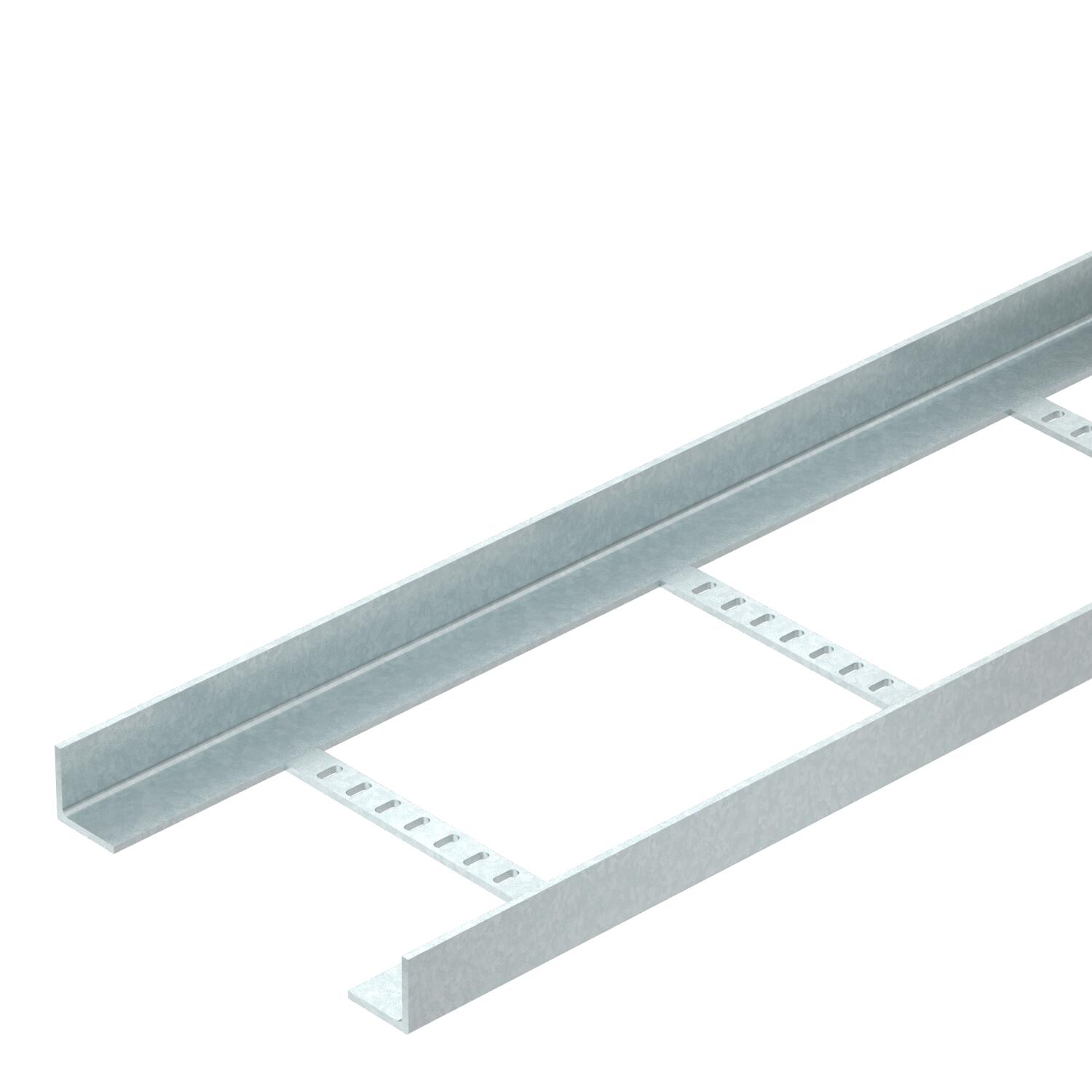

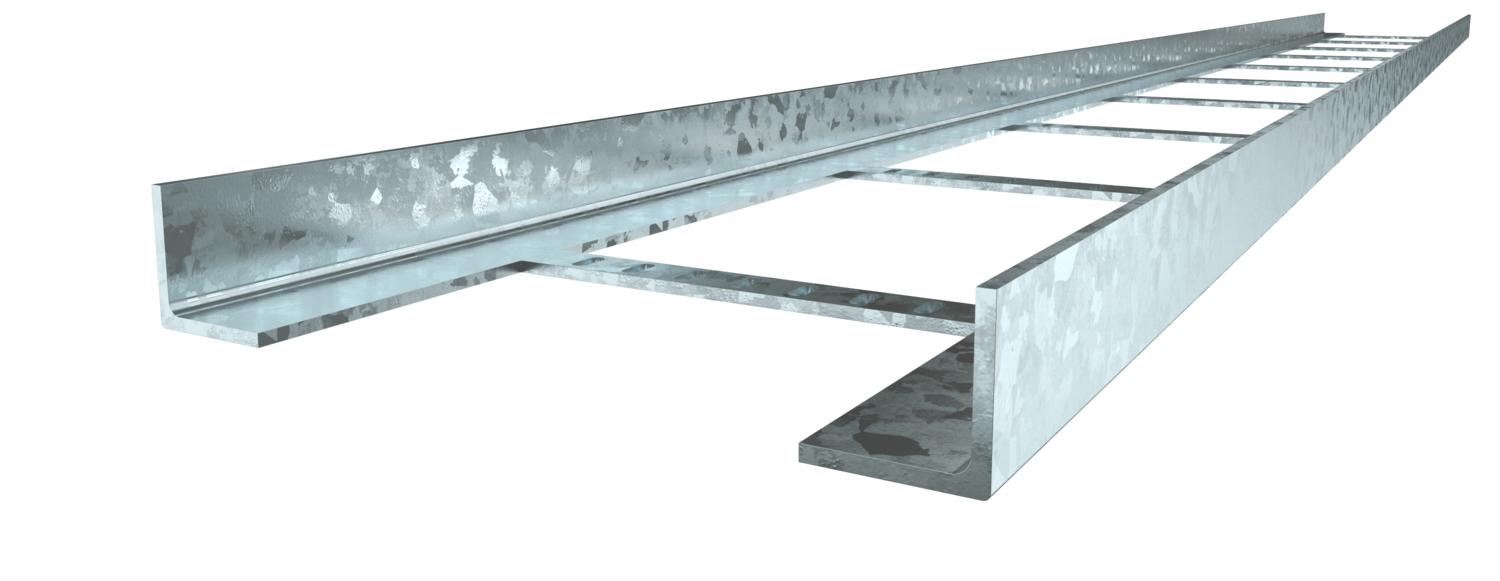

Cable ladder AI50, 3 m

Item no. 6908003 | EAN 4012196079568

3000 mm
5 mm
Product description
Product description
AI50 cable ladder system, welded version. The side height is 50 mm with a supply length of 3,000 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 3000x160x50
Dimension B 150 mm
Height 50 mm
Length 3000 mm
Length 3000 ft
Material Steel
Rail thickness 5 mm
Rung distance 300 mm
Surface Hot-dip galvanised
Width 150 mm
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
AI50 150 HDG 3000 mm 150 mm 5 mm 6908003
1
AI50 200 HDG 3000 mm 200 mm 5 mm 6908007
1
AI50 300 HDG 3000 mm 300 mm 5 mm 6908011
1
AI50 400 HDG 3000 mm 400 mm 5 mm 6908015
1
AI50 500 HDG 3000 mm 500 mm 5 mm 6908019
1
AI50 600 HDG 3000 mm 600 mm 5 mm 6908023
1
AI50 800 HDG 3000 mm 800 mm 5 mm 6908027
1
AI50 1000 HDG 3000 mm 1000 mm 5 mm 6908031
1
Downloads

Download

Download
Download
Download

Download

AI50 150 HDG / 6908003
