Cable ladder AI40, 3 m 3000 | 150 | 5 |
morepic-1 morepic-2 video-1

Cable ladder AI40, 3 m

Item no. 6907603 | EAN 4012196078967

3000 mm
5 mm
Product description
Product description

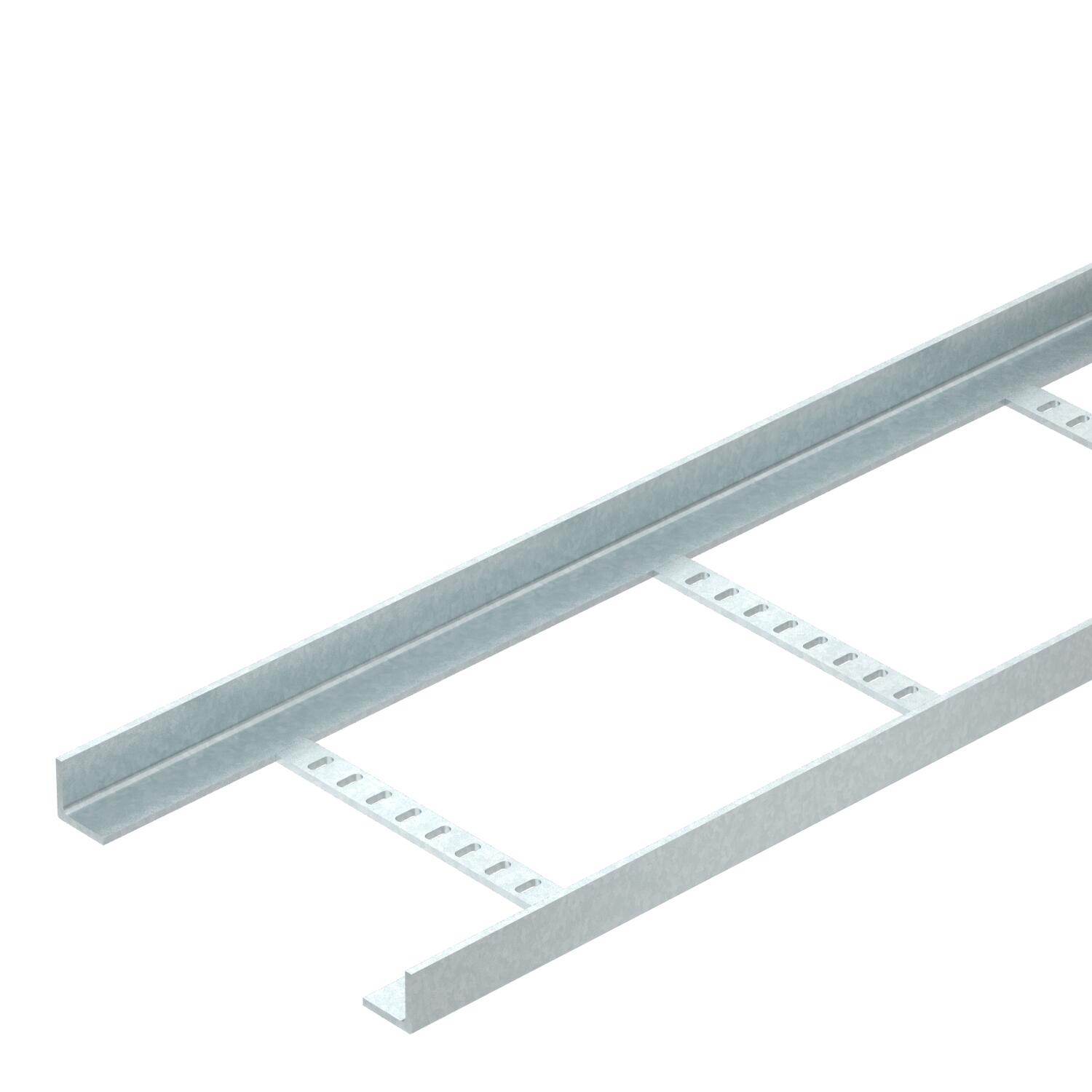

AI40 cable ladder system, welded version. The side height is 40 mm with a supply length of 3,000 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

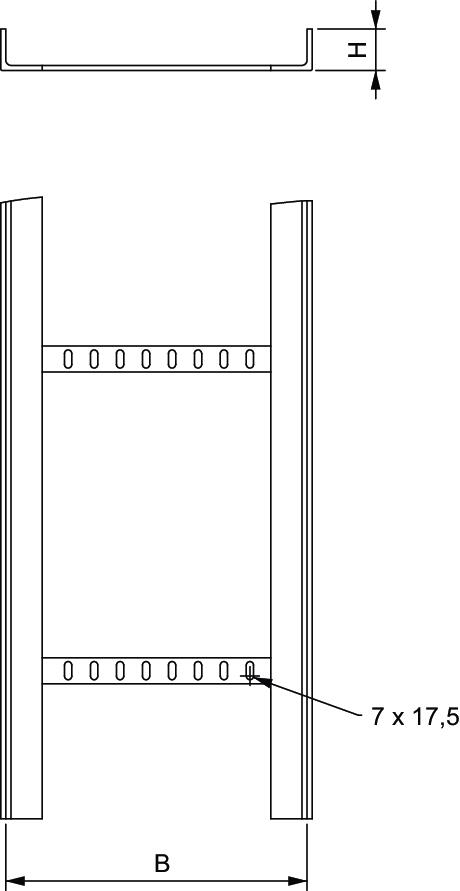

Dimension 3000x160x40
Dimension B 150 mm
Height 40 mm
Length 3000 mm
Length 3000 ft
Material Steel
Rail thickness 5 mm
Rung distance 300 mm
Surface Hot-dip galvanised
Width 150 mm
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
AI40 150 HDG 3000 mm 150 mm 5 mm 6907603
1
AI40 200 HDG 3000 mm 200 mm 5 mm 6907607
1
AI40 300 HDG 3000 mm 300 mm 5 mm 6907611
1
AI40 400 HDG 3000 mm 400 mm 5 mm 6907615
1
AI40 500 HDG 3000 mm 500 mm 5 mm 6907619
1
AI40 600 HDG 3000 mm 600 mm 5 mm 6907623
1
AI40 800 HDG 3000 mm 800 mm 5 mm 6907627
1
AI40 1000 HDG 3000 mm 1000 mm 5 mm 6907631
1
