Cable ladder AI25, 3 m

Item no. 6907003 | EAN 4012196077632

3000 mm
5 mm
Product description
Product description

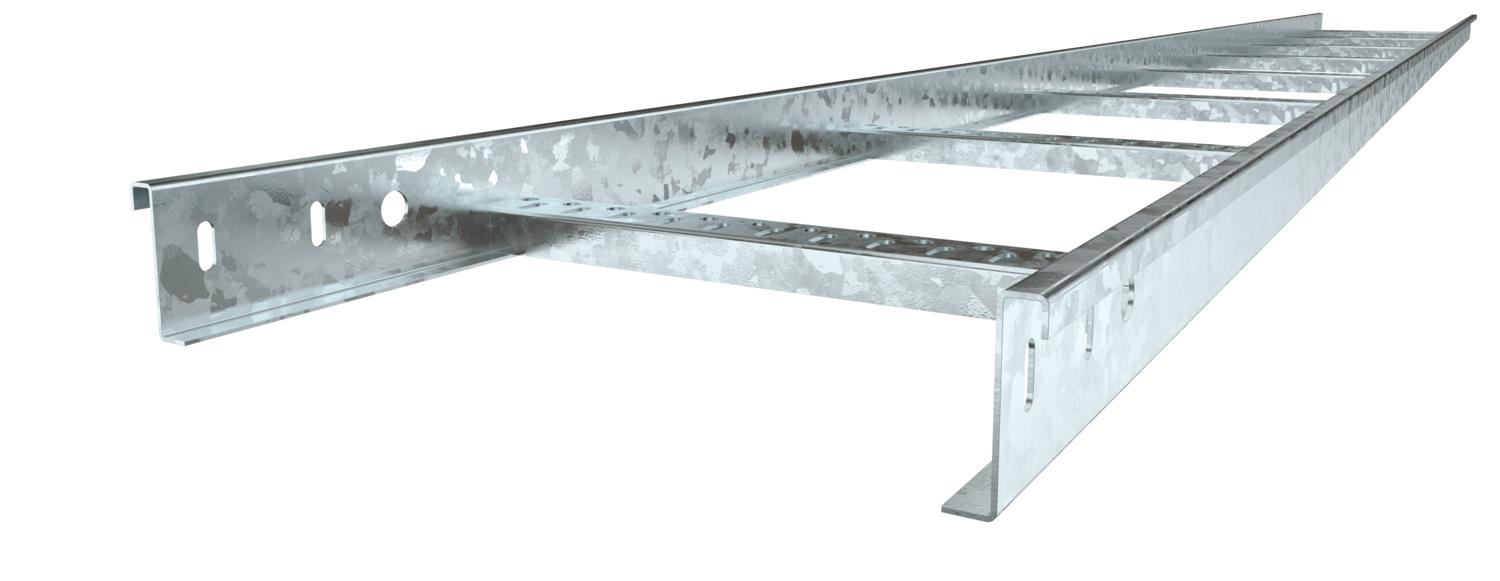

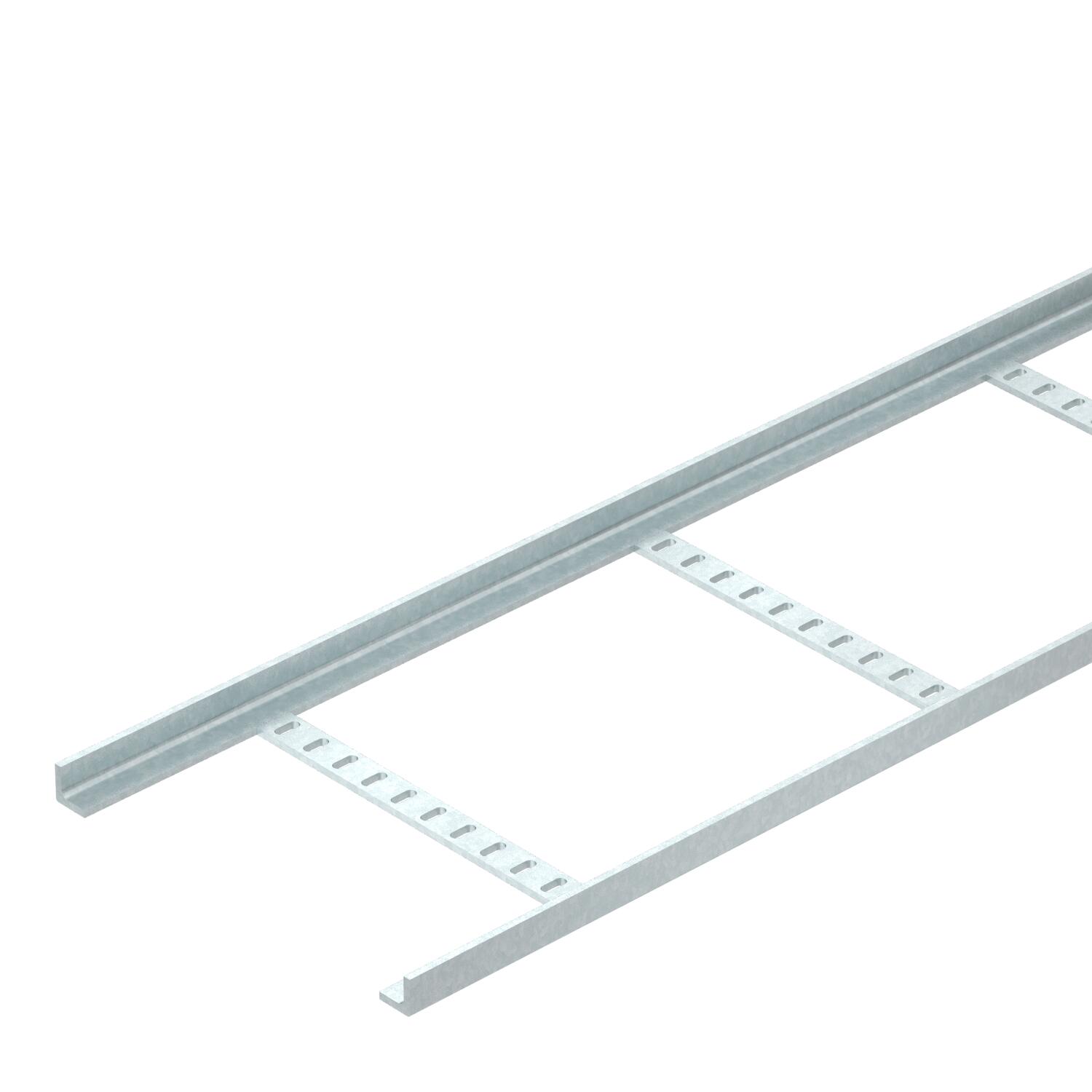

AI25 cable ladder system, welded version. The side height is 25 mm with a supply length of 3,000 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

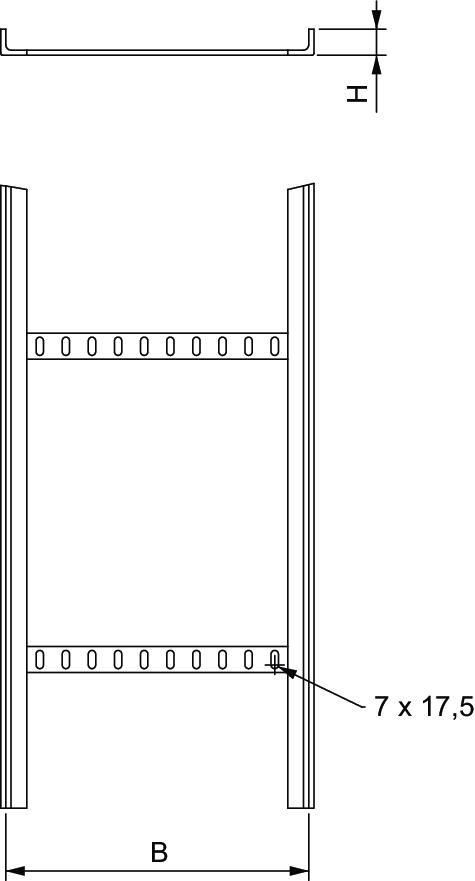

Dimension 3000x160x25
Dimension B 150 mm
Height 25 mm
Length 3000 mm
Length 3000 ft
Material Steel
Rail thickness 5 mm
Rung distance 300 mm
Surface Hot-dip galvanised
Width 150 mm
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
AI25 150 HDG 3000 mm 150 mm 5 mm 6907003
1
AI25 200 HDG 3000 mm 200 mm 5 mm 6907007
1
AI25 300 HDG 3000 mm 300 mm 5 mm 6907011
1
AI25 400 HDG 3000 mm 400 mm 5 mm 6907015
1
AI25 500 HDG 3000 mm 500 mm 5 mm 6907019
1
AI25 600 HDG 3000 mm 600 mm 5 mm 6907023
1
AI25 800 HDG 3000 mm 800 mm 5 mm 6907027
1
AI25 1000 HDG 3000 mm 1000 mm 5 mm 6907031
1
