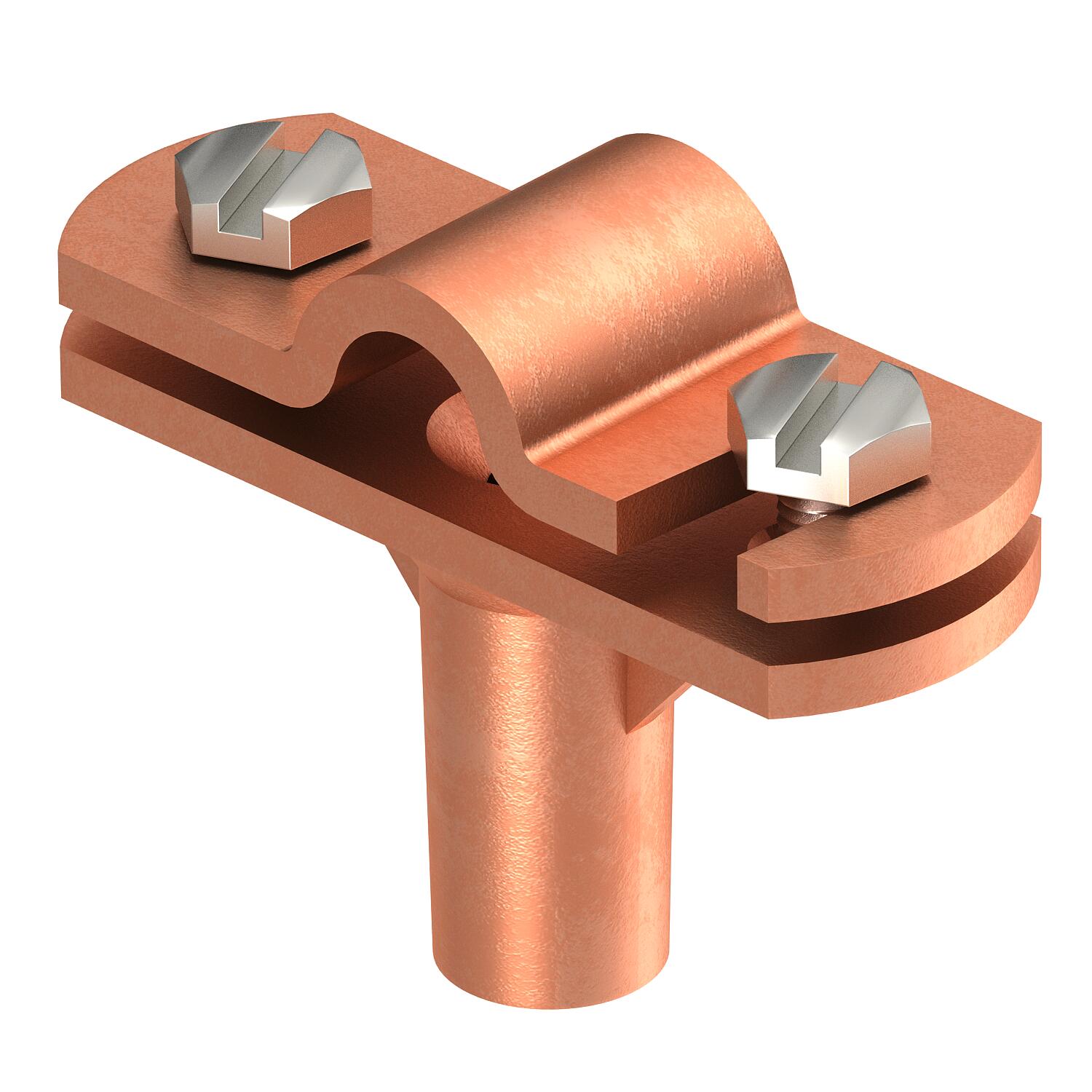

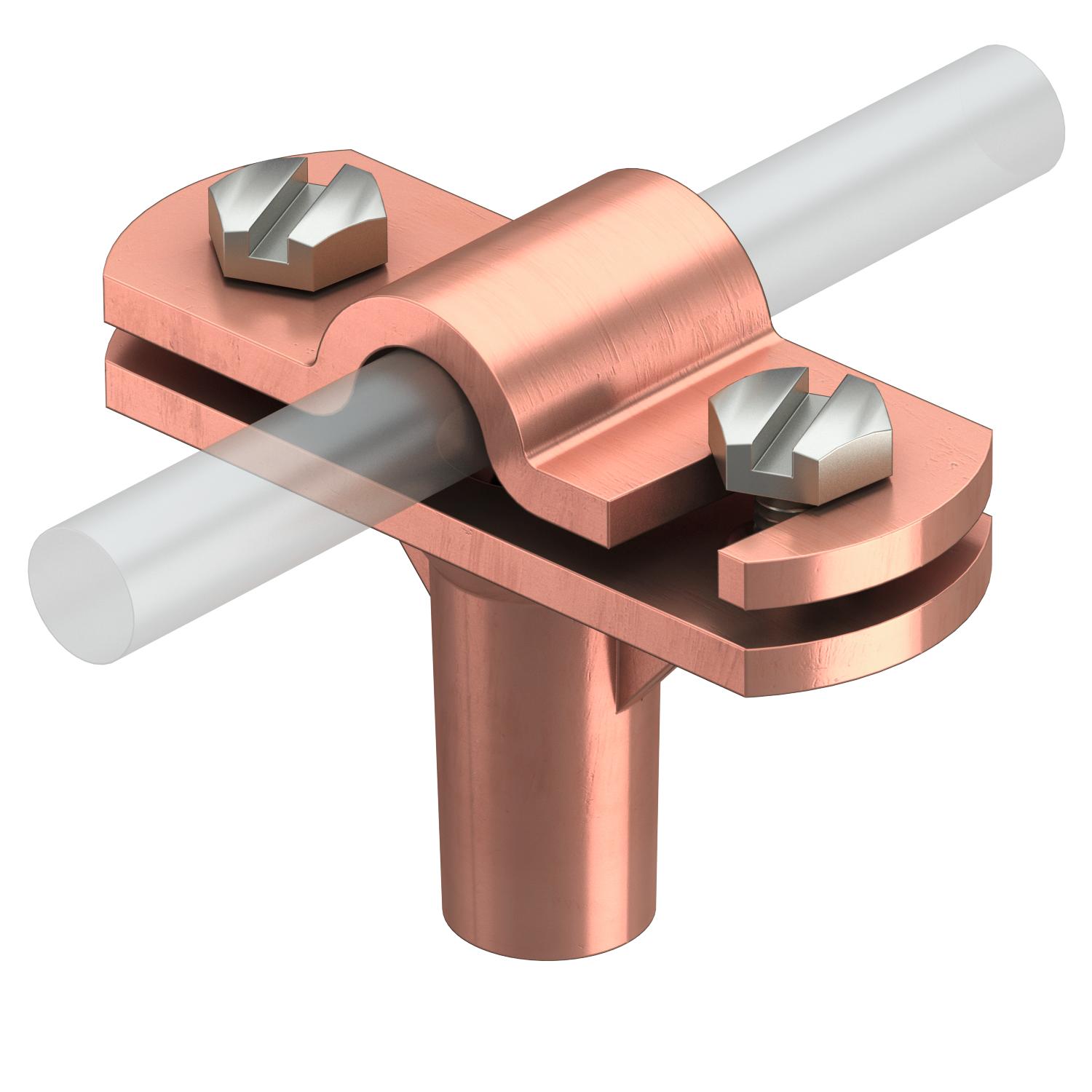

Cable bracket with hinged crossbar
Item no. 5229367 | EAN 4012195411550
- Product description
-
Product description
• With female thread (G)
• With over-piece and 2 hexagonal bolts

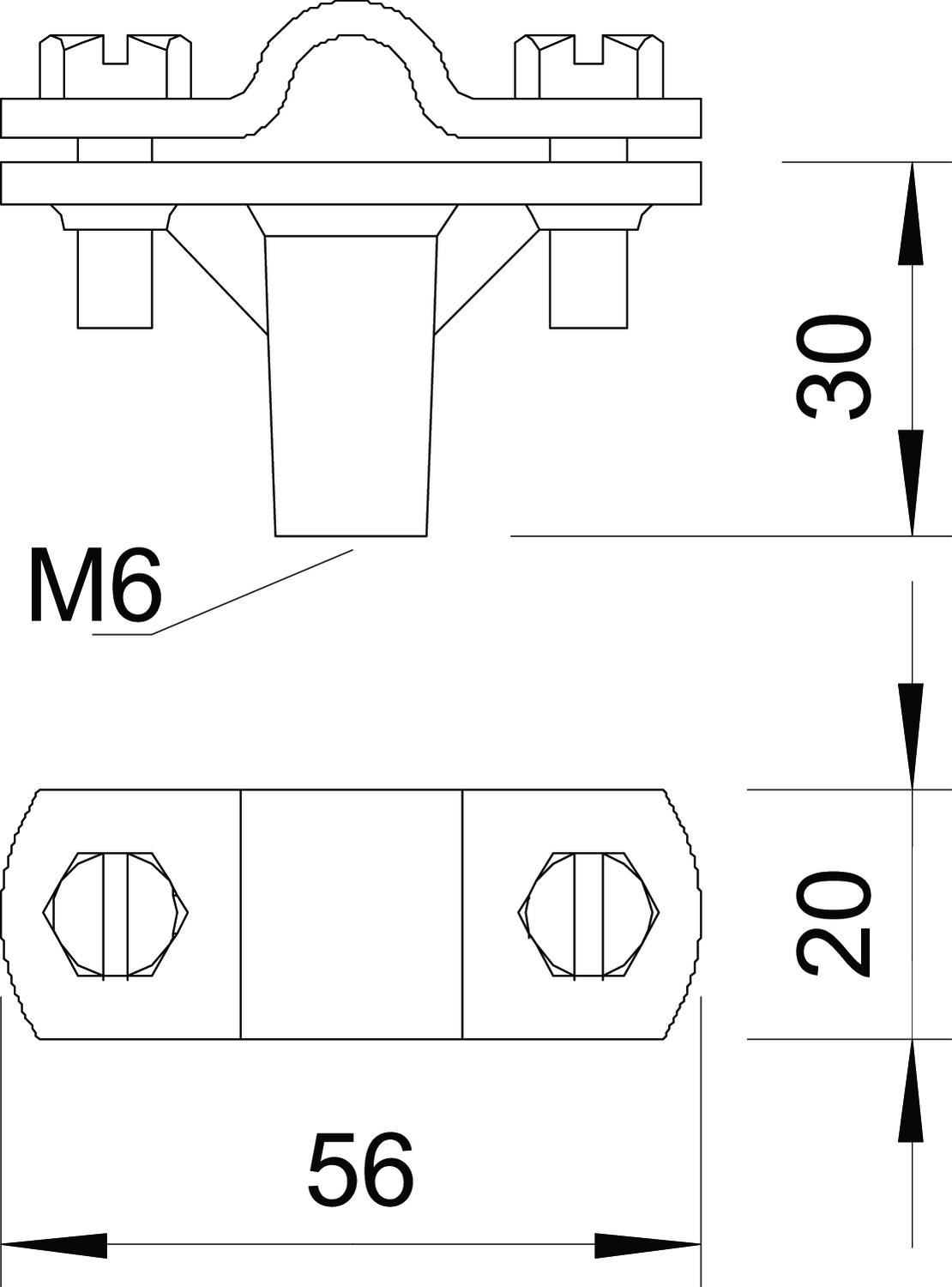

• Installed height 30 mm
- Technical data
-
Technical data
Cable dimensions 8−10 mm round Conductor fastening type With screw clip Dimension 8-10mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface Copper-plated Thread M6 Thread metric 6 Use in Ex area yes - All types
- Downloads
-
Data sheet 168 ZN-M6 / 5229367 , 0.18MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,
