Cable bracket Rd 8−10 mm, with wood screw thread 8−10 mm round |

Cable bracket Rd 8−10 mm, with wood screw thread

Item no. 5227151 | EAN 4012195410713

Item no. / Types

Cable dimensions	8−10 mm round

Product description

Product description

• Also for flat conductor to FL 30
• With wood screw thread
• Bottom section, hot-dip galvanised cast iron
• Over-piece and screws, hot dipped galvanised steel

Technical data

Technical data

Cable dimensions	8−10 mm round
Conductor fastening type	With screw clip

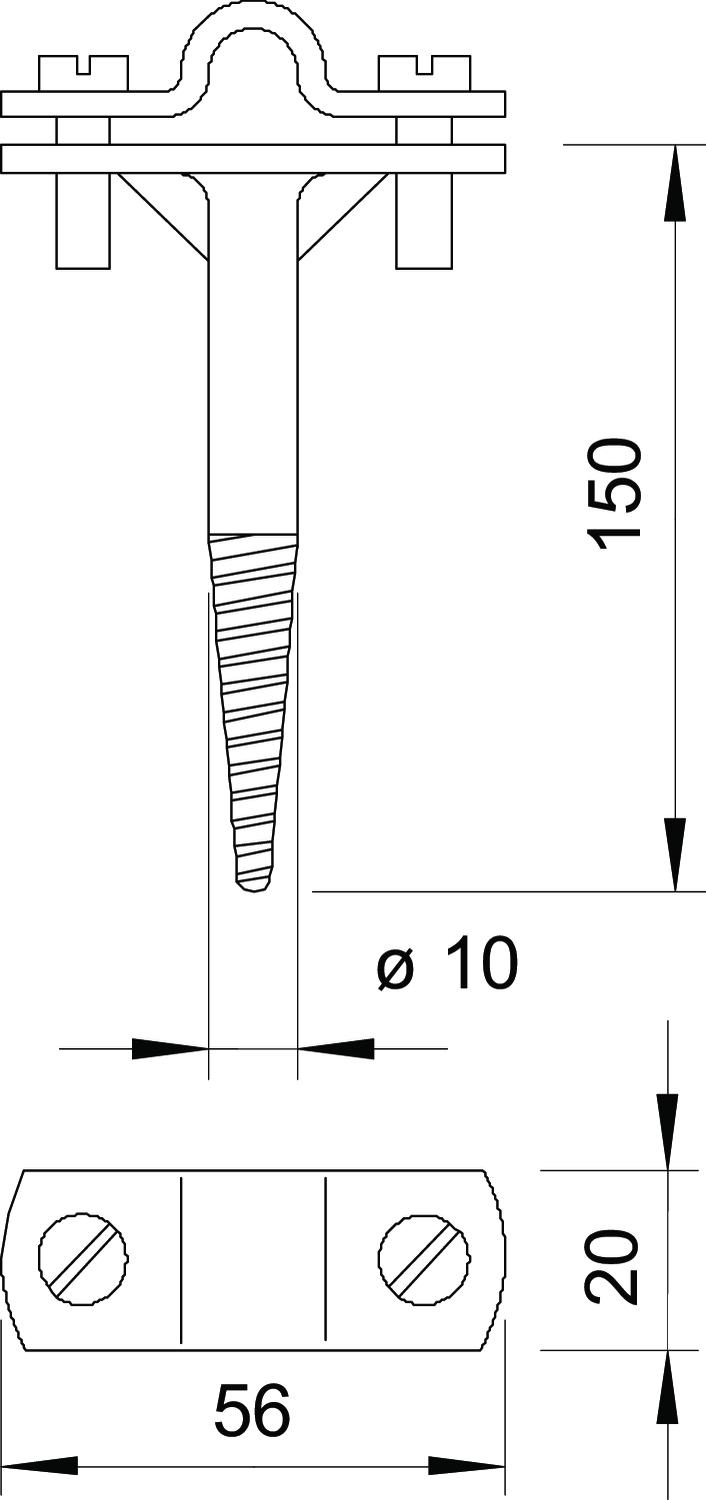

Dimension	150mm
Dimension H	150 mm
High voltage-resistant, insulated version	no
Holder fastening type	With wood screw thread tip
Length	150 mm

Material	cast steel
Material of the base	Malleable iron
Material of the crossbar	Malleable iron
Material of the holder	Malleable iron
Surface	Hot galvanized
Use in Ex area	yes

All types

All types

Types	Cable dimensions	Item no.	Quantity	SSU
176 A 65	8−10 mm round	5227070	piece	50 piece
176 A 80	8−10 mm round	5227089	piece	50 piece
176 A 100	8−10 mm round	5227100	piece	50 piece
176 A 150	8−10 mm round	5227151	piece	20 piece
