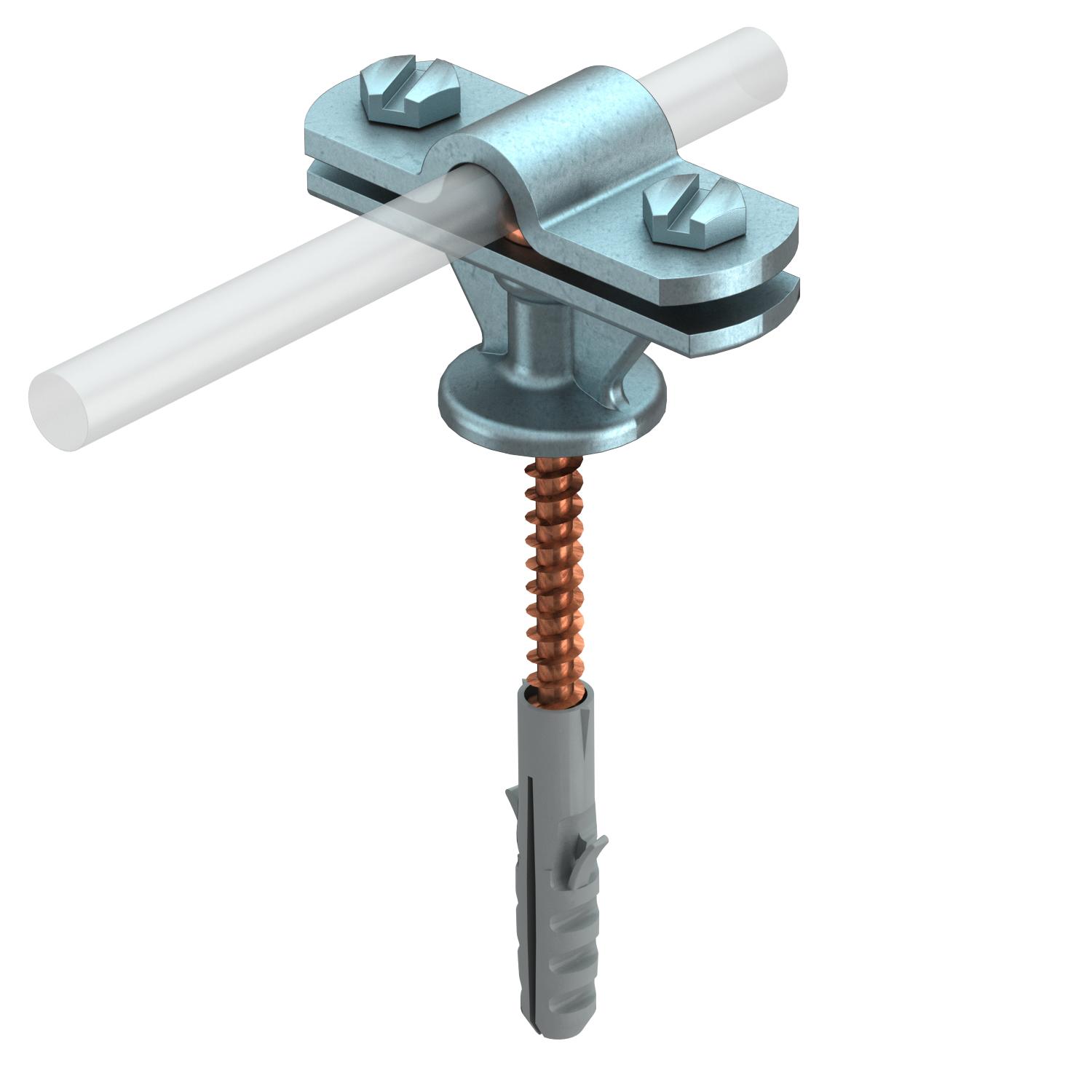

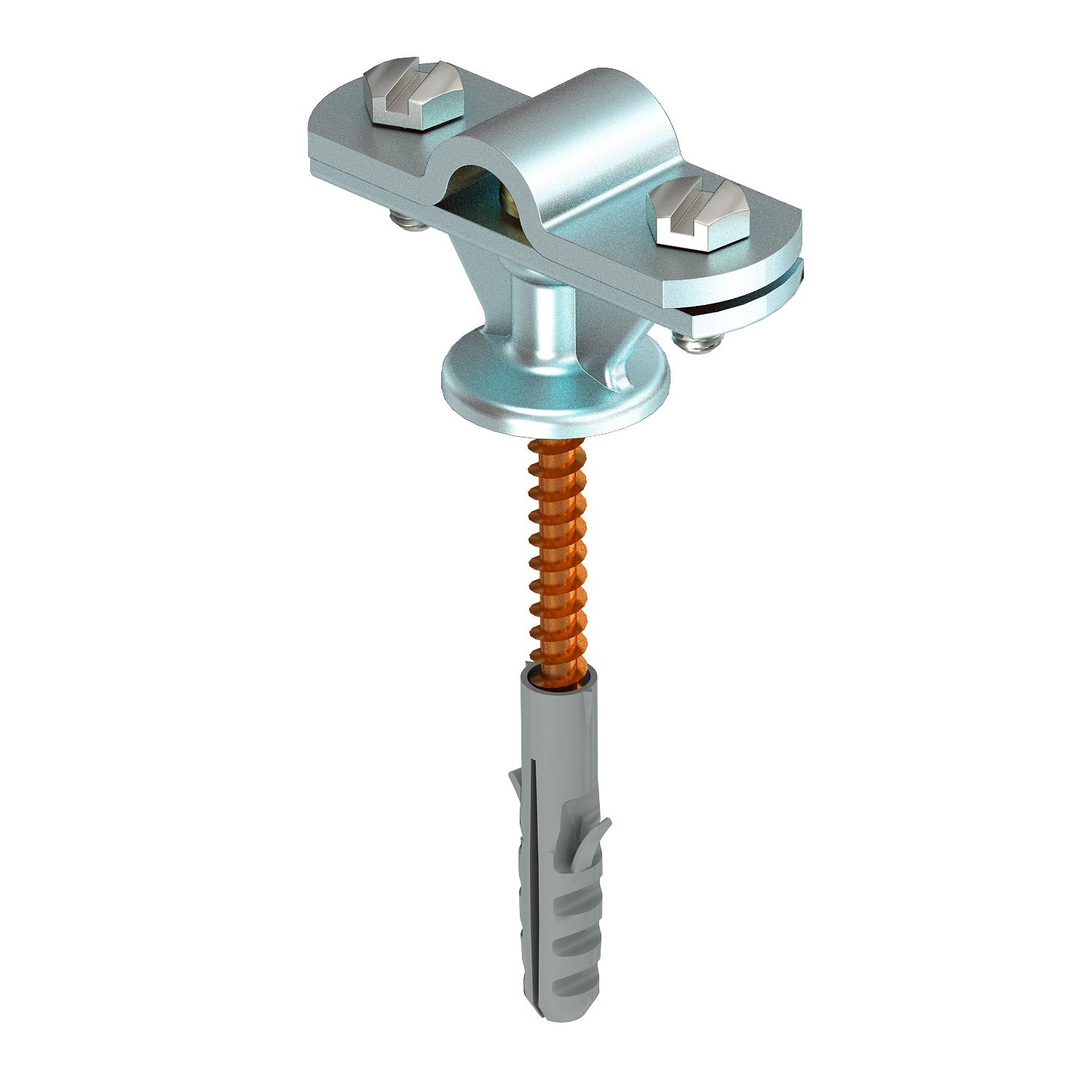

Cable bracket Rd 8–10 mm with wood screw, plastic anchor 8−10 mm round |

Cable bracket Rd 8–10 mm with wood screw, plastic anchor

Item no. 5230322 | EAN 4012195629535

Item no. / Types	5230322 / 113 B-Z-HD

Cable dimensions	8−10 mm round

Product description

Product description

• With female thread M8 or through hole Ø 7 mm
• Over-piece installed with 2 hexagonal bolts
• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)

Technical data

Technical data

Cable dimensions	8−10 mm round
Conductor fastening type	With screw clip
Dimension	8-10mm
High voltage-resistant, insulated version	no
Holder fastening type	Drill hole with M-thread
Material	Die-cast zinc

Material of the base	Die-cast zinc
Material of the crossbar	Die-cast zinc
Material of the holder	Die-cast zinc
Surface	galvanised
Thread metric	8
Use in Ex area	yes
