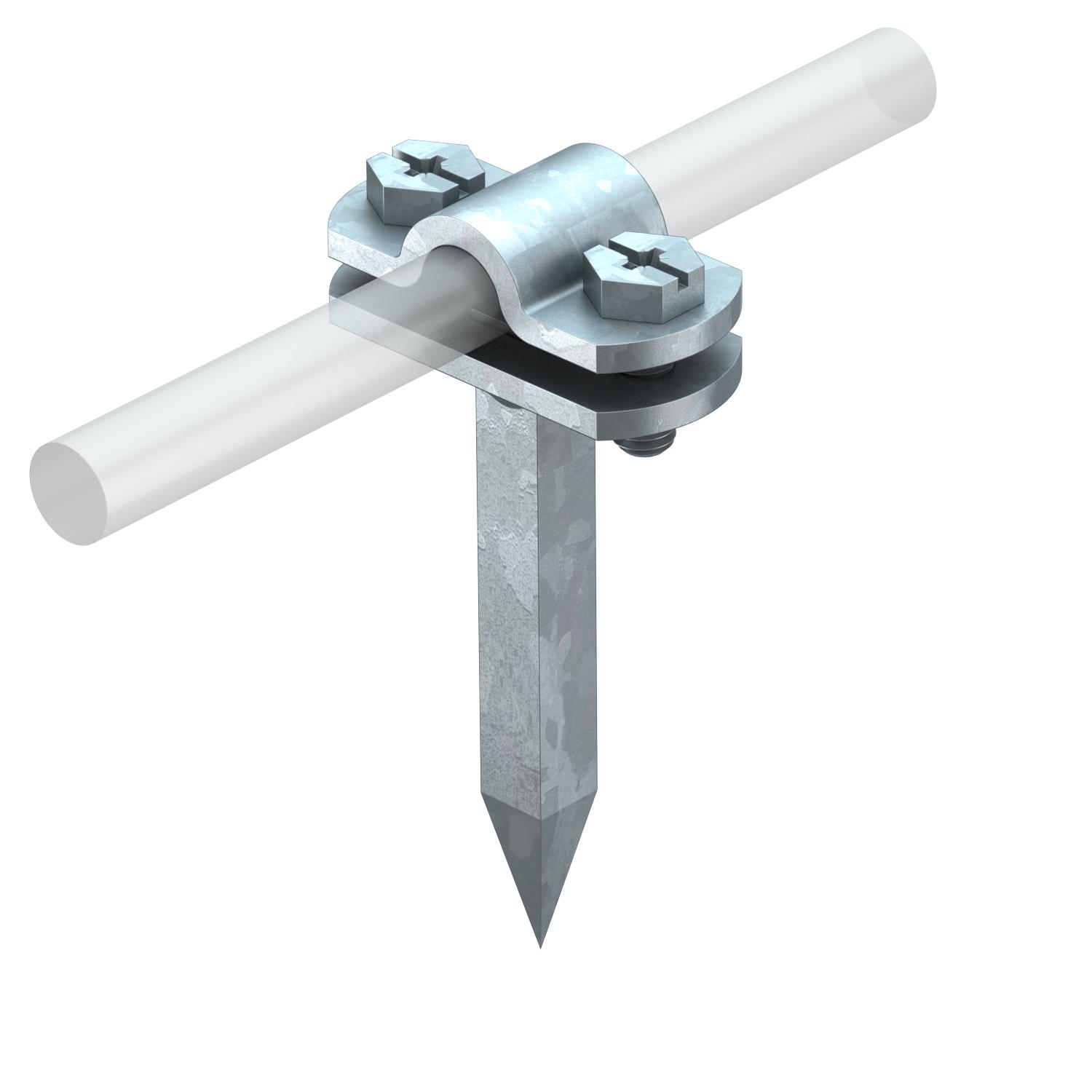

Cable bracket Rd 8−10 mm, with square pin

Item no. 5223202 | EAN 4012195409755

8−10 mm round
Product description

Product description

• Complete with crossbar and hexagonal bolts
• With square pin for rapid mounting
• With hexagonal bolts made of VA
Technical data

Technical data

Cable dimensions 8−10 mm round
Conductor fastening type With screw clip

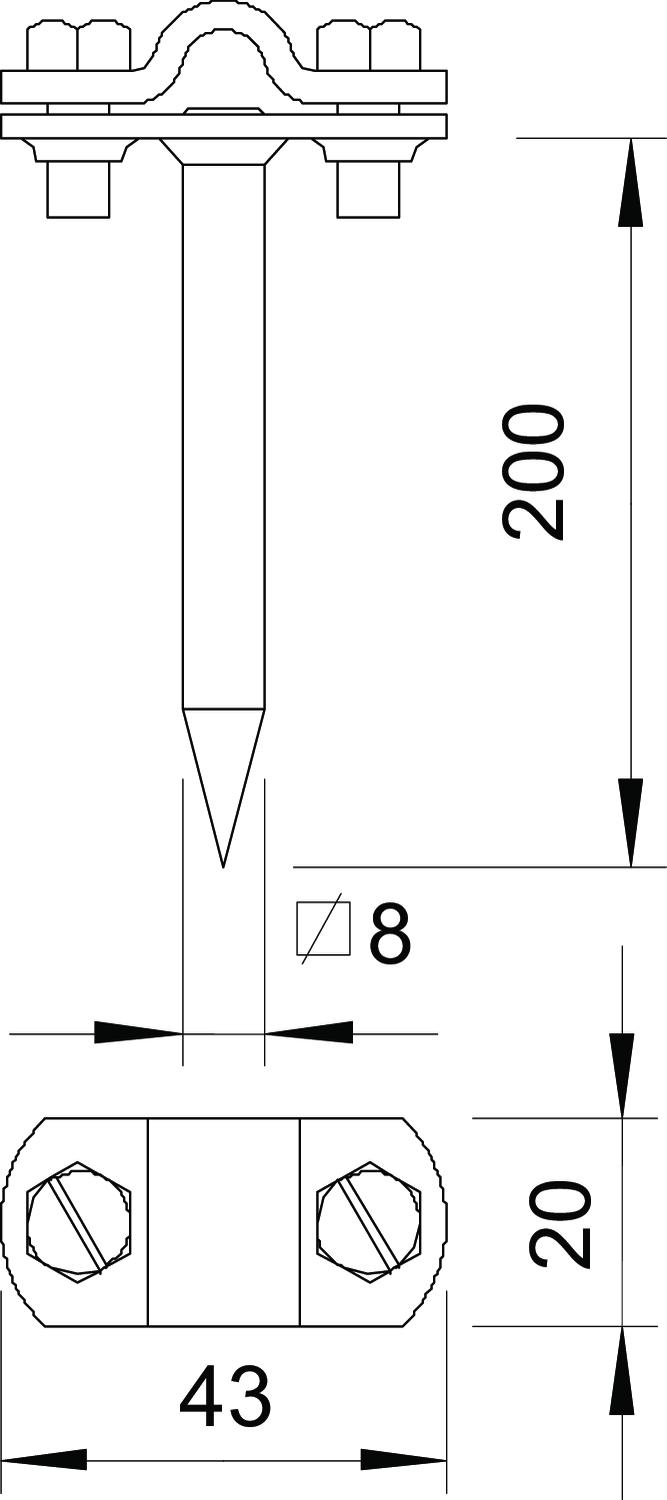

Dimension 200mm
Dimension L 200 mm
High voltage-resistant, insulated version no
Holder fastening type With impact pin
Length 200 mm
Material Steel
Material of the base Steel
Material of the crossbar Steel
Material of the holder Steel
Surface Hot-dip galvanised
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
163 70 FT 8−10 mm round 5223075
50 piece
163 100 FT 8−10 mm round 5223105
50 piece
163 200 FT 8−10 mm round 5223202
20 piece
