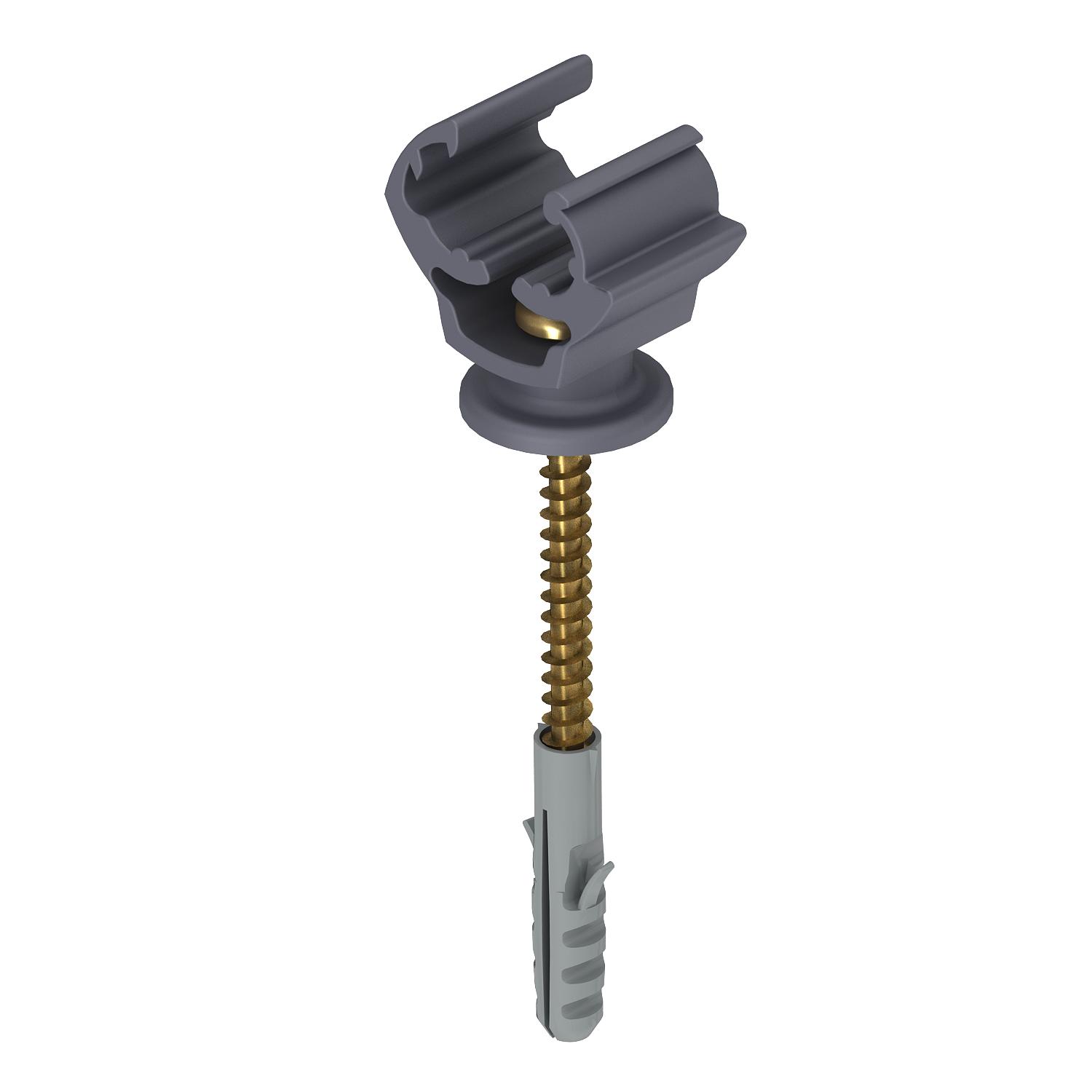

Cable bracket Rd 8−10 mm with pre-mounted wood screw

Item no. 5207851 | EAN 4012195336433

8−10 mm round
Product description

Product description

• With female thread M8 for screwing and through hole for wood screws

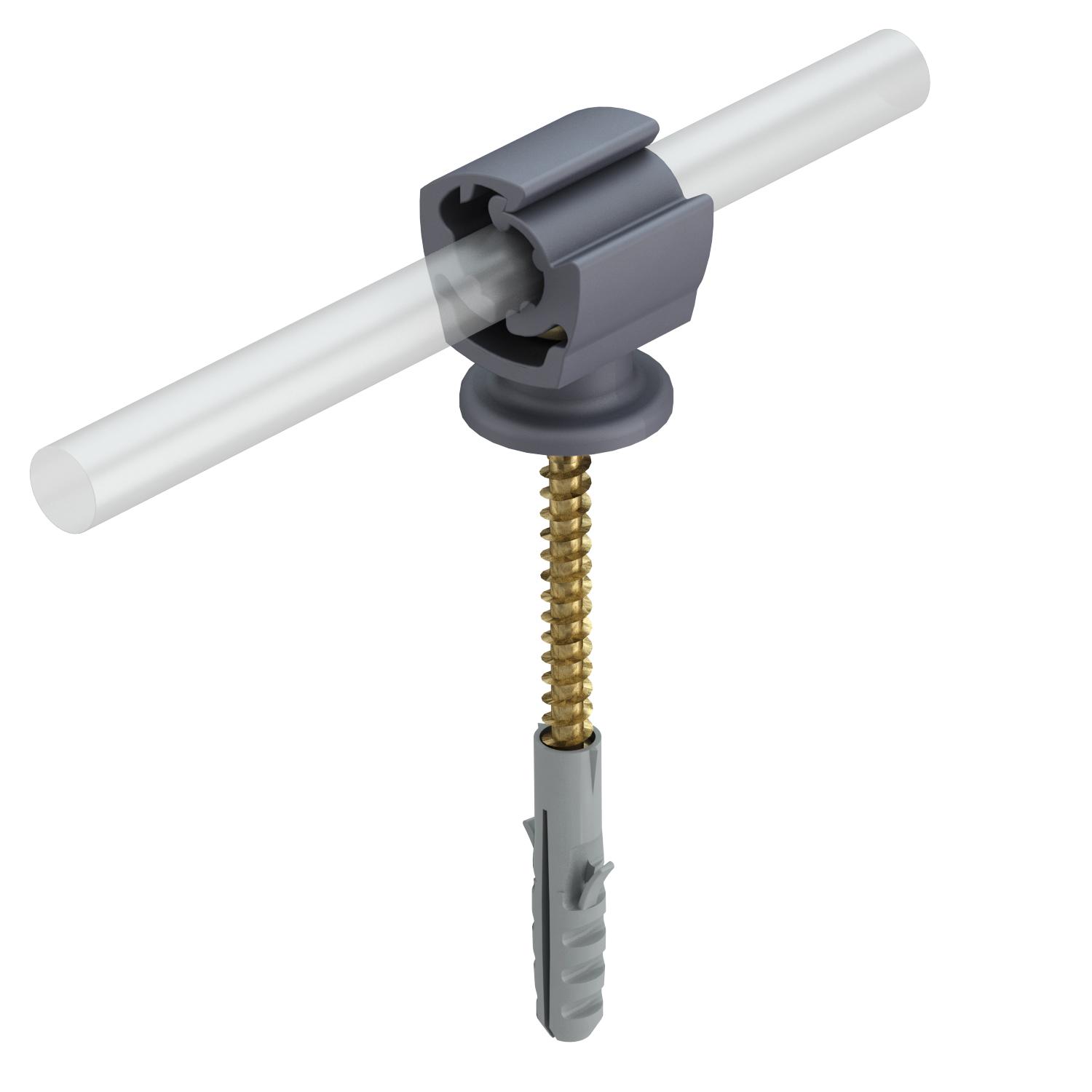

• For round conductor Rd 8-10

• Weather and temperature-resistant from -35 °C to +90 °C

• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)
Technical data

Technical data

Cable dimensions 8−10 mm round
Colour Grey
Conductor fastening type With clamp clip

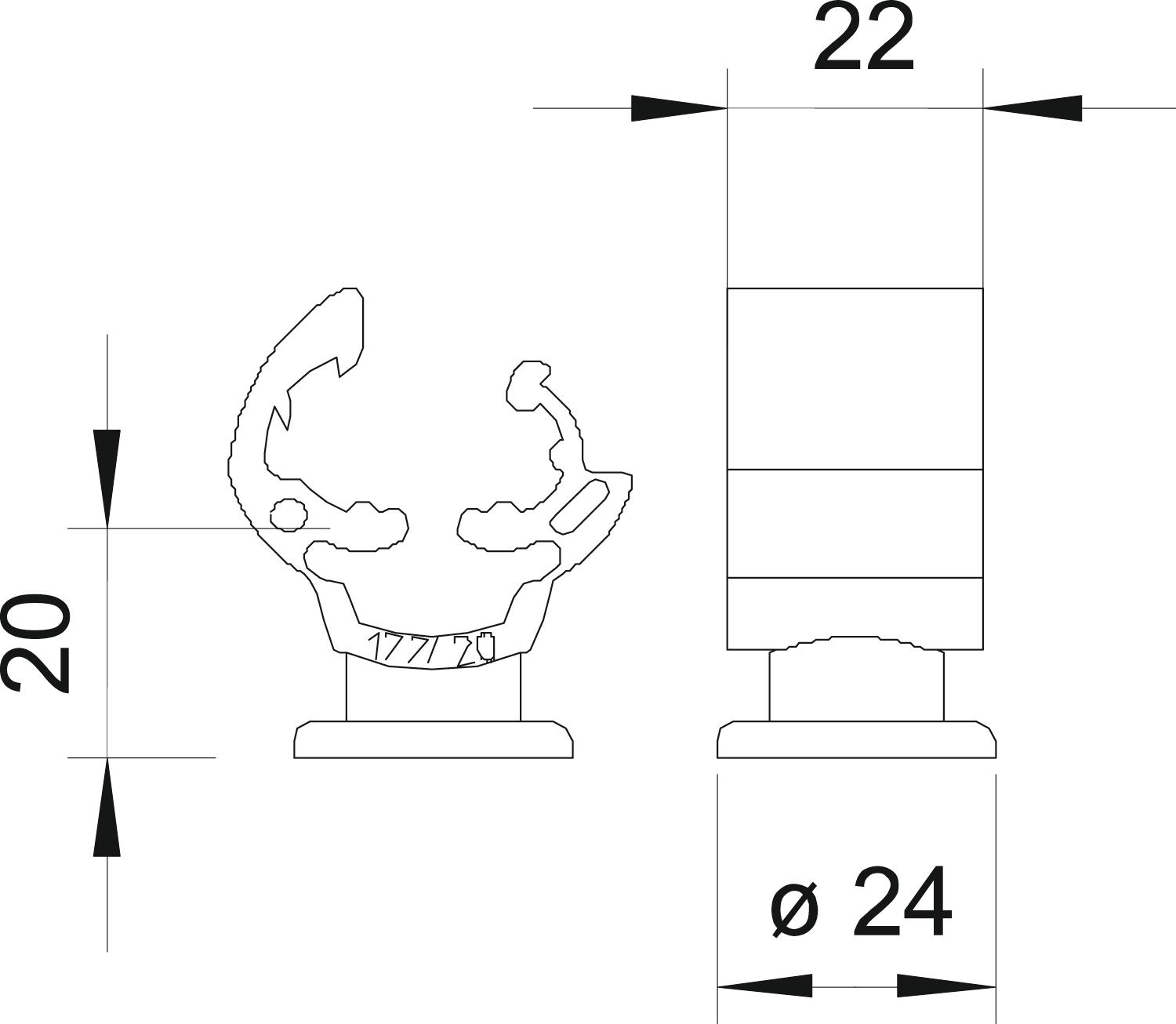

Dimension 20mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material Polyamide
Material of the base Polyamide
Material of the crossbar Polyamide
Material of the holder Polyamide
Mounting height 20 mm
Thread metric 8
All types

All types

Types Cable dimensions Mounting height Item no. Quantity SSU
177 B-HD20 8−10 mm round 20 mm 5207851
50 piece
177 B-HD30 8−10 mm round 30 mm 5207878
50 piece
