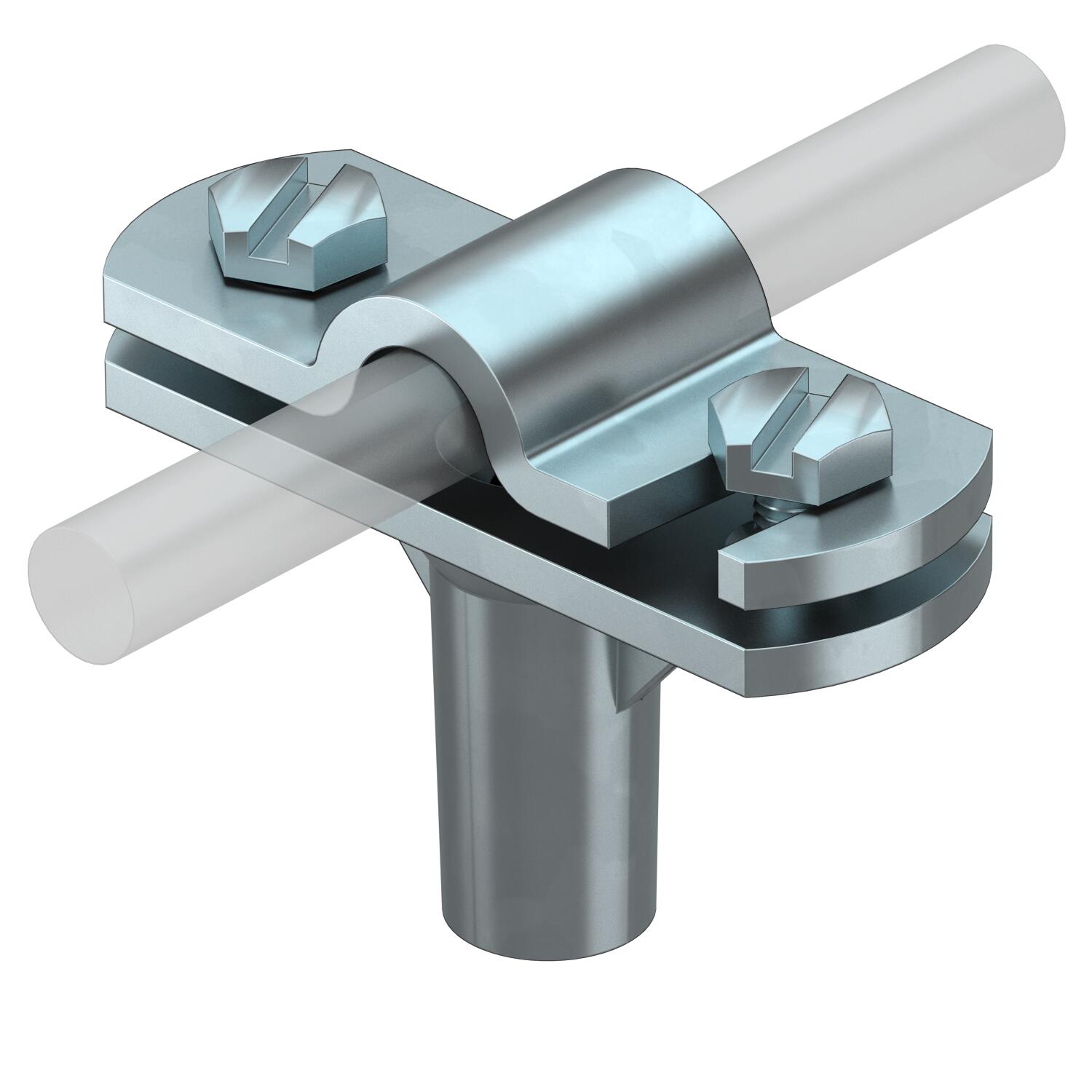

Cable bracket Rd 8–10 mm, 30 mm mounting height
Item no. 5229162 | EAN 4012195411499
- Product description
-

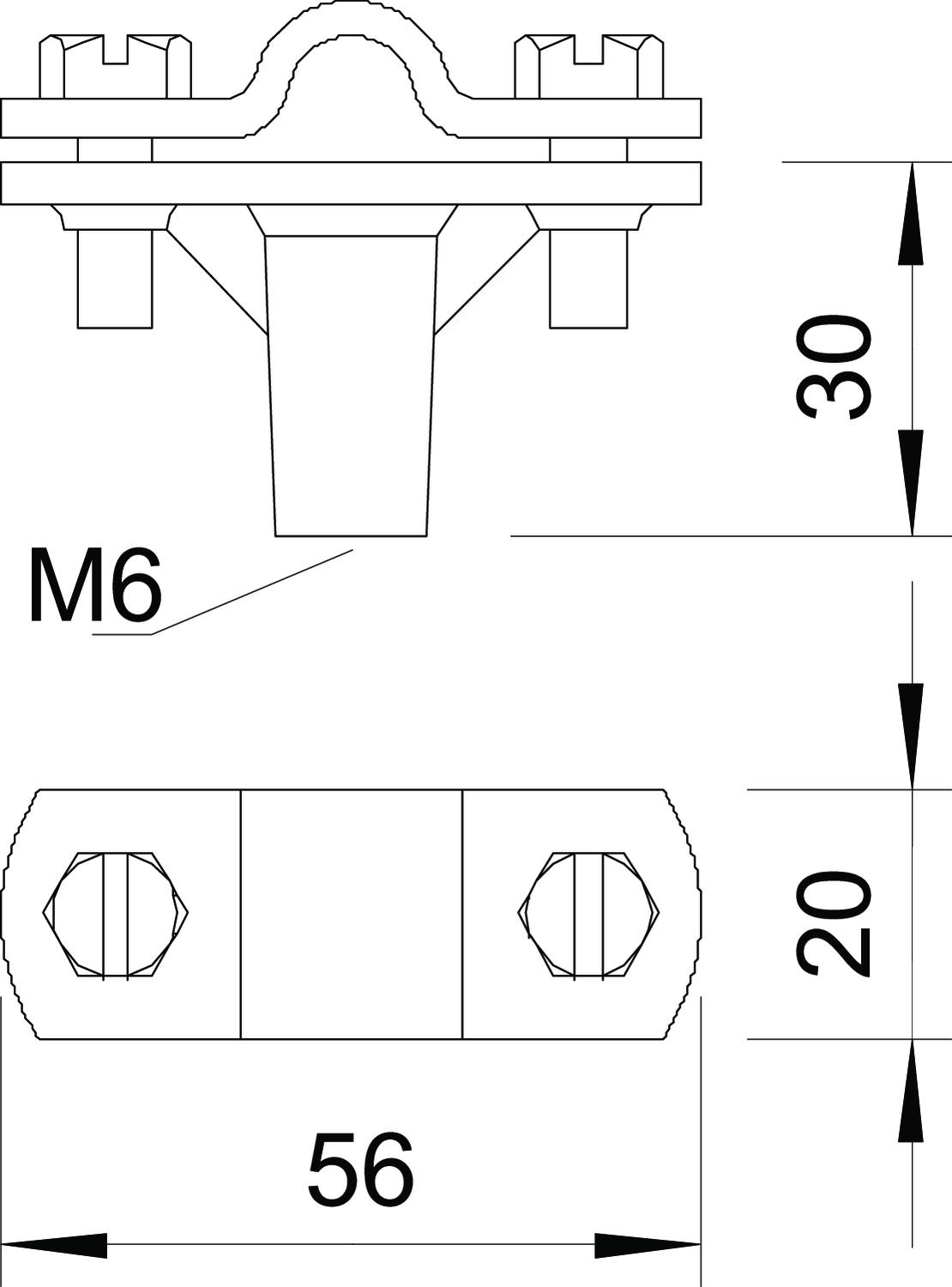

Product description• With female thread (G)
• With over-piece and 2 hexagonal bolts
• Installed height 30 mm
- Technical data
-
Technical data
Cable dimensions 8−10 mm round Conductor fastening type With screw clip Dimension 8-10mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface Electrogalvanized Thread M6 Thread metric 6 Use in Ex area yes - All types
- Downloads
-
Data sheet 168 8-10 M6 / 5229162 , 0.20MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,
