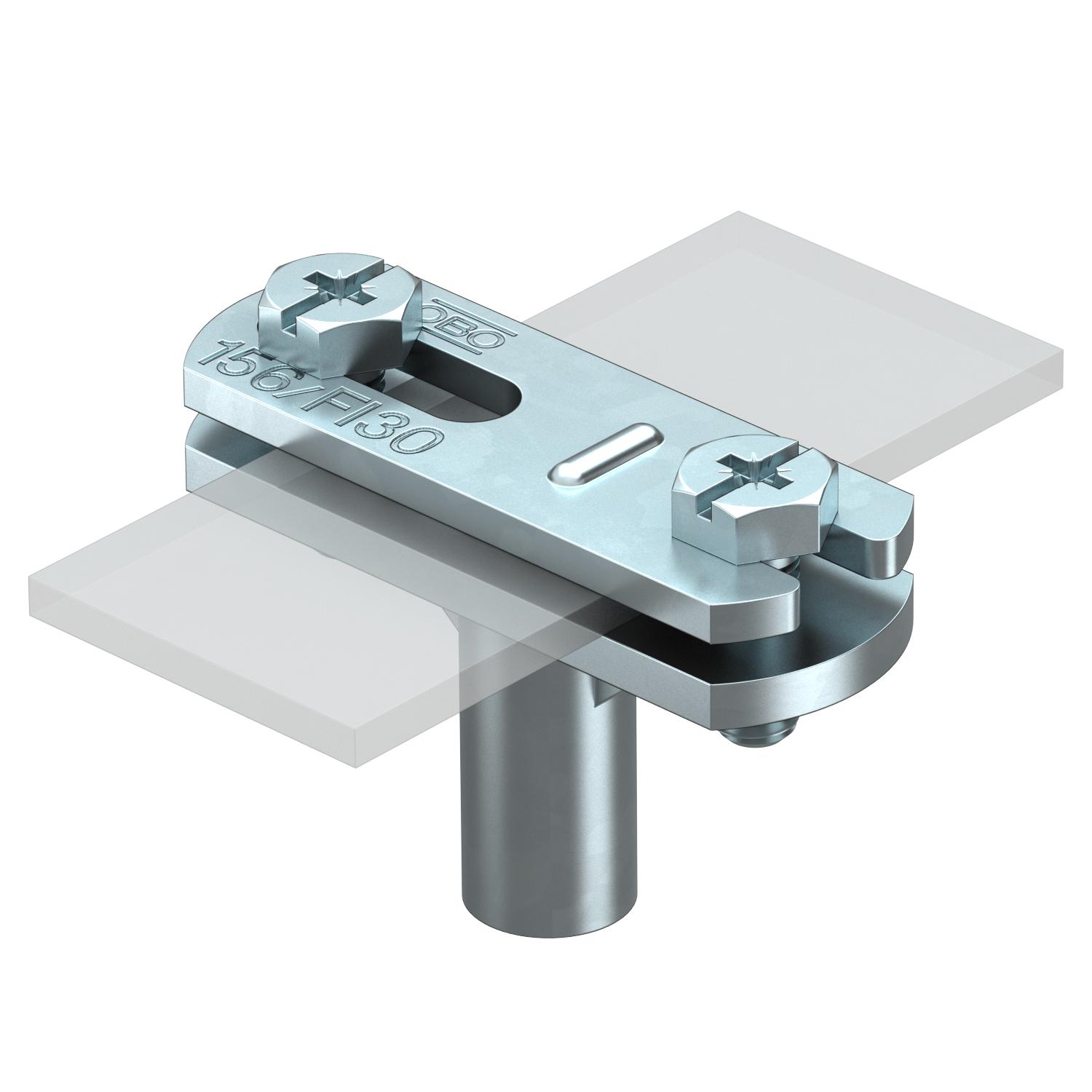

Cable bracket for flat conductors

Item no. 5229480 | EAN 4012195411734

30 x 4 mm flat
Product description

Product description

• For flat strap
• With internal thread (G)
• Mounting height 30 mm
Technical data

Technical data

Cable dimensions 30 x 4 mm flat
Conductor fastening type With screw clip

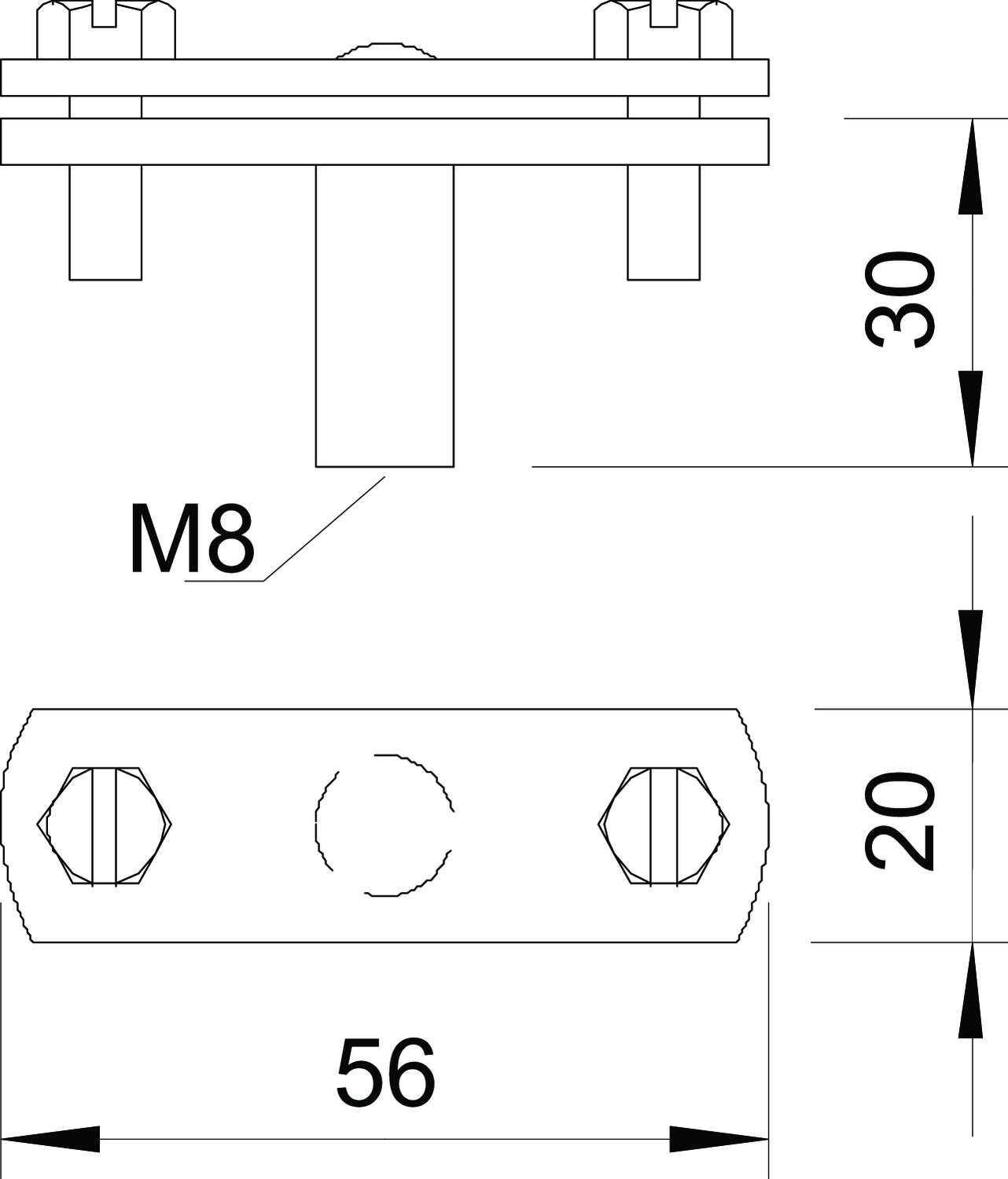

Dimension 30mm
Dimension B 56 mm
Dimension G M8 mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material Die-cast zinc
Material of the base Die-cast zinc
Material of the crossbar Die-cast zinc
Material of the holder Die-cast zinc
Surface Electrogalvanized
Thread M8
Thread metric 8
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
168 FL30-M6 30 x 4 mm flat 5229464
20 piece
168 DIN 30 30 x 4 mm flat 5229480
20 piece
