90° vertical bend, rising TS225 FT

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

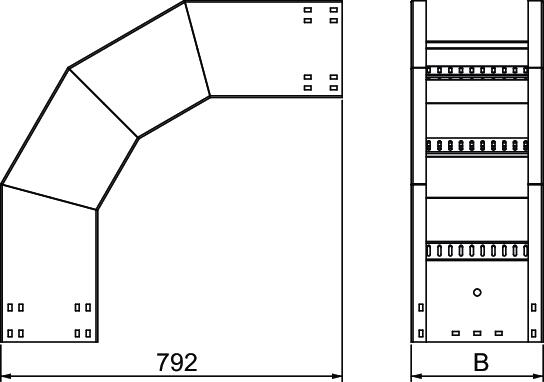

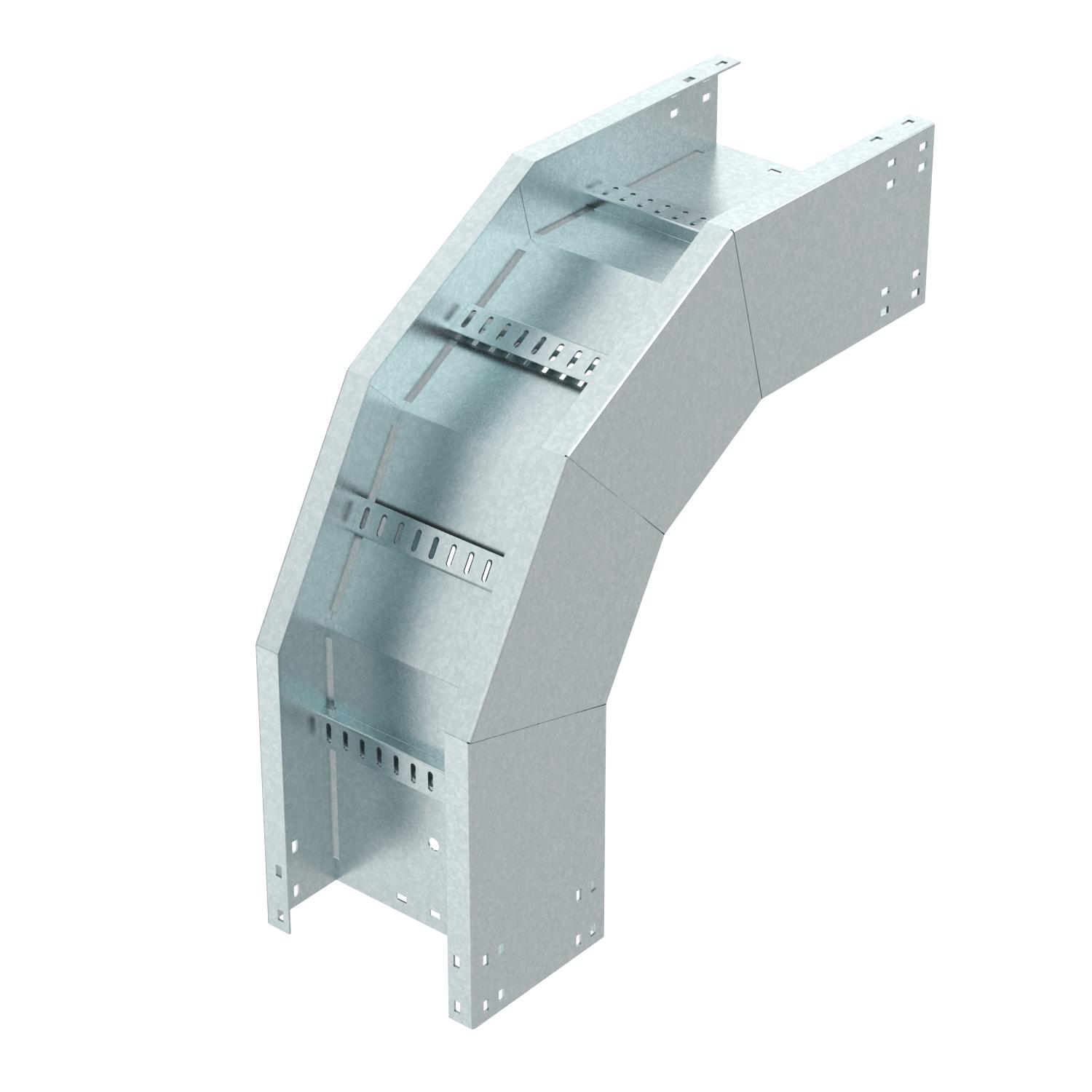

90° vertical bend, rising, for all TS225 cable ladder types of 225 mm side height.
Accessory radius = 450 mm.

Technical data

All types

All types

Types	Width	Rail thickness	Item no.	SSU
TS225 300 HDG	300 mm	2.5 mm	6906263	1
TS225 450 HDG	450 mm	2.5 mm	6906267	1
TS225 600 HDG	600 mm	2.5 mm	6906271	1
TS225 900 HDG	900 mm	2.5 mm	6906275	1
