90° vertical bend, rising TS150 FT

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

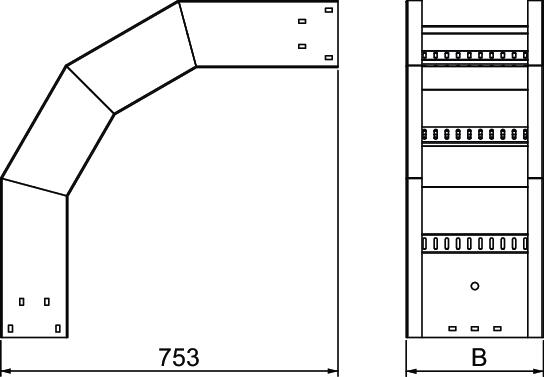

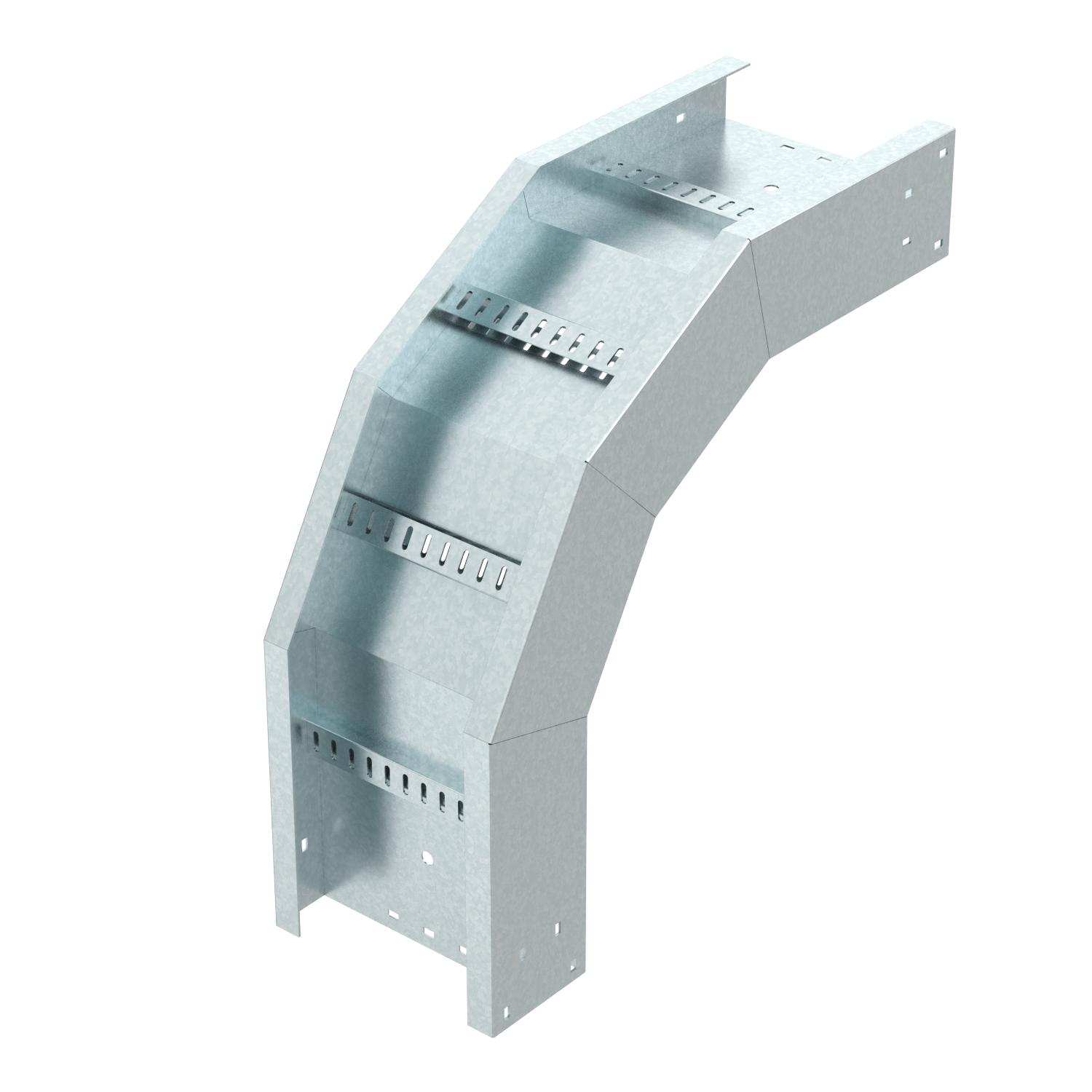

90° vertical bend, rising, for all TS150 cable ladder types of 150 mm side height.
Accessory radius = 450 mm.

Technical data

All types

All types

Types	Width	Rail thickness	Item no.	SSU
TS150 300 HDG	300 mm	2.5 mm	6906063	1
TS150 450 HDG	450 mm	2.5 mm	6906067	1
TS150 600 HDG	600 mm	2.5 mm	6906071	1
TS150 900 HDG	900 mm	2.5 mm	6906075	1

Downloads

Data sheet TS150 300 HDG / 6906063 , 0.13MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf
