90° vertical bend, rising PT38 FT

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

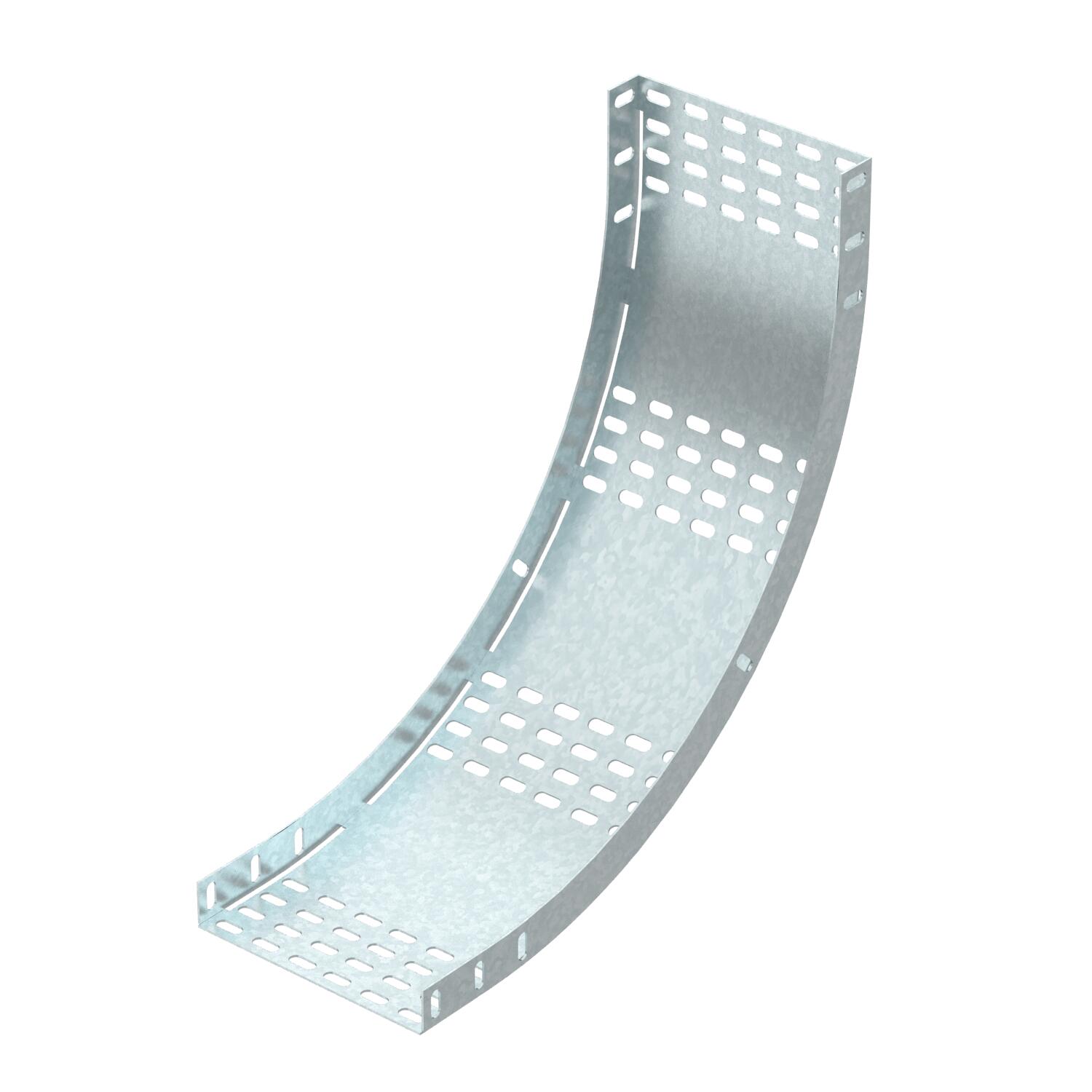

90° vertical bend, rising, for PT38 cable tray types.

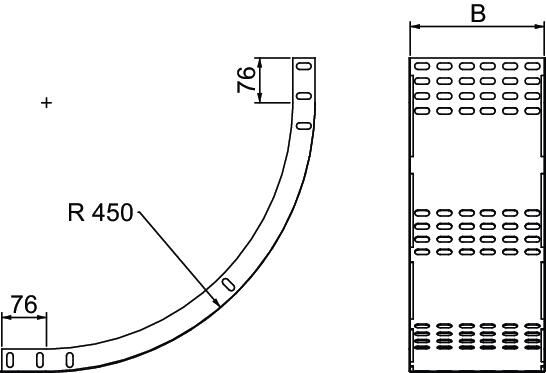

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed

Height	38 mm

Width	76 mm

All types

Types	Width	Material	Surface	Item no.	SSU
PT38 76 HDG	76 mm	Steel	Hot-dip galvanised	6900383	1
PT38 114 HDG	114 mm	Steel	Hot-dip galvanised	6900387	1
PT38 152 HDG	152 mm	Steel	Hot-dip galvanised	6900391	1
PT38 228 HDG	228 mm	Steel	Hot-dip galvanised	6900395	1
PT38 304 HDG	304 mm	Steel	Hot-dip galvanised	6900399	1
