90° vertical bend, rising PS150 FT 150 | 2

90° vertical bend, rising PS150 FT

Item no. 6904103 | EAN 4012196072170

Item no. / Types

Width

Rail thickness	2 mm

Product description

Product description

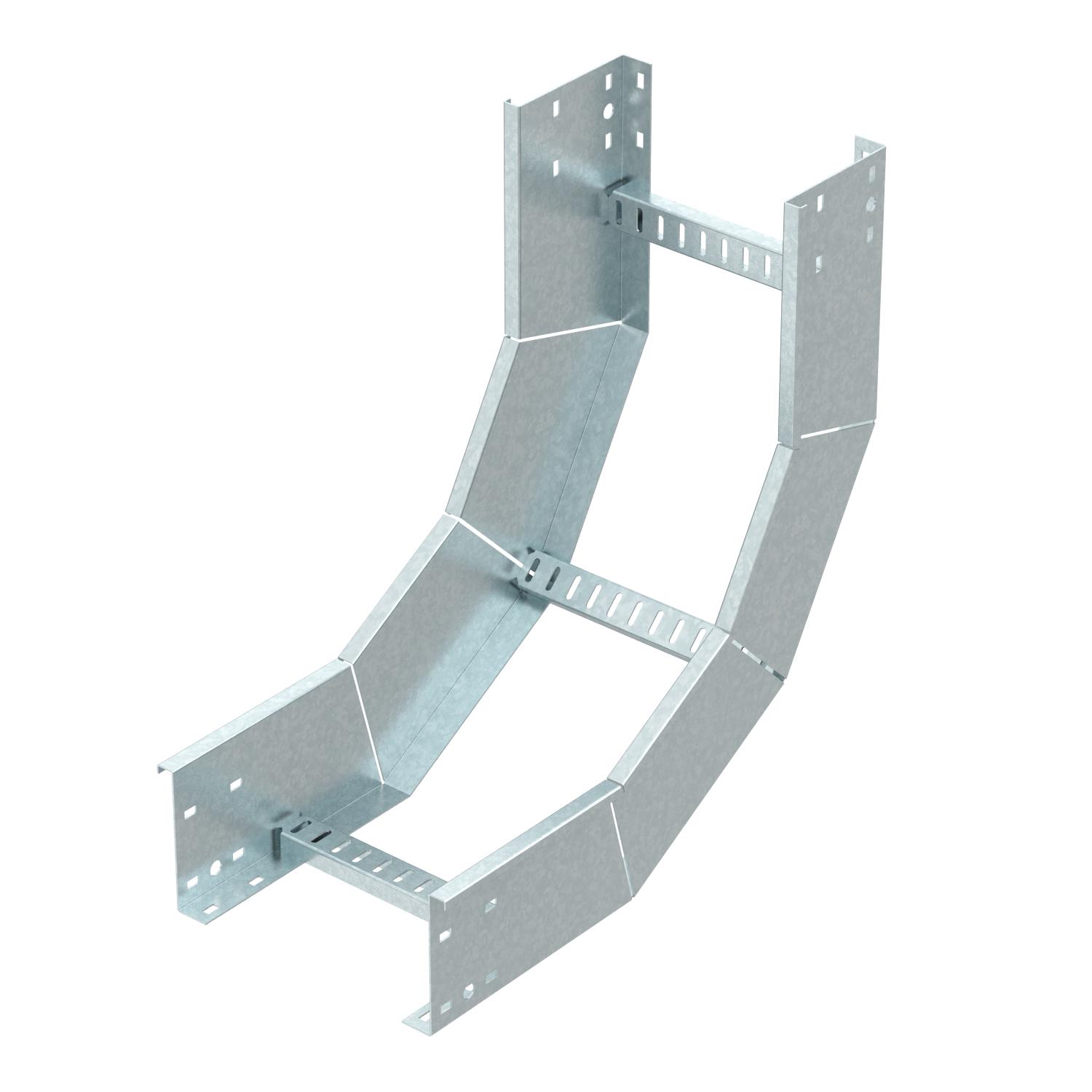

90° vertical bend, rising, for all PS150 cable ladder types of 150 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

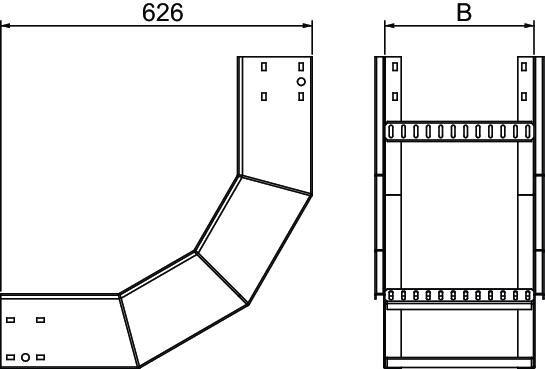

Dimension	628x628x190
Height	150 mm
Material	Steel

Rail thickness	2 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
PS150 150 HDG	150 mm	2 mm	6904103	1
PS150 200 HDG	200 mm	2 mm	6904107	1
PS150 300 HDG	300 mm	2 mm	6904111	1
PS150 400 HDG	400 mm	2 mm	6904115	1
PS150 500 HDG	500 mm	2 mm	6904119	1
PS150 600 HDG	600 mm	2 mm	6904123	1
PS150 800 HDG	800 mm	2 mm	6904127	1
PS150 1000 HDG	1000 mm	2 mm	6904131	1
