90° vertical bend, rising MS40 FT 150 | 5

90° vertical bend, rising MS40 FT

Item no. 6906503 | EAN 4012196076734

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

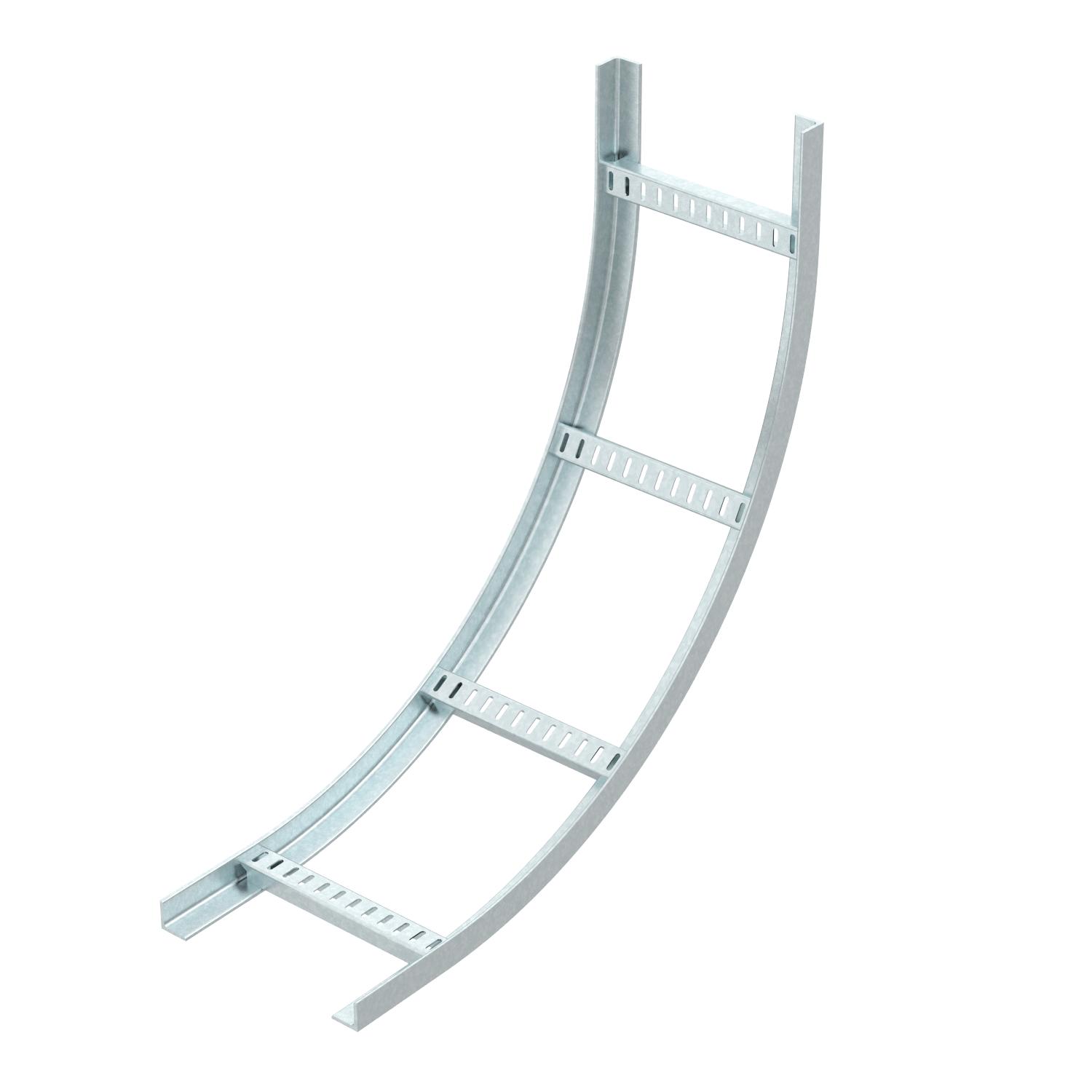

90° vertical bend, rising, for all MS40 cable ladder types of 40 mm side height.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.

Technical data

Technical data

Dimension	880x880x150
Height	40 mm
Material	Steel

Rail thickness	5 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
MS40 150 HDG	150 mm	5 mm	6906503	1
MS40 200 HDG	200 mm	5 mm	6906507	1
MS40 300 HDG	300 mm	5 mm	6906511	1
MS40 400 HDG	400 mm	5 mm	6906515	1
MS40 500 HDG	500 mm	5 mm	6906519	1
MS40 600 HDG	600 mm	5 mm	6906523	1
MS40 800 HDG	800 mm	5 mm	6906527	1
MS40 1000 HDG	1000 mm	5 mm	6906531	1
