90° vertical bend, rising, AI50 FT 150 | 5

90° vertical bend, rising, AI50 FT

Item no. 6908103 | EAN 4012196079797

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

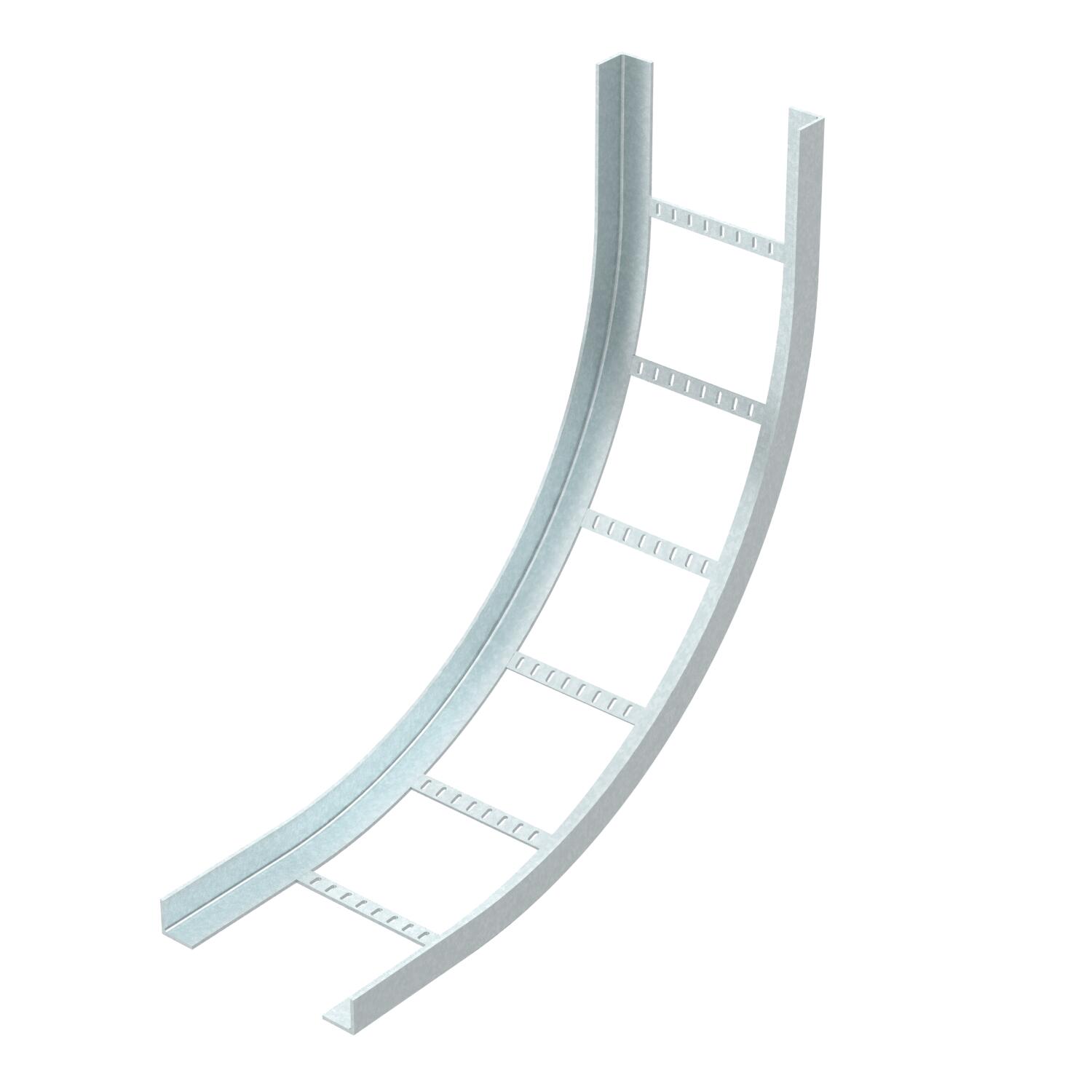

90° vertical bend, rising, for all AI50 cable ladder types of 50 mm side height.

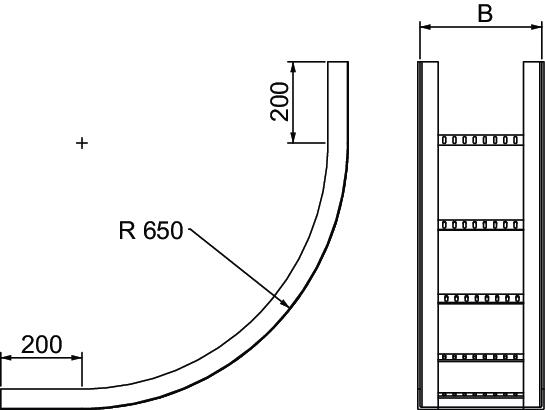

Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.

Technical data

Technical data

Dimension	900x900x160
Height	50 mm
Material	Steel

Rail thickness	5 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
AI50 150 HDG	150 mm	5 mm	6908103	1
AI50 200 HDG	200 mm	5 mm	6908107	1
AI50 300 HDG	300 mm	5 mm	6908111	1
AI50 400 HDG	400 mm	5 mm	6908115	1
AI50 500 HDG	500 mm	5 mm	6908119	1
AI50 600 HDG	600 mm	5 mm	6908123	1
AI50 800 HDG	800 mm	5 mm	6908127	1
AI50 1000 HDG	1000 mm	5 mm	6908131	1
