90° vertical bend, rising, AI40 FT 150 | 5

90° vertical bend, rising, AI40 FT

Item no. 6907703 | EAN 4012196079193

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

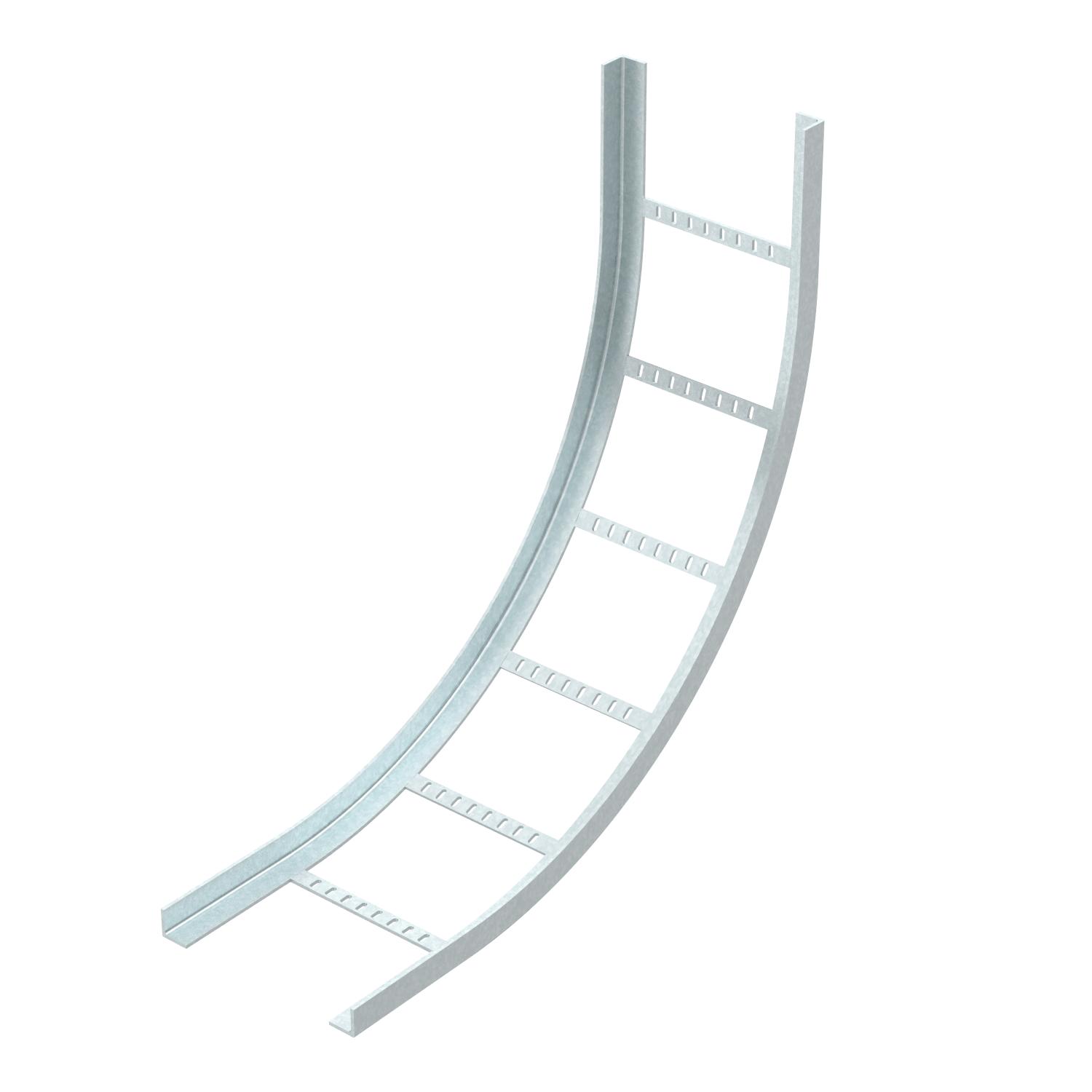

90° vertical bend, rising, for all AI40 cable ladder types of 40 mm side height.

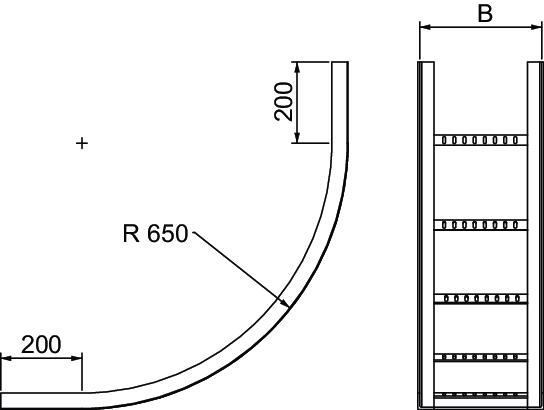

Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.

Technical data

Technical data

Dimension	890x890x160
Height	40 mm
Material	Steel

Rail thickness	5 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
AI40 150 HDG	150 mm	5 mm	6907703	1
AI40 200 HDG	200 mm	5 mm	6907707	1
AI40 300 HDG	300 mm	5 mm	6907711	1
AI40 400 HDG	400 mm	5 mm	6907715	1
AI40 500 HDG	500 mm	5 mm	6907719	1
AI40 600 HDG	600 mm	5 mm	6907723	1
AI40 800 HDG	800 mm	5 mm	6907727	1
AI40 1000 HDG	1000 mm	5 mm	6907731	1
