90° vertical bend, falling, PT76 FT

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

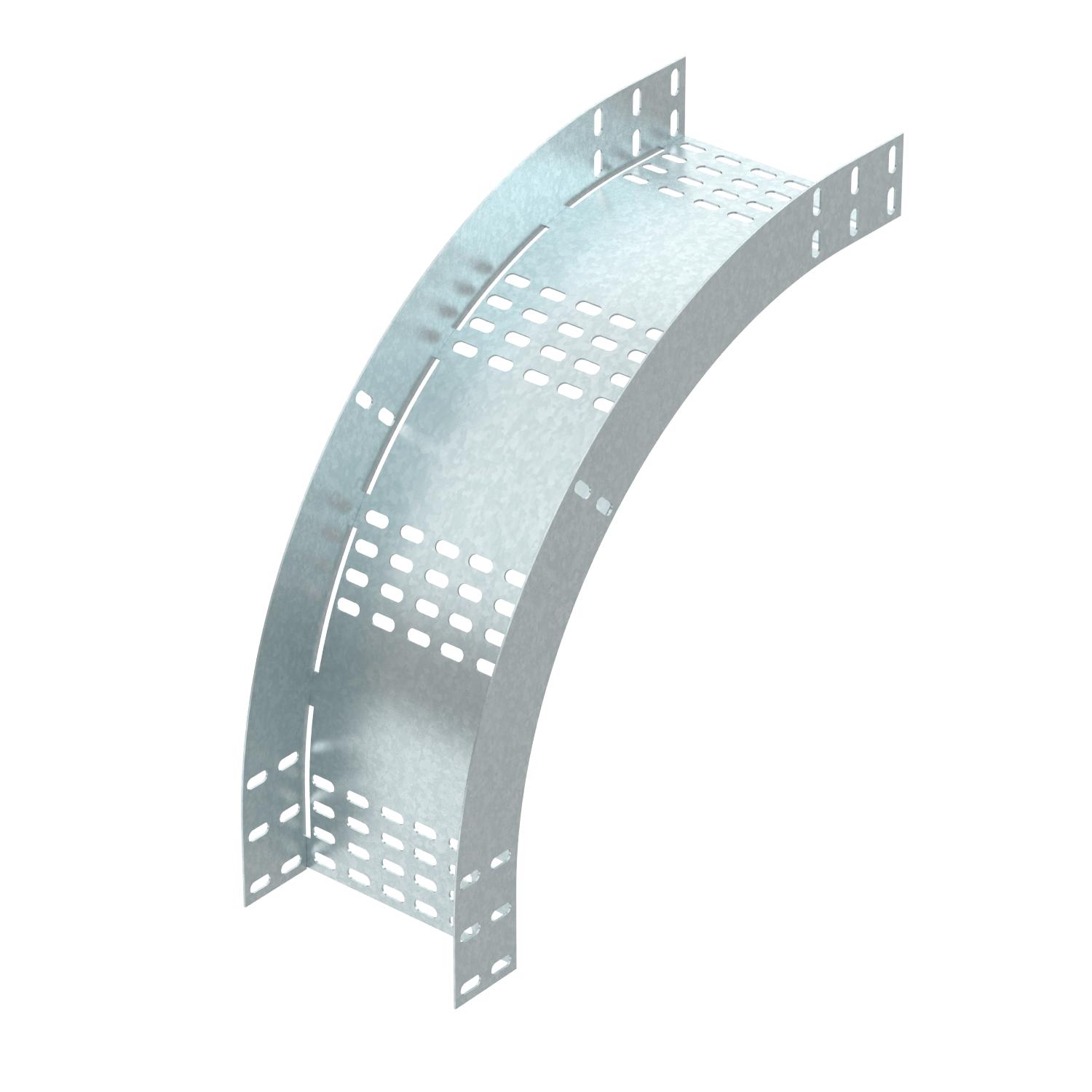

90° vertical bend, falling, for PT76 cable tray types.

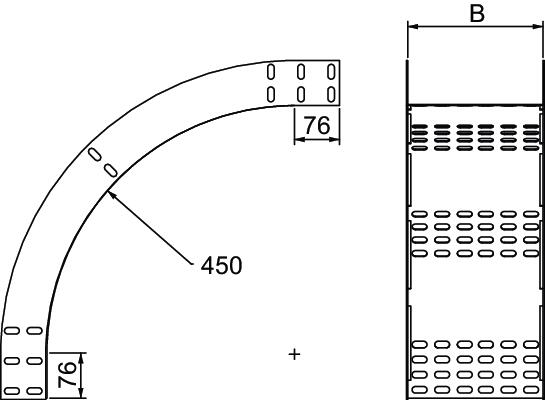

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed

Height	76 mm

Width	76 mm

All types

Types	Width	Material	Surface	Item no.	SSU
PT76 76 HDG	76 mm	Steel	Hot-dip galvanised	6900703	1
PT76 114 HDG	114 mm	Steel	Hot-dip galvanised	6900707	1
PT76 152 HDG	152 mm	Steel	Hot-dip galvanised	6900711	1
PT76 228 HDG	228 mm	Steel	Hot-dip galvanised	6900715	1
PT76 304 HDG	304 mm	Steel	Hot-dip galvanised	6900719	1
PT76 457 HDG	457 mm	Steel	Hot-dip galvanised	6900723	1
PT76 609 HDG	609 mm	Steel	Hot-dip galvanised	6900727	1
