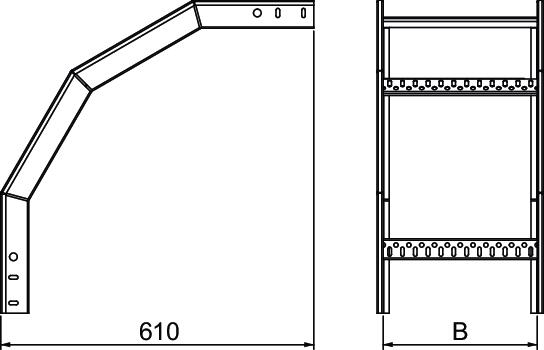

90° vertical bend, falling, OL50 FT

Item no. / Types

Width

Rail thickness	1.6 mm

Product description

Product description

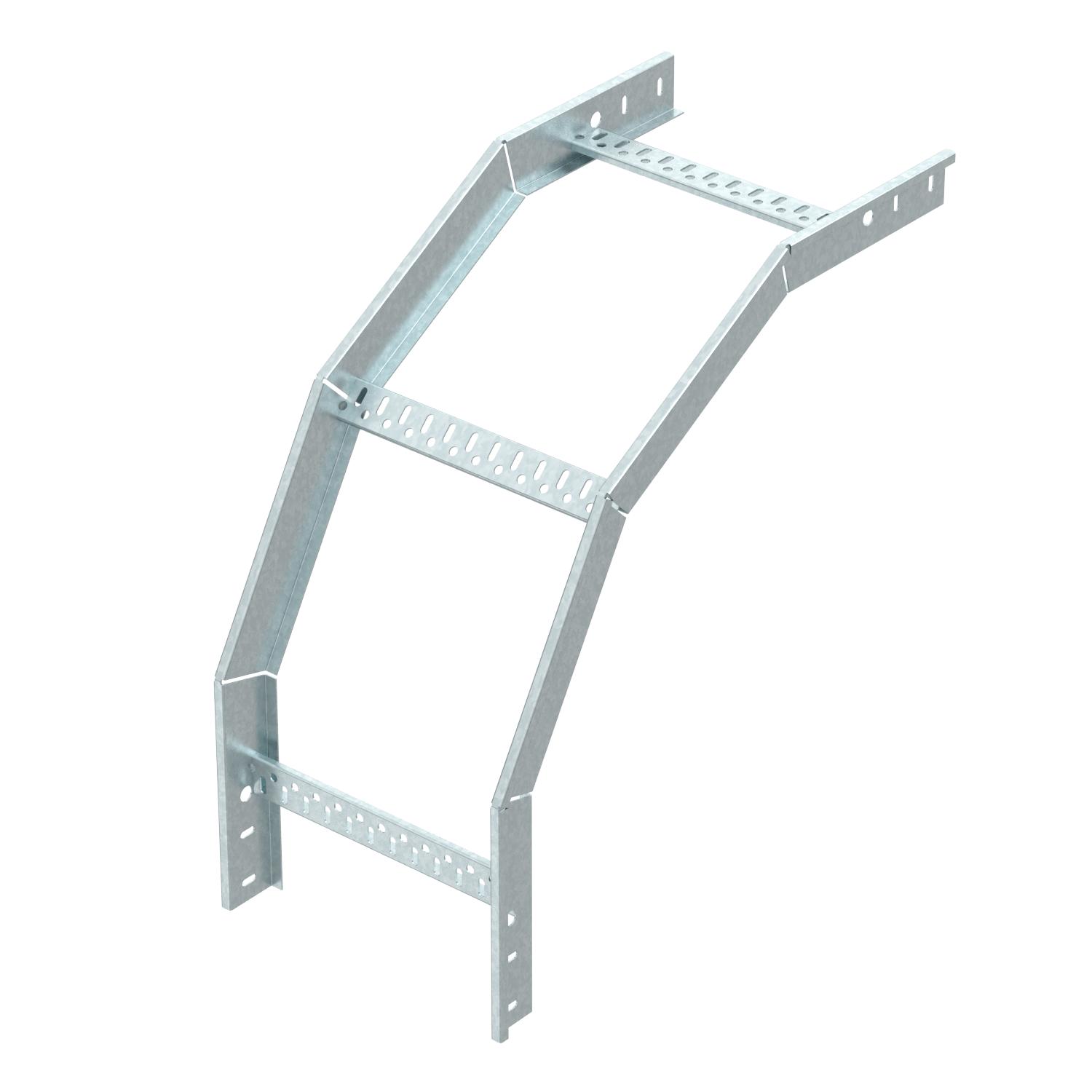

90° vertical bend, falling, for all OL55 cable ladder types of 55 mm side height.
Accessory radius = 450 mm. Not available in other radiuses.

Technical data

All types

All types

Types	Width	Rail thickness	Item no.	SSU
OL55 100 HDG	100 mm	1.6 mm	6902653	1
OL55 150 HDG	150 mm	1.6 mm	6902657	1
OL55 200 HDG	200 mm	1.6 mm	6902661	1
OL55 300 HDG	300 mm	1.6 mm	6902665	1
