90° vertical bend, falling, DS75

Item no. / Types

Width

Product description

Product description

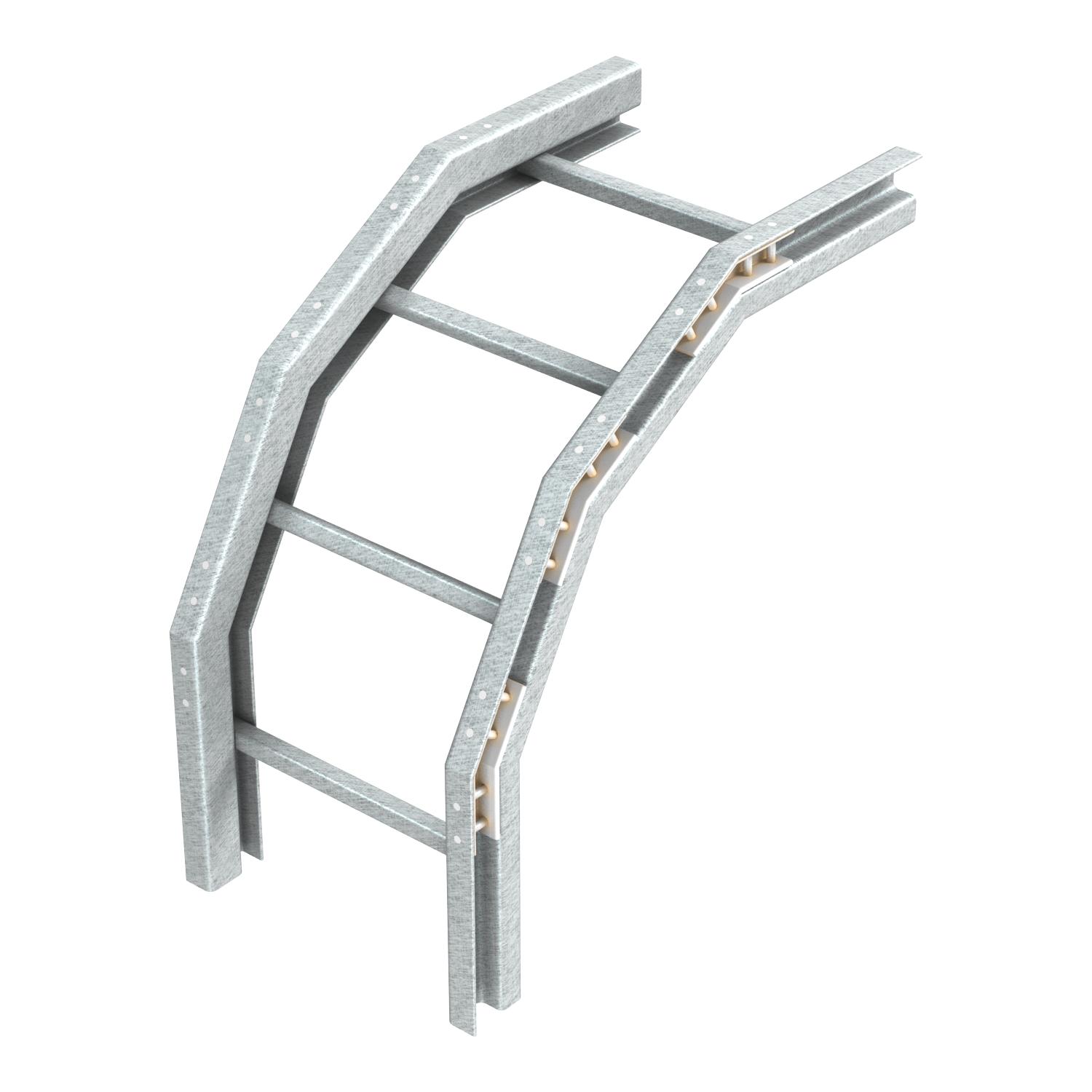

90° vertical bend, falling, for all DS75 cable ladder types of 75 mm side height.
Accessory radius = 450 mm. Not available in other radiuses.

Technical data

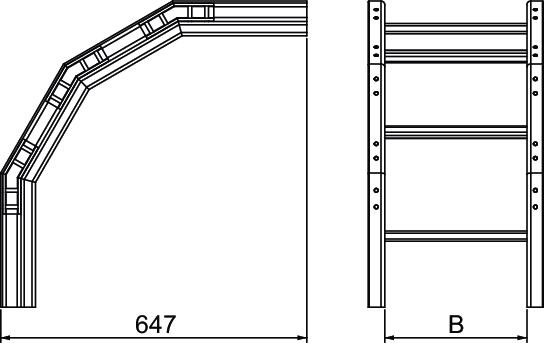

Dimension	647x647x220
Height	75 mm

Material	Fibre-glass-reinforced plastic
Width	150 mm

All types

All types

Types	Width	Item no.	SSU
DS75 150 GRP	150 mm	6908753	1
DS75 300 GRP	300 mm	6908757	1
DS75 450 GRP	450 mm	6908761	1
DS75 600 GRP	600 mm	6908765	1
DS75 750 GRP	750 mm	6908769	1
DS75 900 GRP	900 mm	6908773	1
