Note: This article is discontinued.

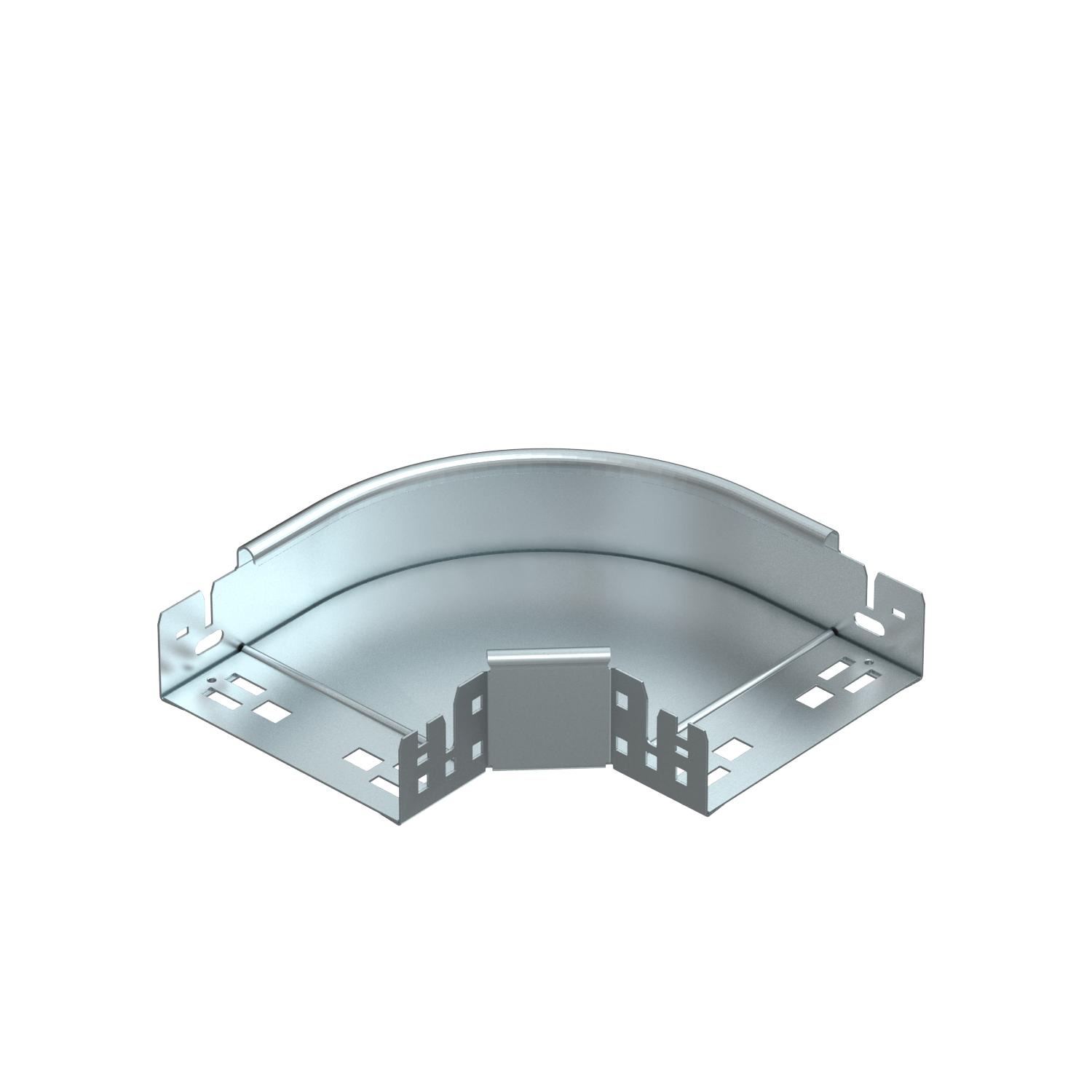

90° Magic bend 60 FS

Item no. 6041132 | EAN 4012195881827

Steel
Strip galvanized
Product description
Product description
90° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate 2,972 kg CO₂e / 1 Piece
Dimension 60x150
Dimension B 150 mm
Fire protection Use of fire protection ceilings
Height 60 mm
Height 2 in
Maintain electrical functions yes
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1,25 mm
Rustproof steel, pickled no
Side perforation no
Surface Strip galvanized
Type of connector, cable support system Click fastening
Wide-span version no
Width 6 in
Width 150 mm
All types

All types

Types Width Material Surface Item no. Quantity SSU
RBM 90 610 FS 100 mm Steel Strip galvanized 6041130
1 piece
RBM 90 615 FS 150 mm Steel Strip galvanized 6041132
1 piece
RBM 90 620 FS 200 mm Steel Strip galvanized 6041134
1 piece
RBM 90 630 FS 300 mm Steel Strip galvanized 6041136
1 piece
RBM 90 640 FS 400 mm Steel Strip galvanized 6041138
1 piece
RBM 90 650 FS 500 mm Steel Strip galvanized 6041140
1 piece
RBM 90 660 FS 600 mm Steel Strip galvanized 6041142
1 piece
