90° bend TS225 FT 300 | 2.5
morepic-1 morepic-2 video-1

90° bend TS225 FT

Item no. 6906233 | EAN 4012196076376

2.5 mm
Product description
Product description

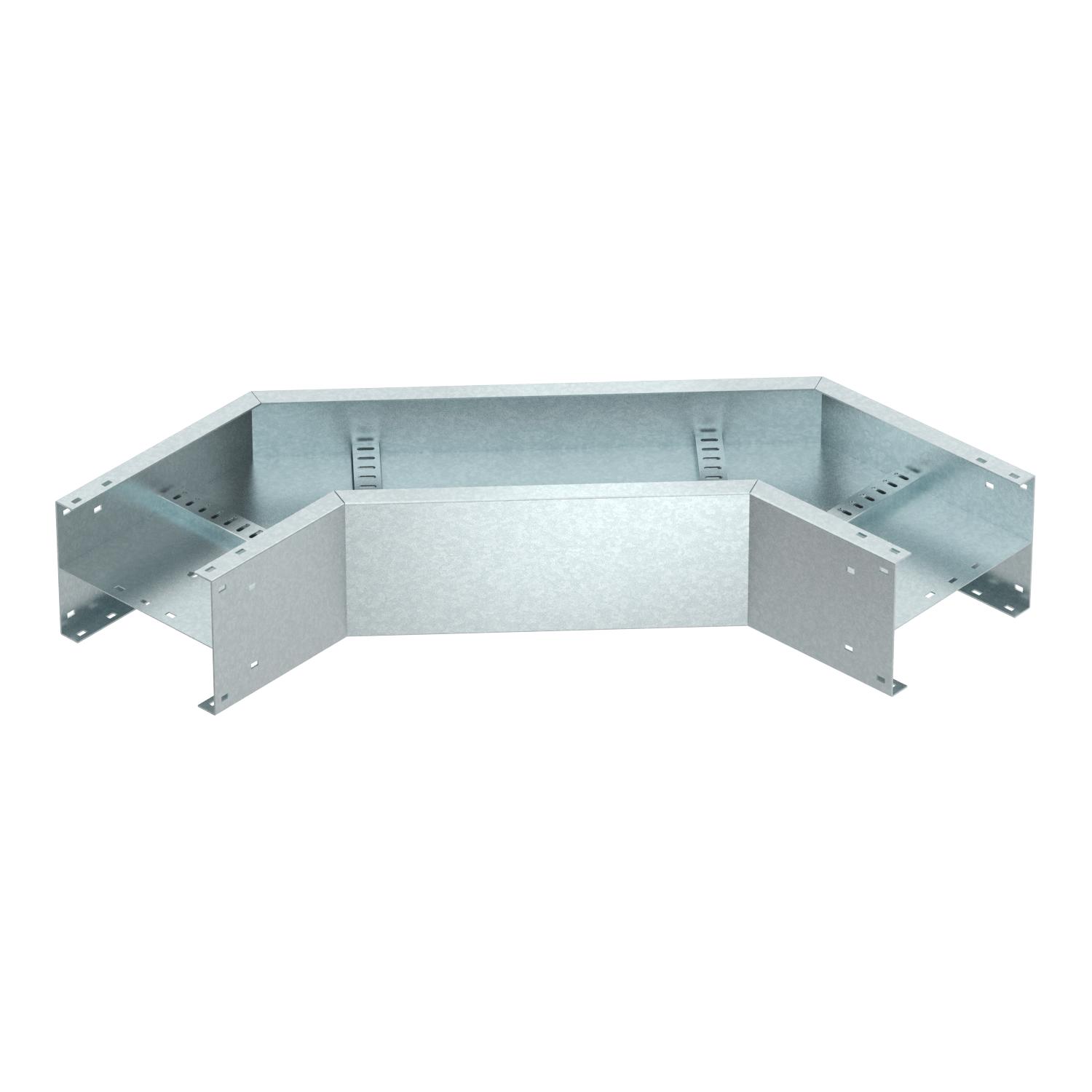

90° bend, horizontal, for all TS225 cable ladder types of 225 mm side height.
Accessory radius = 450 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

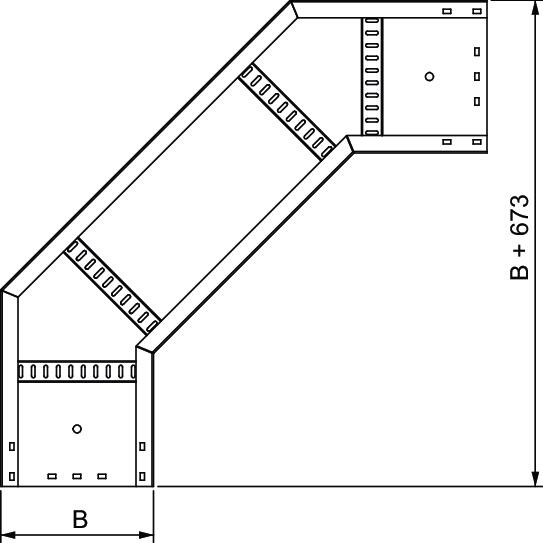

Dimension 802x802x300
Height 225 mm
Material Steel
Rail thickness 2,5 mm
Surface Hot-dip galvanised
Width 300 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
TS225 300 HDG 300 mm 2.5 mm 6906233
1
TS225 450 HDG 450 mm 2.5 mm 6906237
1
TS225 600 HDG 600 mm 2.5 mm 6906241
1
TS225 900 HDG 900 mm 2.5 mm 6906245
1
