90° bend TS150 FT

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

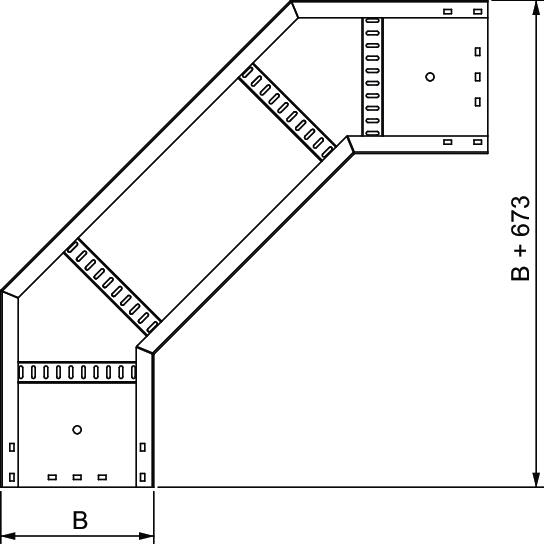

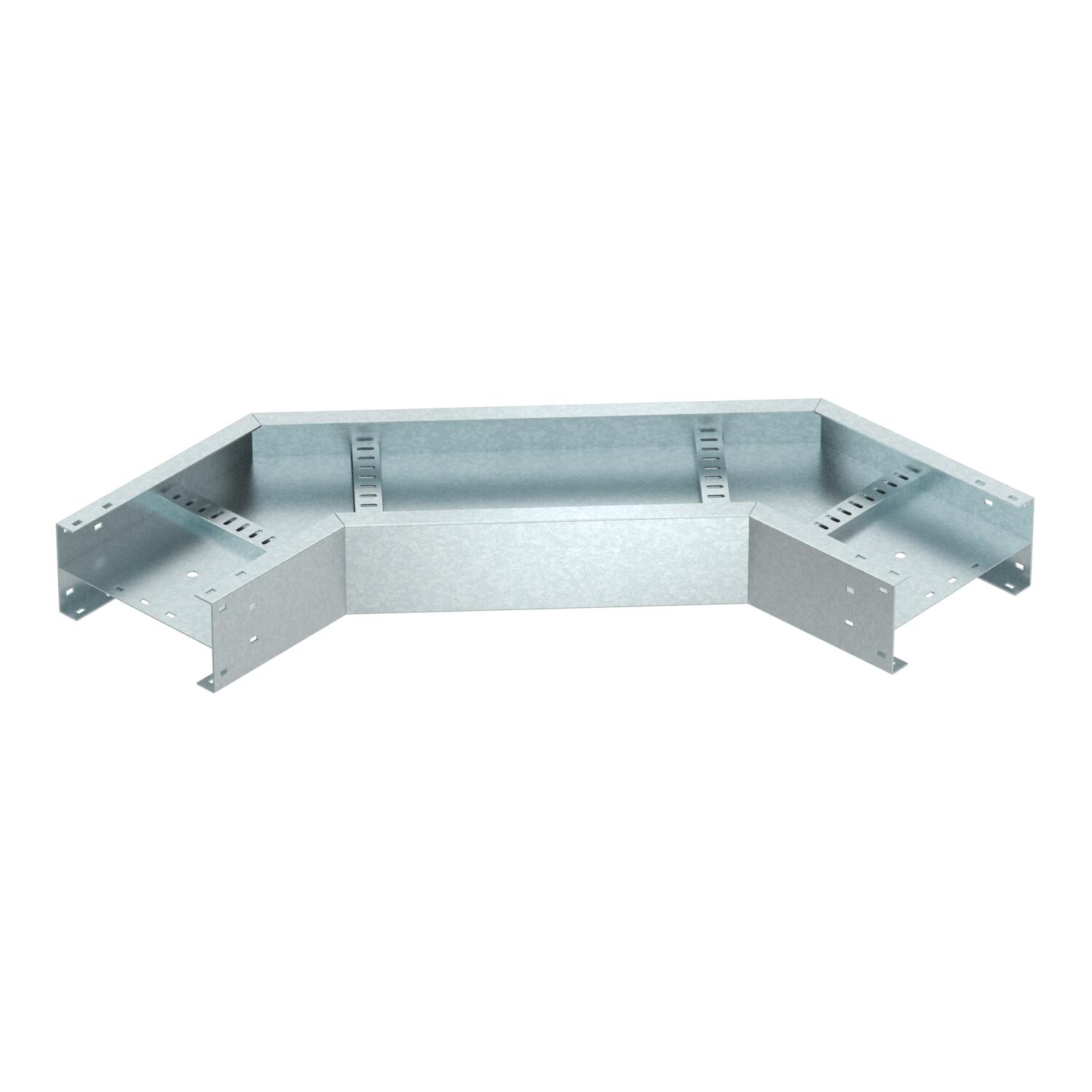

90° bend, horizontal, for all TS150 cable ladder types of 150 mm side height.
Accessory radius = 450 mm.

Technical data

All types

All types

Types	Width	Rail thickness	Item no.	SSU
TS150 300 HDG	300 mm	2.5 mm	6906033	1
TS150 450 HDG	450 mm	2.5 mm	6906037	1
TS150 600 HDG	600 mm	2.5 mm	6906041	1
TS150 900 HDG	900 mm	2.5 mm	6906045	1
