90° bend SSP100 FT

Item no. 6904703 | EAN 4012196073658

Item no. / Types

Width

Rail thickness	2 mm

Product description

Product description

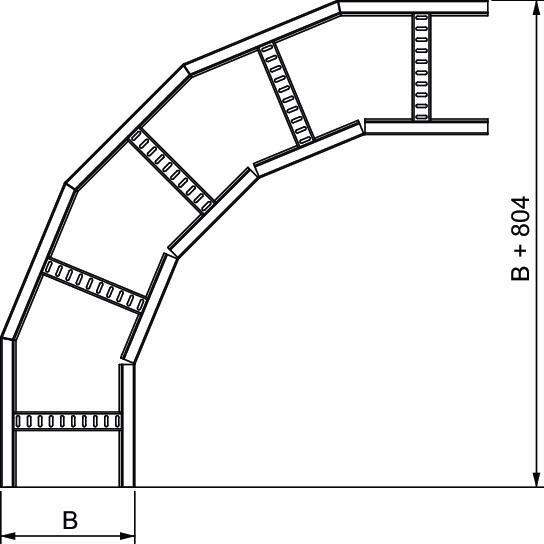

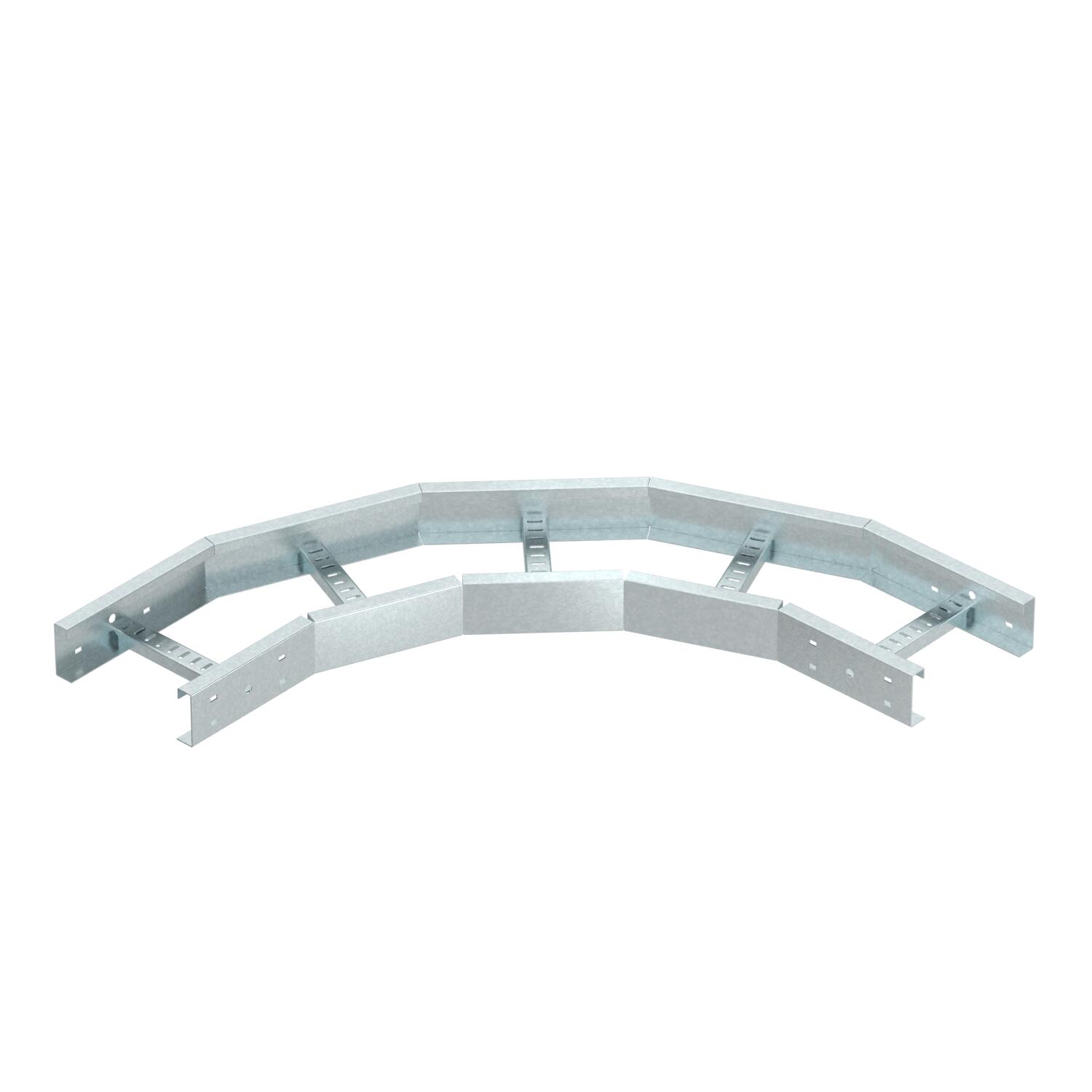

90° bend, horizontal, for all SSP100 cable ladder types of 100 mm side height.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	1004x1004x10
Height	100 mm

Material	Steel
Rail thickness	2 mm
Surface	Hot-dip galvanised
Width	200 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
SSP100 200 HDG	200 mm	2 mm	6904703	1
SSP100 300 HDG	300 mm	2 mm	6904707	1
SSP100 400 HDG	400 mm	2 mm	6904711	1
SSP100 500 HDG	500 mm	2 mm	6904715	1
SSP100 600 HDG	600 mm	2 mm	6904719	1
SSP100 800 HDG	800 mm	2 mm	6904723	1
SSP100 1000 HDG	1000 mm	2 mm	6904727	1
